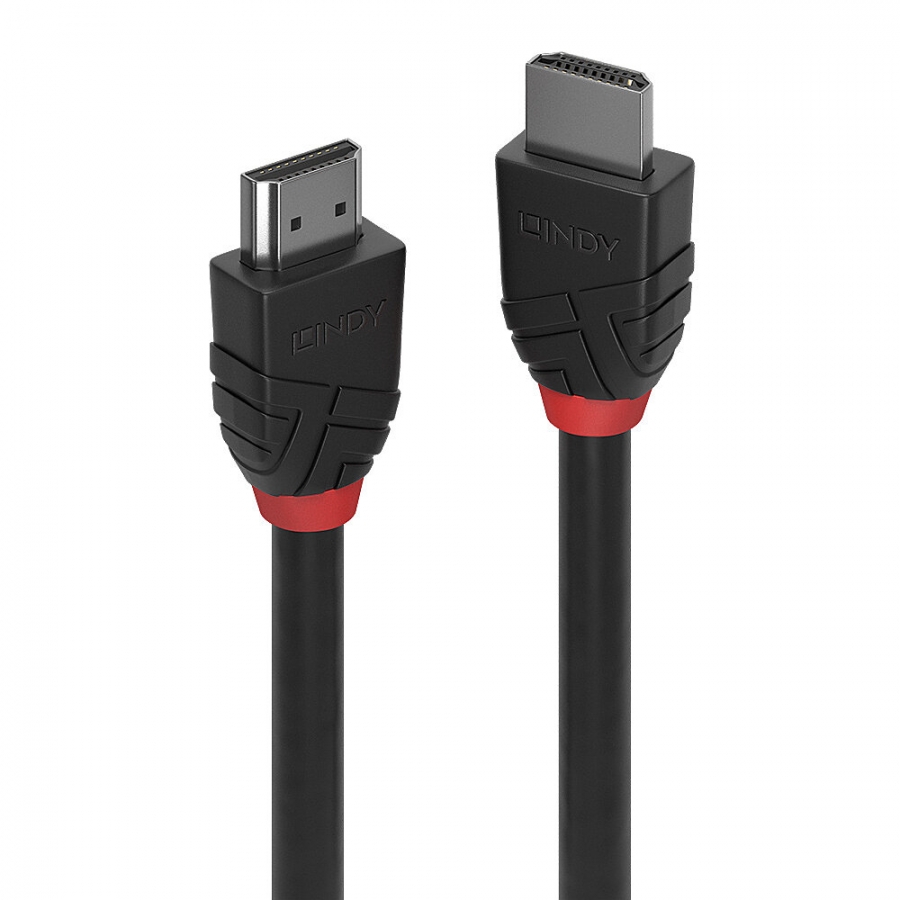

Lindy 3m 8k60Hz HDMI Cable, Black Line

Lindy

LIN36773

Jauns

Connectors

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Male
  • Housing material: PVC
  • Connector plating: Nickel Plating
  • Pin construction: Copper Alloy
  • Pin Plating: Gold Plated
  • Dimensions (WxDxH): 20 x 34.2 x 10.9mm (0.79 x 1.35 x 0.43in)



Cable Construction

  • Length: 3m (9.84ft)
  • Standard: Ultra High Speed HDMI
  • Colour: Black
  • Type: Round
  • Jacket diameter: 6mm (0.24in)
  • Jacket material: PVC
  • Conductor material: Copper Coated Steel
  • Conductor gauge: 30AWG
  • Shielding: Aluminum Foil



Technical Information

  • Supported bandwidth: 48Gbps
  • Maximum resolution: 7680x4320@60Hz 4:4:4,10bit
  • Nominal attenuation:
    • 35GHz>-5.5dB(HBR1)
    • 2.7GHz>-8.5dB(HBR2)
    • 4.05GHz>-11.0dB(HBR3)
  • Minimum bend radius: 70mm
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)



Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Product Compliance: RoHS &  REACH UL



Purchasing Information

  • No.: 36773
  • EAN: 4002888367721



This product is also available in other lenghts

  • 36770 - 0.5m (1.64ft)
  • 36771 - 1m (3.28ft)
  • 36772 - 2m (6.56ft)
  • 36773 - 3m (9.84ft)
  • 36774 - 5m (16.44ft)
