Level One LevelOne CCTV 4-Kanal Fix Out H.264 IR 4xCam inkl.

LEVEL ONE

DSK-4001

Jauns

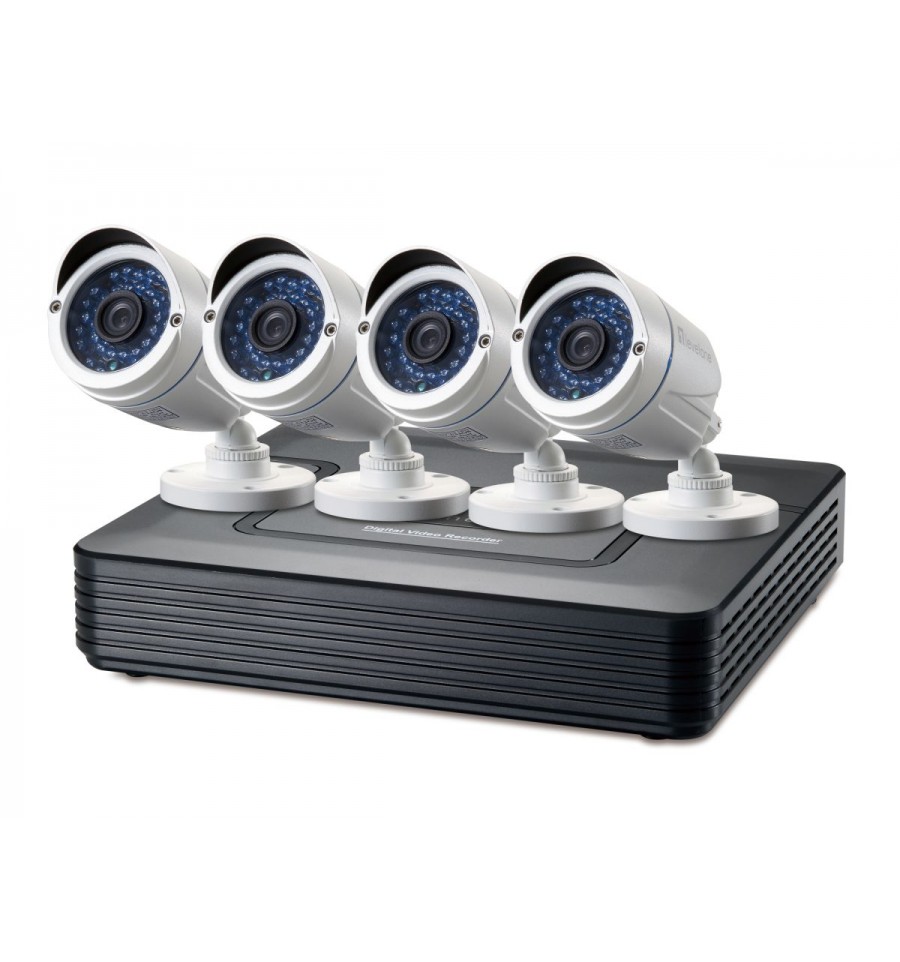

DSK-4001, 4-Channel CCTV Surveillance Kit

Model Number
DSK-4001
SKU
53150103301
  • 2-Megapixel high-definition resolution
  • One 3.5 disk slot supports disk capacity of up to 6TB
  • Built-in infrared LEDs for night viewing up to 30m
  • Compatible with HDTVI, AHD, HDCVI and CVBS analog cameras
  • 4 x channels Analog Video input
  • Supports iPhone/Android phone remote viewing over the Internet
  • H.264 compression for efficient data transfer and storage
  • Built-in USB port for backup, support mouse
  • Weatherproof IP66-rated housing
  • Supports VGA, HDMI output

The LevelOne 4-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10°C to 55°C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.

Other
Approval and complianceCE/FCC,
Camera Waterproof IP66
Supported browsersIE 9 above
System specifications
Battery capacity (mAh)0.006
Battery capacity (Wh)0.66
Battery voltage3
Embedded systemLinux
Angle of View (°)96
Audio formatG.711A
Bandwidth32 Kbps to 4 Mbps
Hard drive capacityUp to 6 TB capacity for each disk
Image sensor1/3" 2-MP Progressive Scan CMOS
IndicatorsPower
H.D.D.
LAN
IR range30 Meter
Lens3.6 mm,M12
Minimum illumination (lux)0.5
ResolutionDVR: 4*1080N;4*720P;4*960H
Camera:2-MP
Shutter time1/50~1/100,000s
No. of supported hard drive1
Storage capacity6TB
StandardsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
Number of video channel4-ch

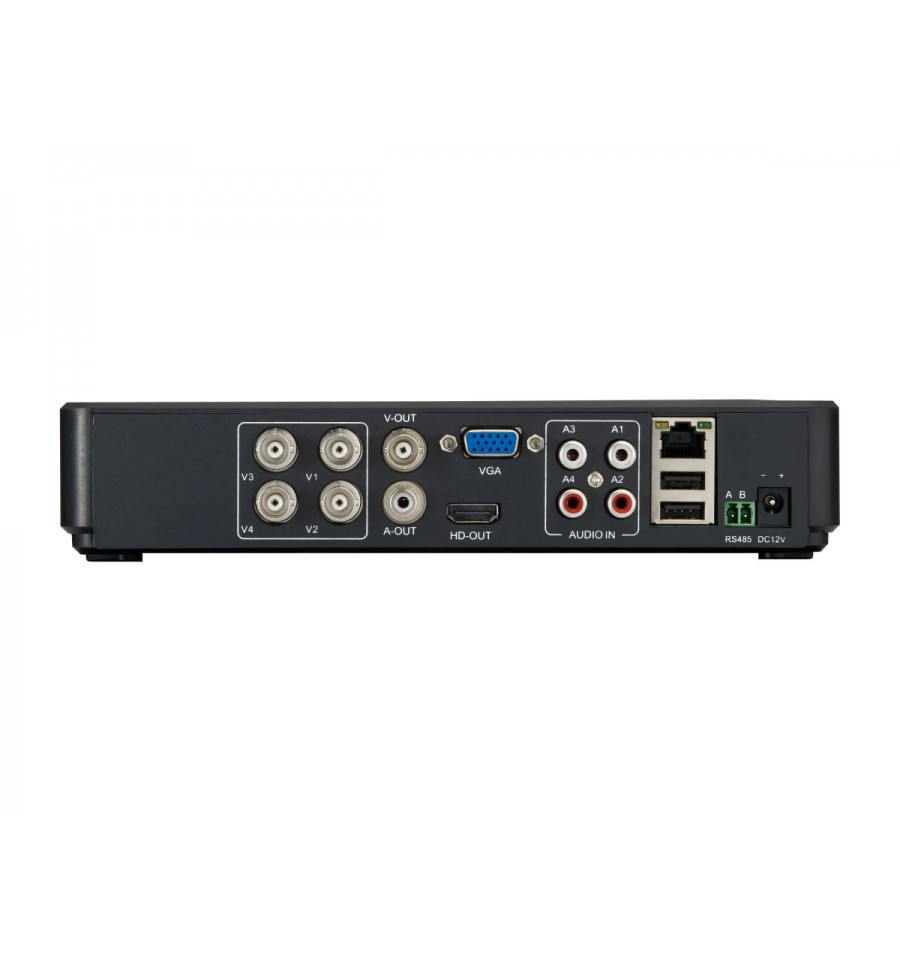

Port Configuration4* BNC, 1*Power, 1* RJ-45, 1*HDMI
Features
FeaturesSupport 4-in-1 AHD/TVI/CVI/CVBS signals
Physical Specifications
Product weight (kg)1.5
Default
ColorBlack
EAN4015867227862
Model NumberDSK-4001
Package contentsDSK-4001

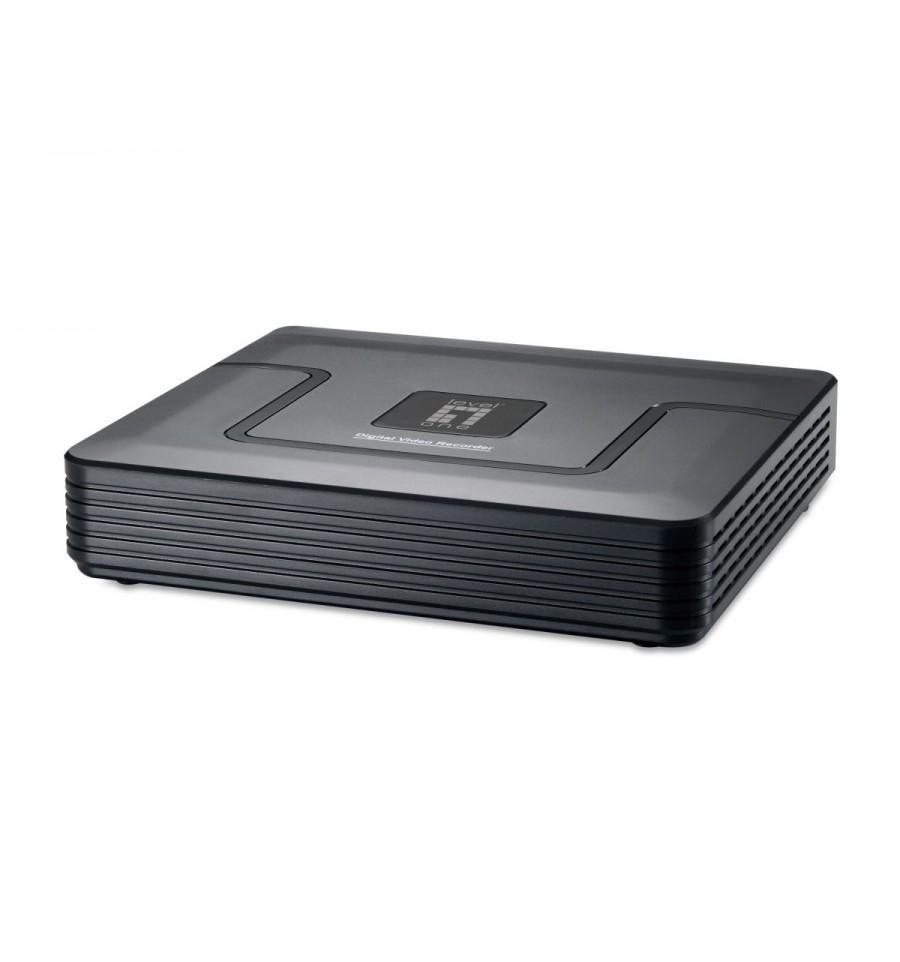

4-Channel DVR

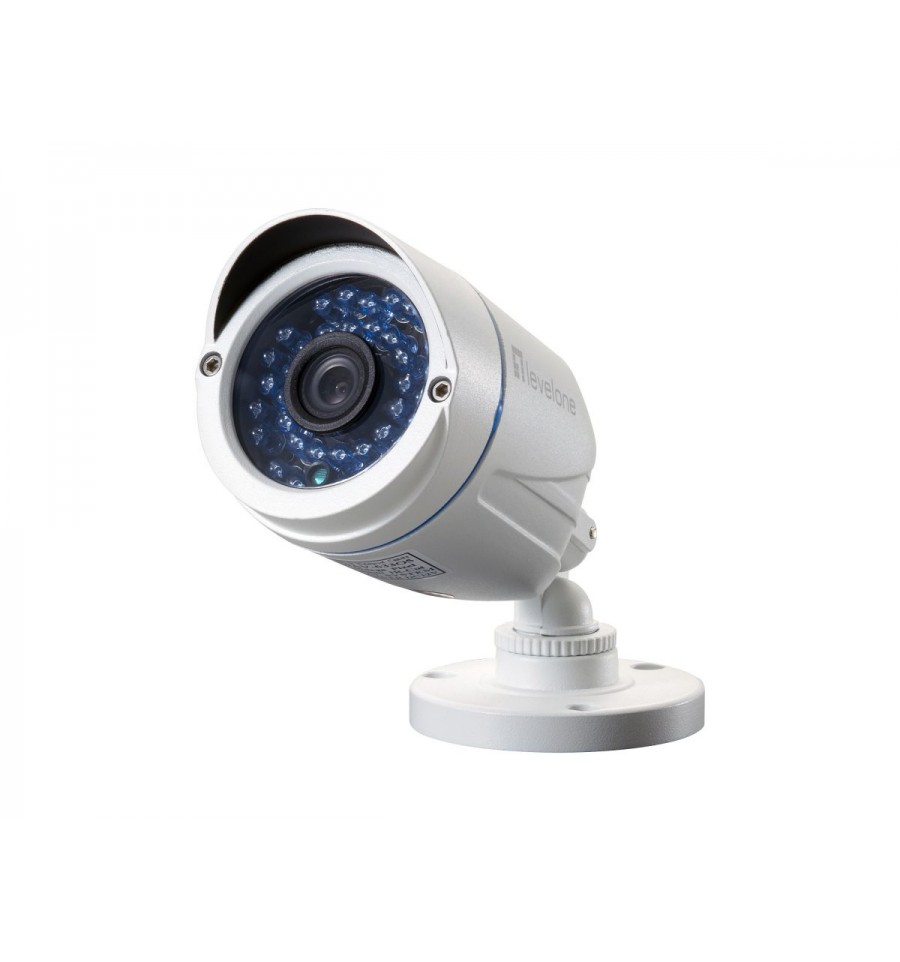

Camera (x4)
18m BNC Cables (x4)
Power adapter
Power Splitter Cable
Ressource CD
Quick Installation Guide
Akeneo
Dimensions (W x D x H)235 x 225 x 45 mm
