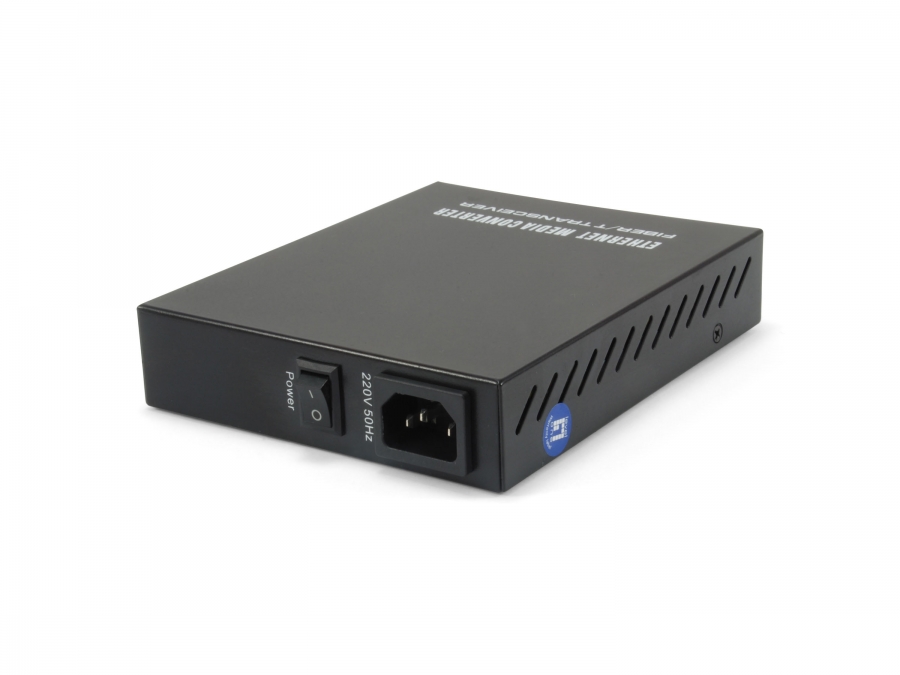

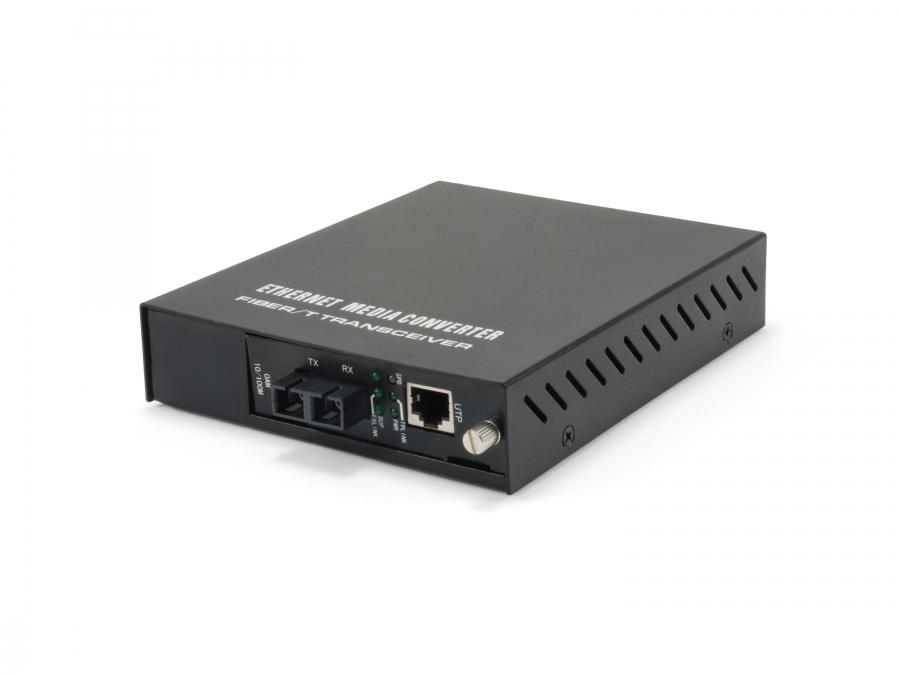

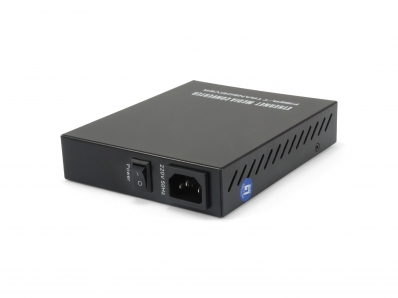

Level One LevelOne Konverter FVM-1220 10/100TX>100FX 20km

Kods FVM-1220

Condition: Jauns

Vairāk informācijas

FVM-1220 is remote Managed Fast Ethernet fiber media converter with OAM functions developed by our company. It can convert Ethernet signal between 10/100Base-Tx and 100Base-FX, It supports both half-duplex and full-duplex operations and a variety of fiber options. It is double fiber, single mode, 20km media converter.Remote devices can be managed by fiber-connected OAM media converter or OAM switch when deployed as a stand-alone solution. It incorporates an easy to use Web user interface for operation, administration and maintenance, both locally and remotely. By offering IEEE802.3ah OAM compliance, this converter can be linked to any IEEE802.3ah compliant fiber switch and support loop back and dying gasp functions. All functions of this converter and the remotely connected converter can be configured and monitored via Web management, including bandwidth control, duplex, speed and VLAN configuration.Key Features - Web-based and SNMP Management - Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Supports VLAN (tag-based, Q-in-Q)

Networking standards	IEEE 802.3, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Y
Jumbo frames	9000
Flow control support	Y
VLAN support	Y
Store-and-forward	Y
Duplex system	Full, Half
Link Loss Carry Forward (LLCF) supported	Y
Link Loss Return (LLR) supported	Y
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Maximum transfer distance	20000 m
Wavelength	1310 nm
Mean time between failures (MTBF)	30000 h
Internal	N
LED indicators	Activity, FDX, Link
Product colour	Black
Country of origin	China
Certification	CE, FCC
Input voltage	100 - 240 V
Output voltage	5 V
Output current	2 A
Web-based management	Y
Width	127 mm
Depth	156 mm
Height	32 mm
Weight	720 g
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Package width	185 mm
Package depth	275 mm
Package height	62 mm
Package volume	8 cm³
Package weight	880 g
Package type	Box
Manual	Y
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Master (outer) case width	180 mm
Master (outer) case length	360 mm
Master (outer) case height	360 mm
Master (outer) case gross weight	17.5 kg
Products per master (outer) case	17 pc(s)
