Level One LevelOne Konverter IEC-4000 10/100TX>100FX SC MM 2km

LEVEL ONE

IEC-4000

Jauns

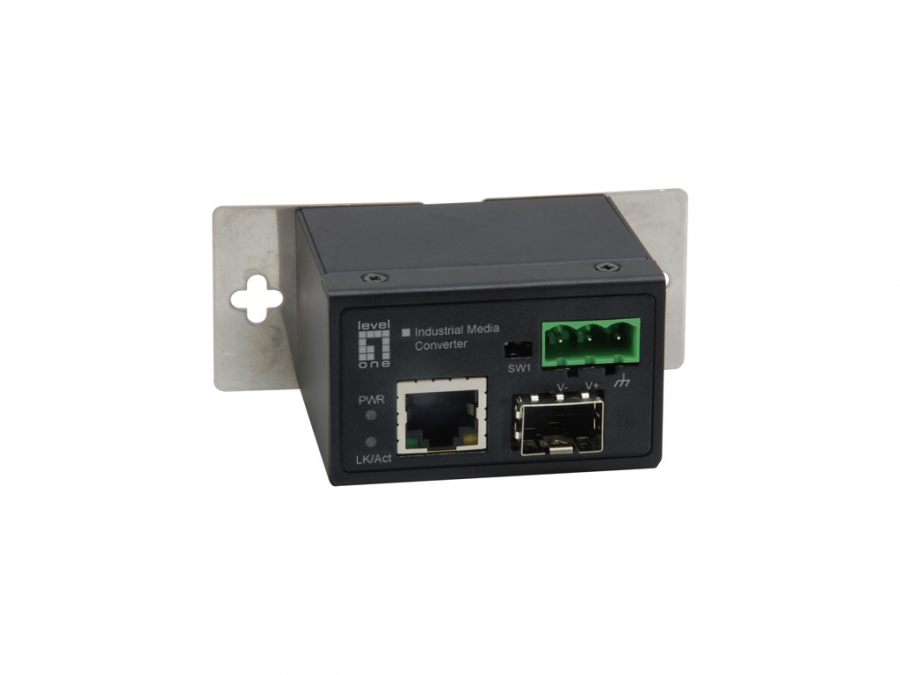

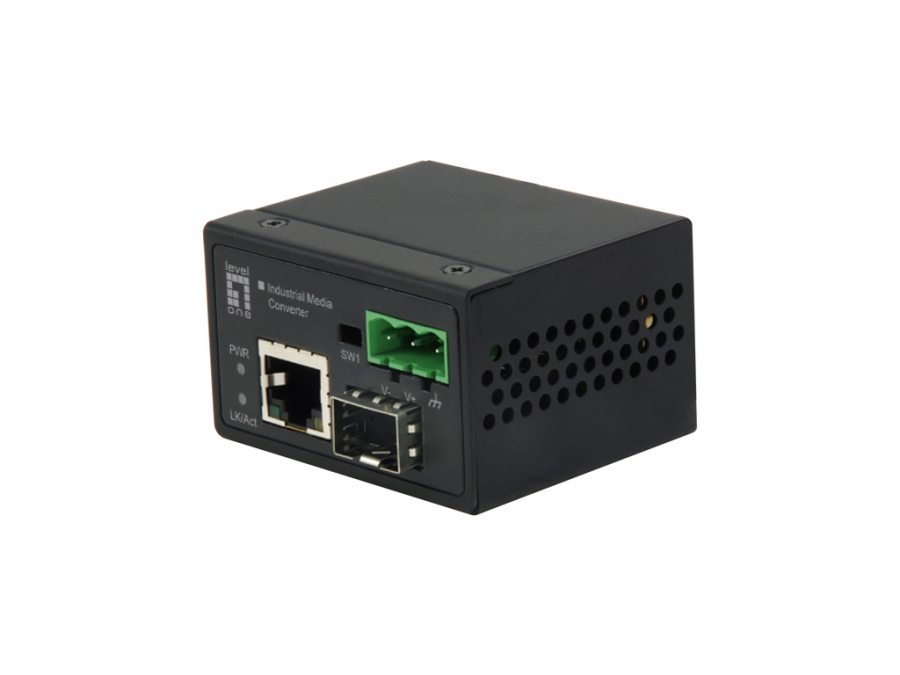

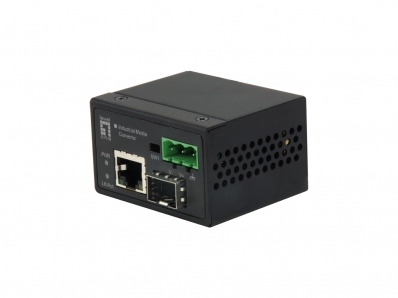

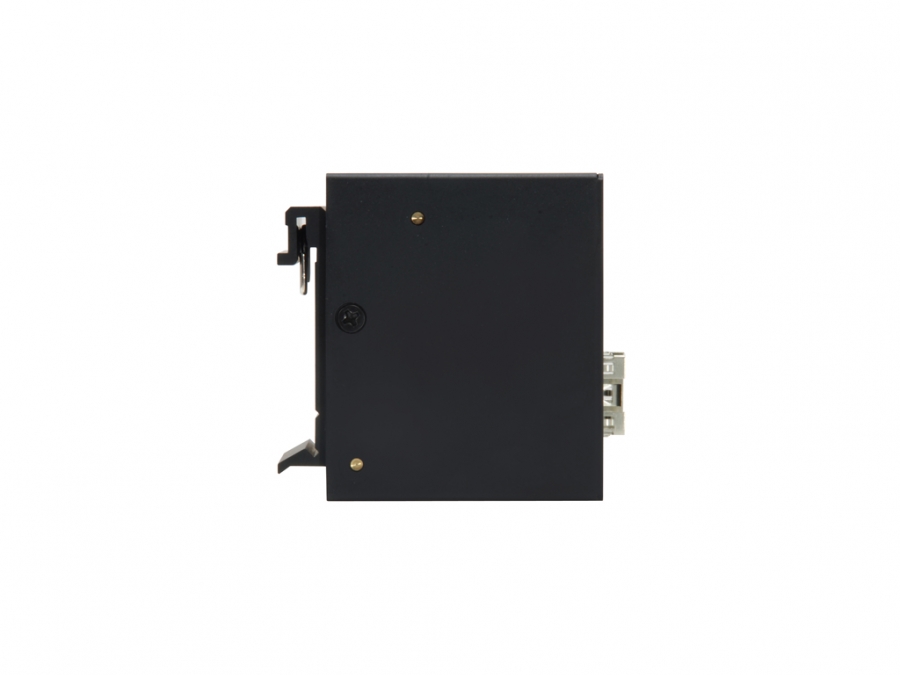

LevelOne IEC-4000 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.10/100BaseT to 100Base-FX- Rugged aluminium case design in a mini size form factor - 18V-36VAC & 12V-60VDC with polarity protection - Link Fault Pass through (LFP) function - Supports switch and pure converter mode - Surge & ESD protection - Maximum noise & interference immunity - 40°C to 75°C (-40°F to 167°F) operating temperature range - DIN-Rail or panel mount installation

Maximum data transfer rate100 Mbit/s
Converter input interface10Base-T, 100Base-TX
Converter output interface100Base-X
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control supportY
Auto MDI/MDI-XY
Auto-negotiationY
Store-and-forwardY
Duplex systemFull, Half
Fiber optic connectorSFP
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
InternalN
LED indicatorsActivity, Link, Power
Product colourBlack
Housing materialAluminium
CertificationFCC Part 15 Subpart B Class A CE EN 55022 Class A FCC Part 15 Subpart B Class A, CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 2 EN61000-4-4 (EFT) Level 2 EN61000-4-5 (Surge) Level 2 EN61000-4-6 (CS) Level 2 EN 61000-4-8 (PFMF) Level 1 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Input voltage12 - 60 V
Power consumption (typical)1.44 W
Width59 mm
Depth49 mm
Height36 mm
Weight90 g
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Package width160 mm
Package depth105 mm
Package height65 mm
Package weight260 g
Package typeBox
Quick installation guideY
Sustainability certificatesRoHS
Harmonized System (HS) code85176990
