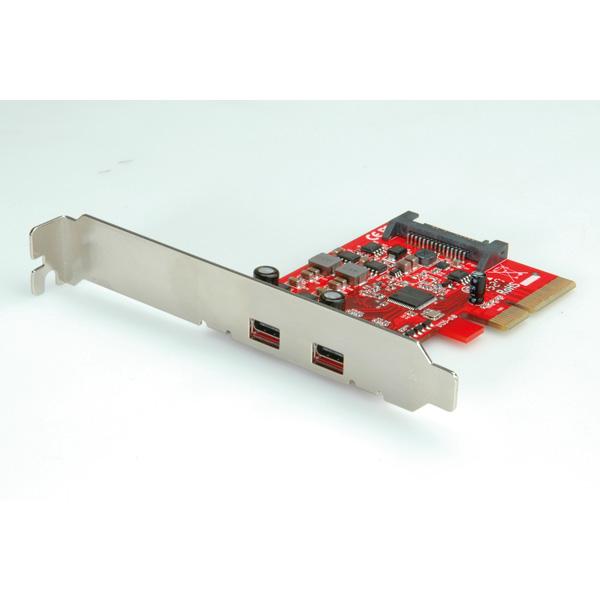

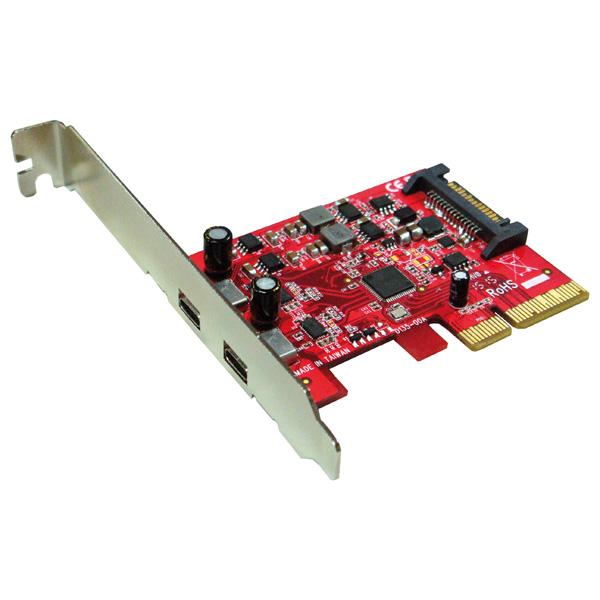

ROLINE PCI-Express x4 Adapter, 2x Ports Type C USB3.1

ROLINE

15.06.2143

Jauns

Expand your PC with two SuperSpeed+ USB 3.1 ports.

  • USB3.1 PCIe x4 Lane Host Adapter
  • USB 3.1 offers Super Speed+ data transfer rates of up to 10 Gbit/s
  • Connectors: 2x USB 3.1 Type C downstream connectors on board
  • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) S...

More details

Expand your PC with two SuperSpeed+ USB 3.1 ports.

  • USB3.1 PCIe x4 Lane Host Adapter
  • USB 3.1 offers Super Speed+ data transfer rates of up to 10 Gbit/s
  • Connectors: 2x USB 3.1 Type C downstream connectors on board
  • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
  • Compliant with USB Attached SCSI Protocol Specification 1.0
  • Compliant with PCI Express Specification 3.0
  • Supports 5V3A USB bus power each USB 3.1 Type C port
  • Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard
  • Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
  • Low Profile PCIe Form Factor
  • Low profile PCI form factor (additional low profile PCI bracket included)
  • Built-in 15-pin SATA power connector for the power supply of the USB ports
  • Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
  • Supports Windows 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003, Mac OS X platform
  • Contents: Adapter, low profile bracket, driver CD, manual
BUS systemPCI Express
Connection ports2x USB 3.1 Type C, external
Content of deliveryAdapter, low profile bracket, driver CD, manual
Conveyance goodNo
Data transfer rate10 Gbit/s
Installation Guide/ManualYes
InterfaceUSB 3.1
ManufacturerROLINE
Manufacturer Item No.15.06.2143
Mounting heightFull profile
Operating SystemWindows 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003, Mac OS X
Product groupI/O Card
Product typePCI-Express Adapter
USB 3.0 InterfaceYes

PCI Express
