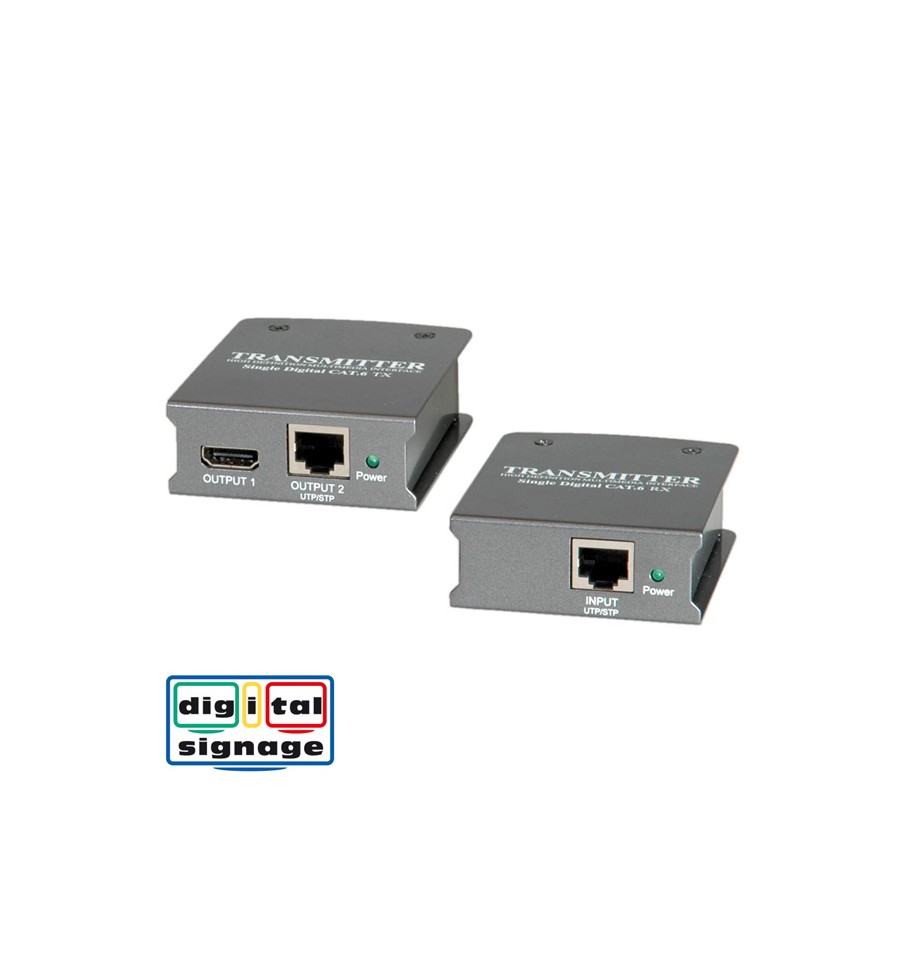

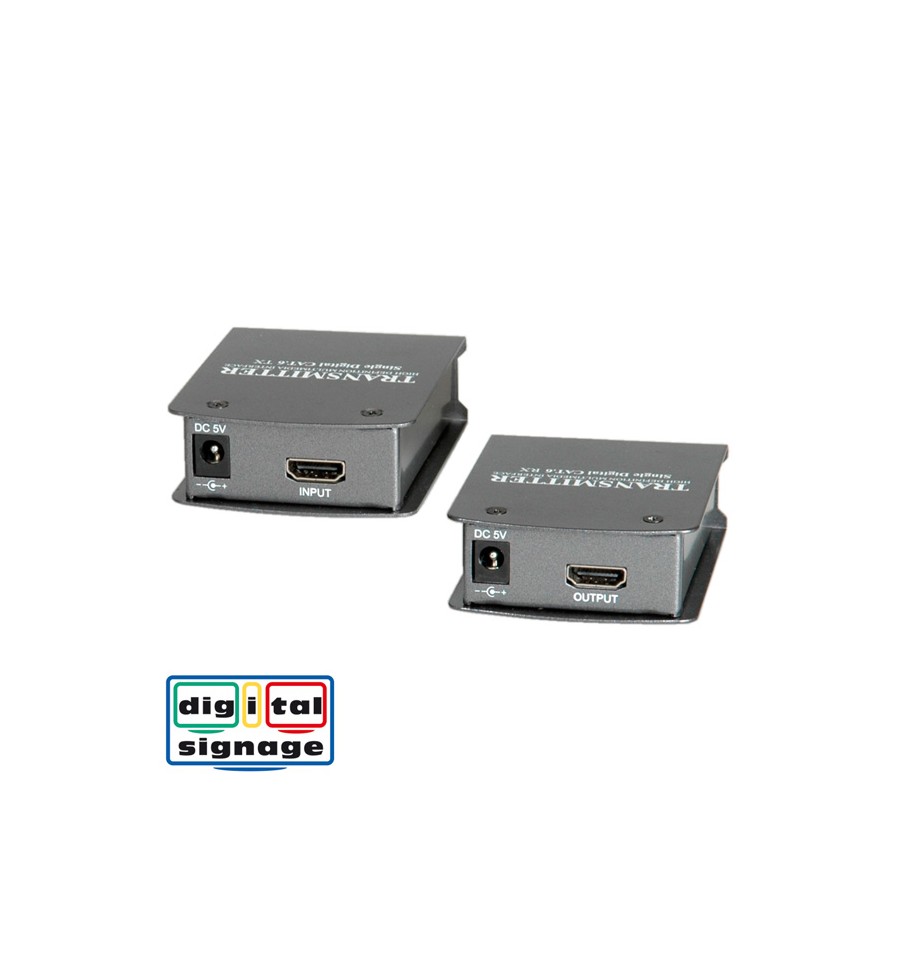

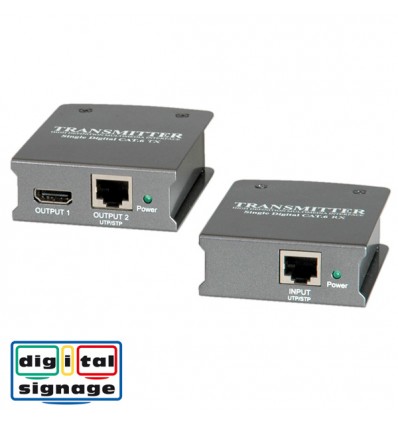

ROLINE HDMI Extender over Twisted Pair, Cat.6, 50m

ROLINE

14.01.3461

Jauns

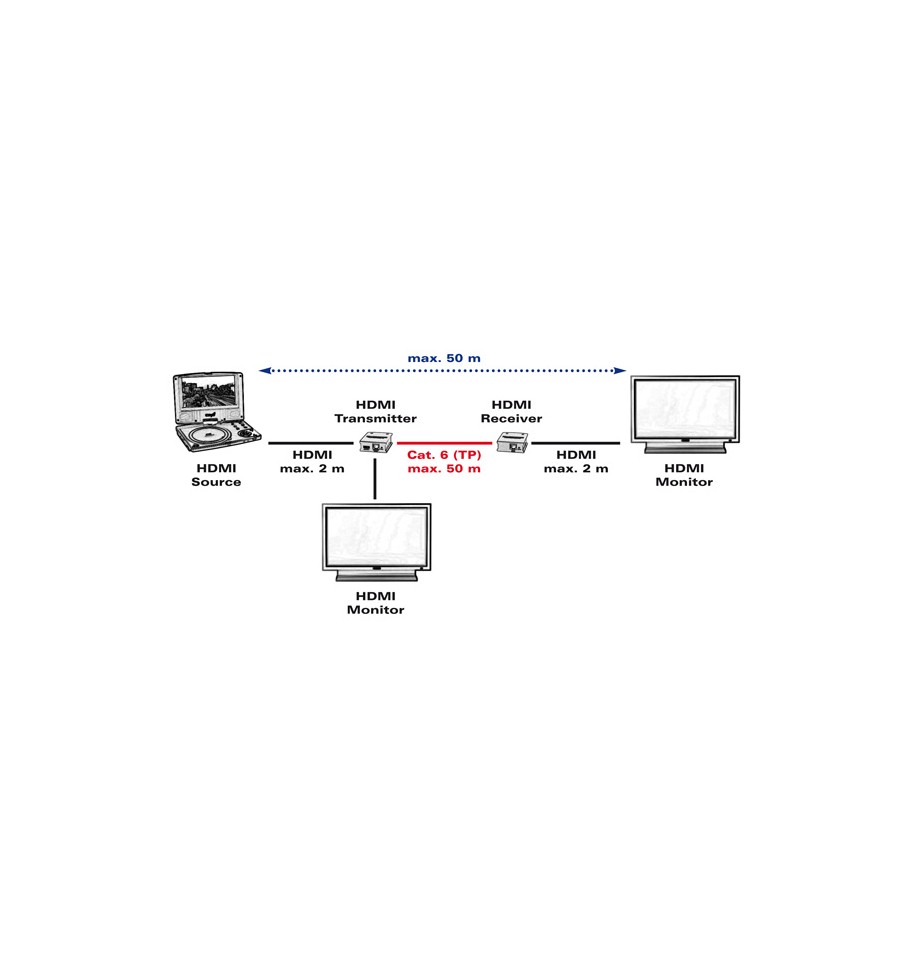

  • The transmission distance of the HDMI signal can be extended up to 50 meters by using only one Cat.6 cable
  • Additional HDMI port on transmitter to connect a local display
  • Max. resolution (nominal) over 50 meters: 1920 x 1080, 1080p
  • Works with HDMI switch, HDMI splitter and all kinds of HDMI/HDCP source and output displays
  • No software installation required...

More details

  • The transmission distance of the HDMI signal can be extended up to 50 meters by using only one Cat.6 cable
  • Additional HDMI port on transmitter to connect a local display
  • Max. resolution (nominal) over 50 meters: 1920 x 1080, 1080p
  • Works with HDMI switch, HDMI splitter and all kinds of HDMI/HDCP source and output displays
  • No software installation required
  • Metal housing
  • Power supply included

  • Contents: Transmitter (1x RJ-45 F, 2x HDMI F), Receiver (1x RJ-45 F, 1x HDMI F), 2x power supply (for transmitter), manual
Audio InputHDMI
Audio OutputHDMI
Content of deliveryLocal Unit (2x RJ-45 F, HDMI F), Remote Unit (2x RJ-45 F, HDMI F), 1x power supply, manual
Conveyance goodNo
Dimensions (HxWxD)25 x 77 x 64 mm
ManufacturerROLINE
Manufacturer Item No.14.01.3461
Max. resolution1.920 x 1.080
Power supply outputDC 5V; 1A
Power supply unit2
Product groupSplitters and selectors
Technical particularityExtends a HDMI signal up to 50 m
Video inputHDMI
Video outputHDMI
