ROLINE HDMI Extender over Twisted Pair, Cat.5/6, chainable, 100 m

ROLINE

14.01.3468

Jauns

The transmission distance of the HDMI signal can be extended up to 100 m by using one Cat.5e or Cat.6 cable.

  • Easily connect the transmitter and the receiver unit with a twisted pair cable of up to 100 m length
  • Max. resolution (nominal) over 100m: 1920x1080, 1080p
  • Supports uncompressed HDMI signal
  • Supports CEC pass-through
  • Supports uncompressed audio stereo
  • External infrared emitters - allow using the remote control of the source device
  • Metal housing
  • Power supply included in content of delivery

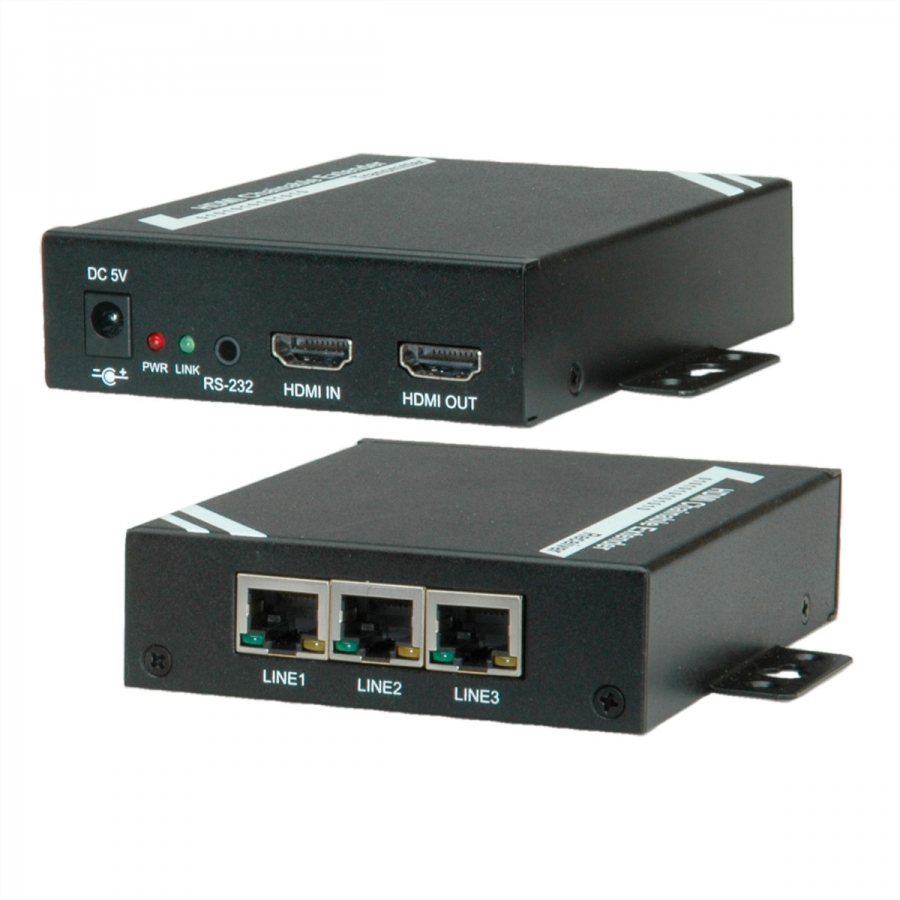

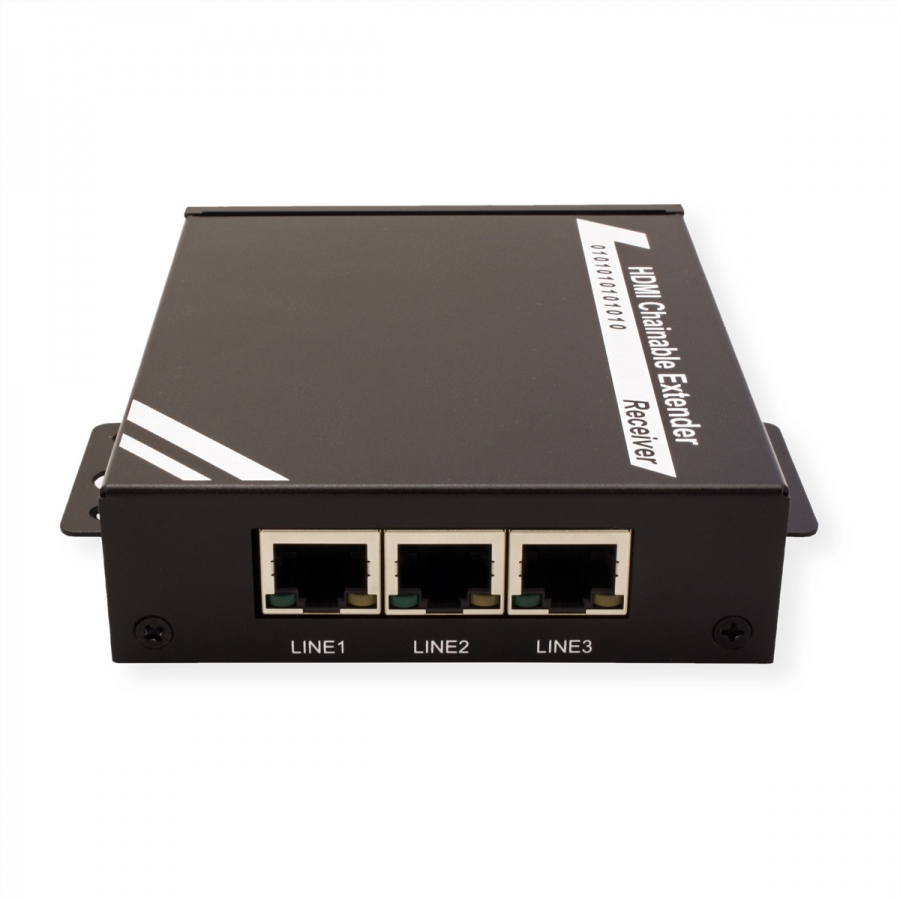

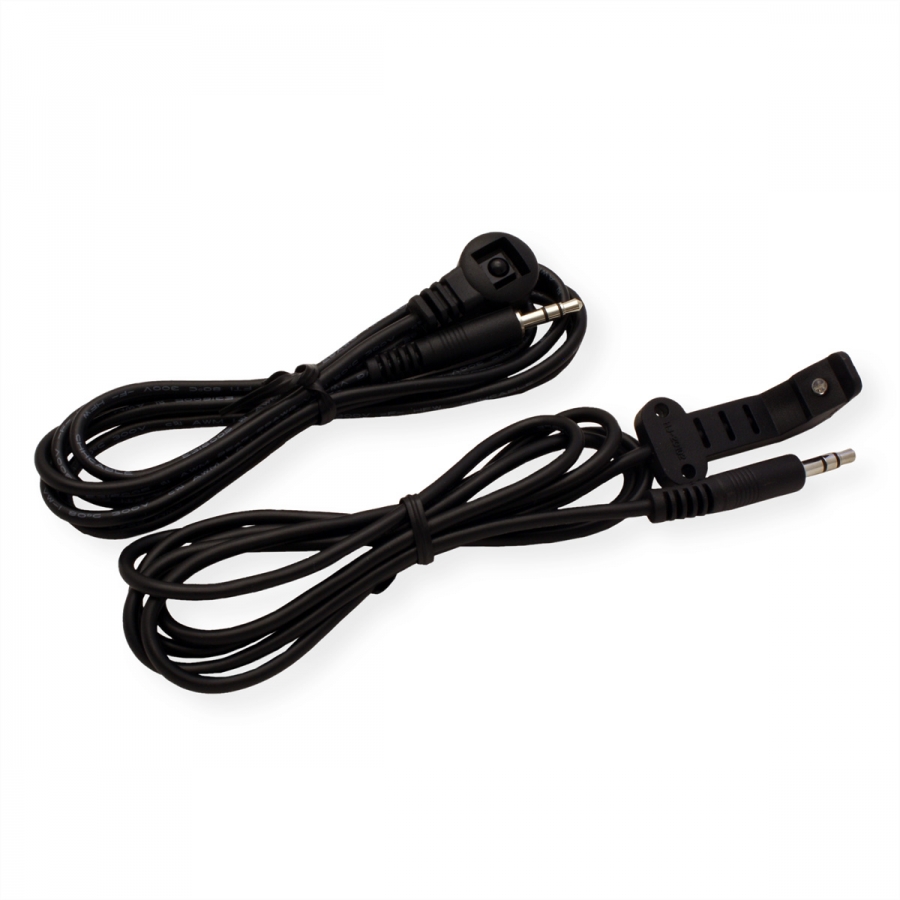

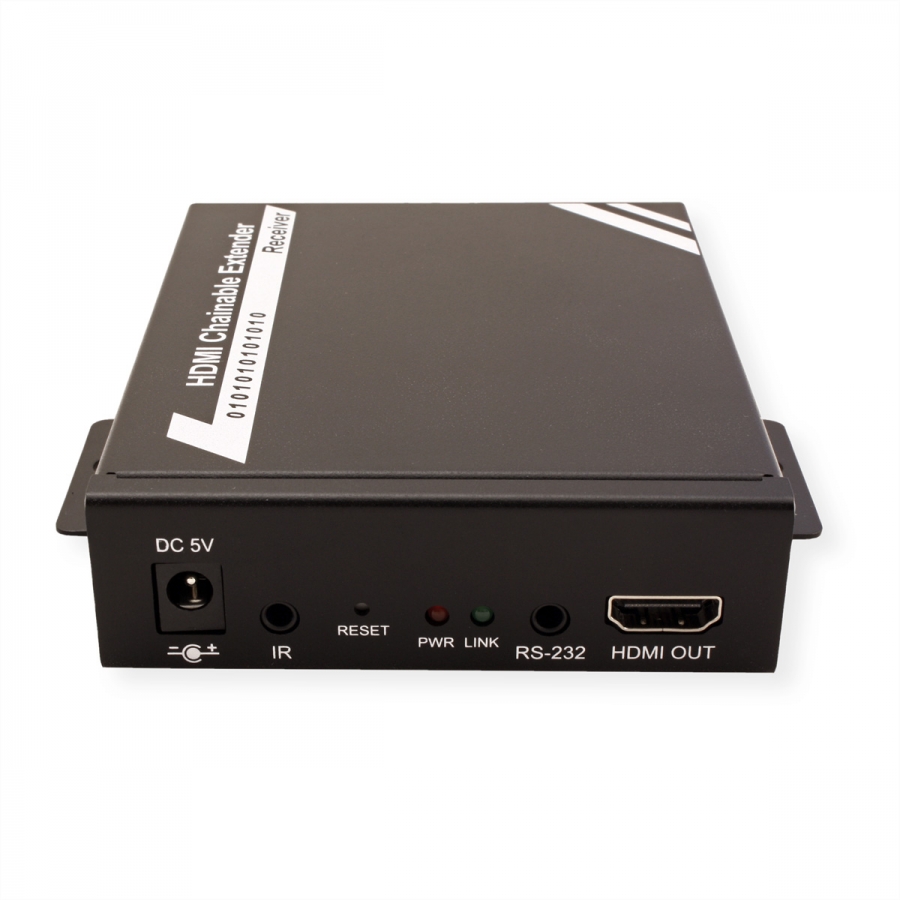

  • Contents: Transmitter (1x RJ-45 F, 2x HDMI F), receiver (3x RJ-45 F, 1x HDMI F), infrared extender trasnsmitter, infrared extender receiver, 2x power supply, 2x cables IR (1.1m), 2x serial cables (3.5mm/DB9F, 1.1m), manual



ManufacturerROLINE
Product groupSplitters and selectors
Product typeHDMI Extender
Colourblack
Scope of deliveryTransmitter (1x RJ-45 F, 2x HDMI F), receiver (3x RJ-45 F, 1
InterfaceHDMI
Max. distance100 m
Video inputHDMI
Audio inputHDMI
Video outputHDMI
Audio outputHDMI
Max. resolution (nom.)1.920 x 1.080
Max. resolution1920 x 1080 @60Hz (2K, Full HD)
Dimensions (HxWxD)28 x 115 x 91 mm
Power supply unit2
Technical particularityExternal infrared emitters allow using the remote control of
Accessories: rechargeable battery optionalnot applicable
Accessories: Rechargeable battery/battery requirednot applicable
height28 mm
width115 mm
depth91 mm
Weight1066.94 g
Current catalog editionC21-06.05
