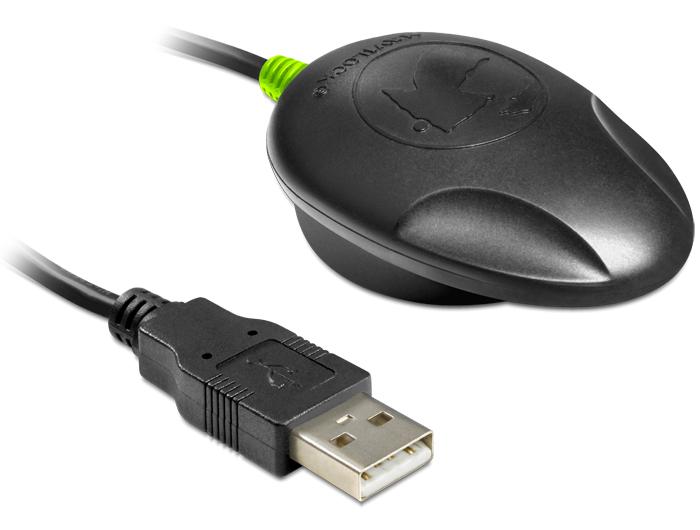

Navilock NL-602U USB 2.0 GPS Receiver u-blox 6

Description:
The USB 2.0 GPS Receiver based on u-blox 6 SuperSense® chipset has a built-in antenna for high sensitivity.
You can use this GPS Receiver with a notebook and a suitable routing software for navigation.

Specification:
• u-blox 6 GPS SuperSense® high performance chipset
• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports AGPS, WAAS, EGNOS and MSAS
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• USB specification 2.0
• Auto Baud Rate up to 115200
• Update Rate: up to 5 Hz
• Sensibility max. –162dBm
• IPX6 protection class
• Magnatic, non-slip on the bottom
• LED-indicator for GPS-status
• Operating temperature: -20 °C to +60 °C
• Cold start in about 25 sec.
• Hot start in about 1 sec.
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Dimension (LxWxH): 65 mm x 45 mm x 22 mm
• Cable lenght: 1.50 m

System requirements:
• Windows 98SE/ME/2000/XP/Vista/7/8/8.1/10, Linux ex Kernel 2.6
• PC or Notebook with a free USB Port

Package content:
• USB 2.0 Receiver
• Driver CD
• User manual on CD ROM
