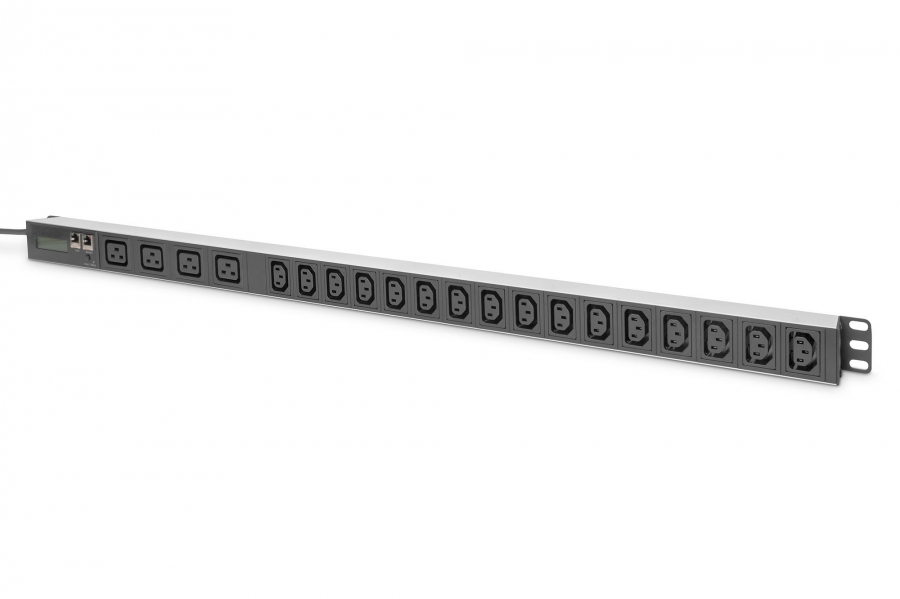

Diverse GUDE Smart PDU, 0U, Input Monitored, Input 1x16A, Output 16 x C13, 4 x C19

Manufacturer: DIVERSE

Reference 8311-15

Condition: New

More info

Metered PDU, 16 A, 4 x IEC C19, 16 x IEC C13,

Power distribution with remote monitoring capabilities in a compact design for IT network and server racks.

Monitors various parameters with set thresholds and alarm tools.
Various measurements allow early detection of potential failures.
Precise voltage and current measurement with tolerances of +/-1% ensure reliable measurement results.
Monitoring of environmental conditions (e.g. temperature and humidity) with advance warning and alarm function.
Easy and fast installation in the rack
Open data interface (e.g. SNMP, Modbus) for easy integration in management systems

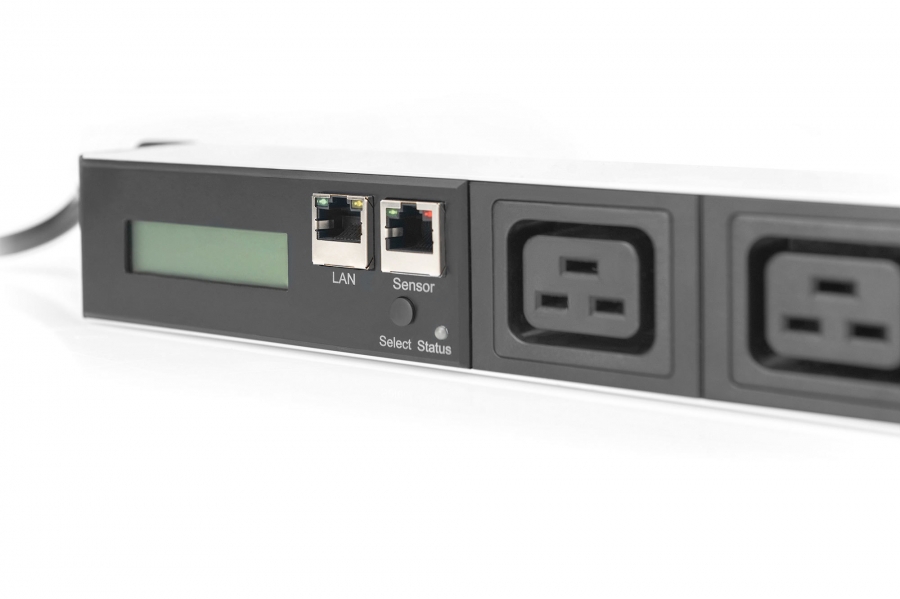

Clear local LCD display shows measured values and status of the PDU, for quick on-site analysis.
Mass FW and configuration software for easy and fast installation and maintenance

The Smart PDU measures the electrical parameters per phase. Adjustable threshold values with alarming increase the availability of the connected loads. An integrated display shows measured values and the status of the PDU. Additional external sensors (temperature, humidity and air pressure) can be connected to the communication interface. The PDU can be permanently installed in racks or other housing systems with corresponding receptacles.

Current: 16 A

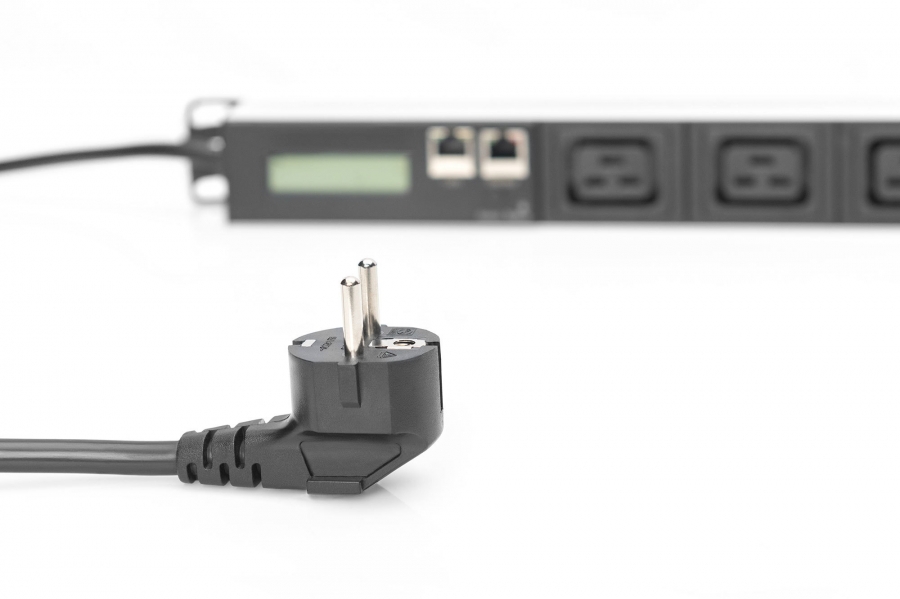

Input Plug: CEE7/7
Installation: Rack 0U, Desktop
Metering: PDU Metering

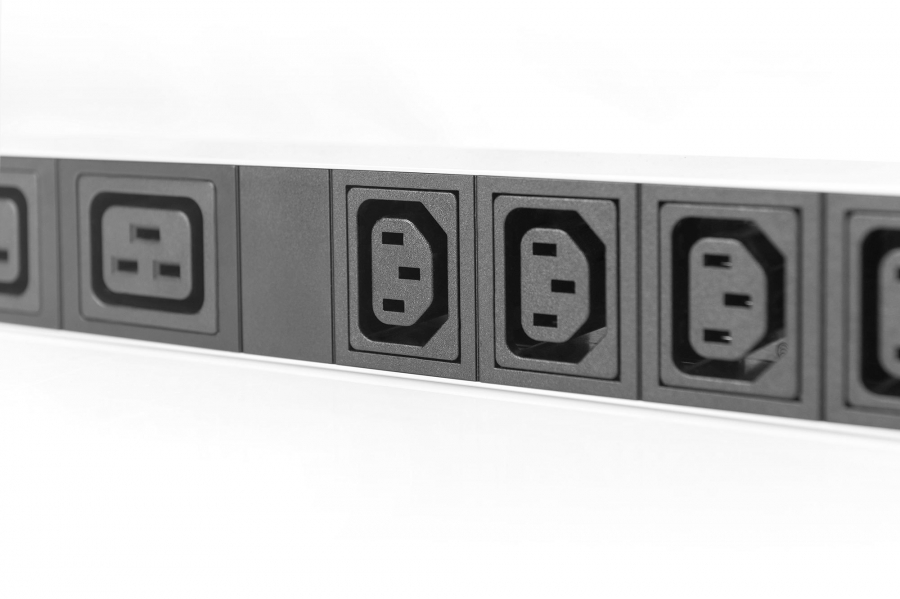

Outlets: IEC 60320 C13, IEC 60320 C19
Phase: 1ph
Power: 3,6 kVA
Volts: 230 V
Input monitoring: current (A) , voltage (V), energy (kWh), active, apparent and reactive power (W, VA, Var), frequency (Hz), power factor, phase angle.
User defined thresholds for current per phase
Extensive user-defined alarm management (remote and local)
Sensor ports for connection of external sensors (temperature, humidity, air pressure)
Firmware update of the PDU remotely possible
User management for up to 2 users
Remote connections: 10/100 Mbits Ethernet, IPv4, IPv6
Protocols: HTTP(s), SSL, STARTTLS, Telnet, TCP/IP, SNMP v1/v2/v3, DHCP, SSH, SMTP(s), NTP, Radius, Syslog, Modbus IP
Encryption: TLS1.3
2 energy counters, one counter counts permanently, the other counter is resettable
Input: plug Schuko CEE 7/7 1ph/N/PE 230V / 16A
Output: device sockets IEC60320 16 x C13 (max. 10A per output), 6 x C19 (max. 16A per output)
supply cable: cable cross section 1,5 mm², length: 3m
Dimensions (mm, LxWxH): 950 x 45 x 45
Temperature range (operation / storage) : 0°C ~ 50°C / -20°C ~ 70°C
Humidity range (operation / storage) : 5 - 95% RH / 5 - 95% RH (non-condensing)
Maximum altitude, above sea level (operation / storage) : 0 - 3,000m / 0 - 15,000m

Package content:
1 x Smart PDU
1 x Mounting bracket standard
1 x Quick Start Guide
