Diverse GUDE Temperature- / Humidity- / Airpressure-Sensor for Basic Monitoring System

DIVERSE

7106

New

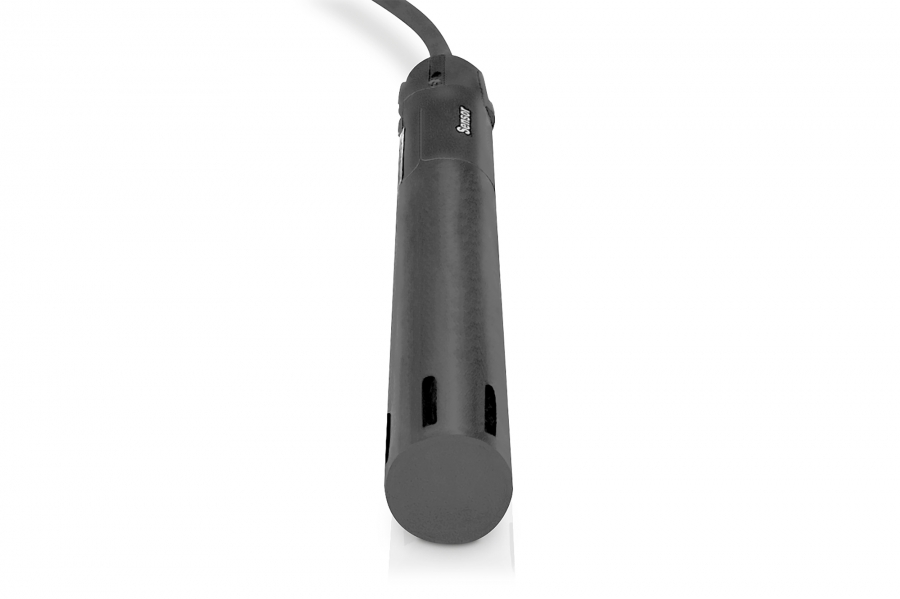

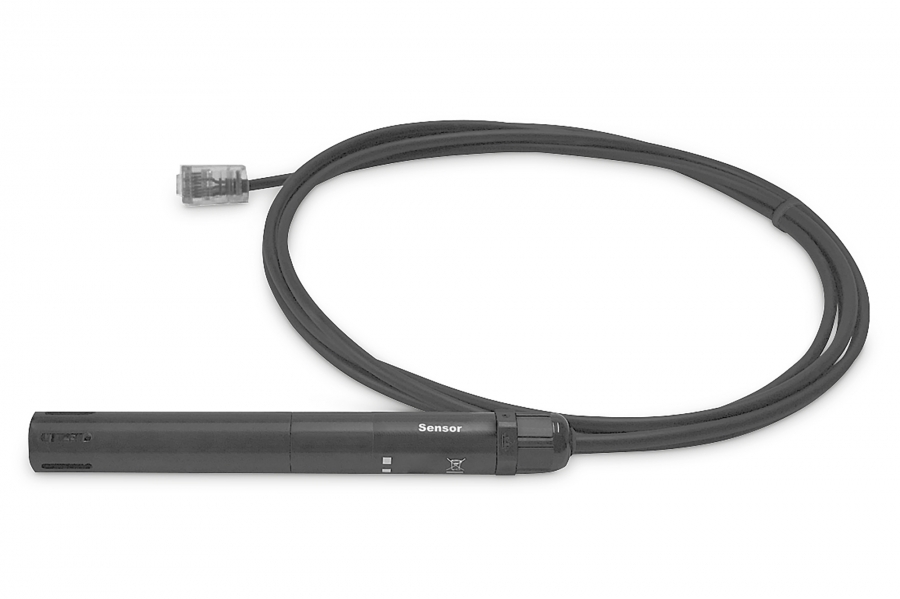

Temperature/ Humidity/ Air Pressure sensor

Temperature / humidity / air pressure sensor with RH45 connection for the GUDE Basic Monitoring System

Measurement of temperature, humidity and air pressure
Measurements are possible even at points that are difficult to access
No external power supply required
RJ45 plug for easy connection
Sensor is detected automatically (Plug and Play)
Connection cable with a length of 2.3 m enables flexible positioning near the installation
Suitable for the GUDE Basic Monitoring System
Highly reliable and stable for long-term use

The 3-way sensor can be used for the GUDE Basic Monitoring System and detects the temperature, humidity and air pressure. Precise measurements are possible even at measuring points that are difficult to access. Power supply is provided directly via the monitoring system, so separate power supply is not required. The connection cable length of 2.3 m enables flexible positioning of the sensor. Configuration of the sensor is not required, the sensor is detected automatically.

Color: black, RAL 9005
Metered Power Distribution Unit (PDU): false
Mounted: false
Plastic sensor pin, length: 132 mm (incl. screws), Diameter: 15 mm
Connection: RJ45 plug
Connection cable: 2.3 m
Measurement accuracy for temperature: ±0.3 °C
Operating temperature: -20 °C to +80 °C
Measurement accuracy for humidity: ±3%
Operating humidity: 0 - 95% (non-condensing)
Measurement range air pressure 300-1100 hPa: -20 °C to +65 °C at +/- 2 hPa (typical) and 0 °C to +65 °C at +/- 1 hPa (typical)
Weight: approx. 80 g
Color: Black

Package content:
1 x Temperature / humidity / pressure sensor for GUDE basic monitoring system

Platums(cm)15
Grums(cm)20
Augstums(cm)1
Svars(kg)0.085
Tilpums(cm3)300
Izcelsmes valstsDE
