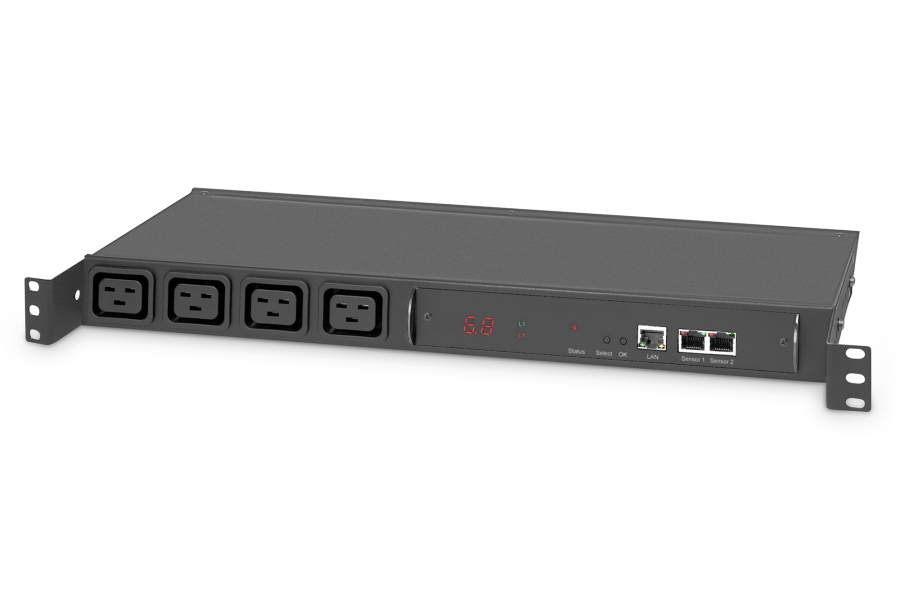

Diverse GUDE Inline Metered PDU, 1U, 1-phase, 16A, 4 x C20, 4 x C19

Manufacturer: DIVERSE

Reference 8341-2

Condition: New

More info

Inline metered PDU, 4 Phases at 16A, 4 x IEC C19 Hotswap, Residual current monitor (RCM)

Inline metered PDU solution with hot swap unit for 4 x 1-phase network cables

Measurement of 4 separate phases
Hot swap drawer enables easy exchange of processor / power adapter
Supports differential current measurement type A
2 energy meters: one continuous meter, one resettable
Easy-to-read LED display shows the total power per phase and the phase status
Monitoring of the rack environment with optional external sensors
19-inch housing for comfortable rack installation (1 rack unit)
Intelligent integration into the central system
Supports HTTP, HTTPS, Email (SSL,STARTTLS), DHCP, Syslog
IPv6 ready, SNMPv1, v2c, v3 (Get/Traps), Radius and Modbus TCP-protocol support

The Inline Metered PDU is a measuring device for easy management of power consumption without the need for new cabling. This enables subsequent real-time power and energy measurement for already existing rack PDUs. Inline measuring devices offer a wide range of measurement features, from total power measurement to estimate the current need and plan extensions in the cabinet all the way to calibrated energy meters that are also suited for billing purposes or precise electronic measuring equipment. Apart from energy consumption, these devices also record many other electrical variables such as active, apparent and reactive power, power factor and phase angle. Uninterrupted power supply to the connected consumers is guaranteed in the process. The device can be accessed and configured via web, SNMP and Telnet interfaces. With the option of connecting sensors, the unit can comprise a complete environment monitoring system to control the temperature and humidity in the racks. The integrated residual current monitoring (RCM) enables early detection of changes in the isolation level of the power supply, thereby preventing power surges or fires.

Measurement of 4 separate phases
Measurement of energy, current, power factor, phase angle, frequency, voltage and active / apparent / reactive power per phase

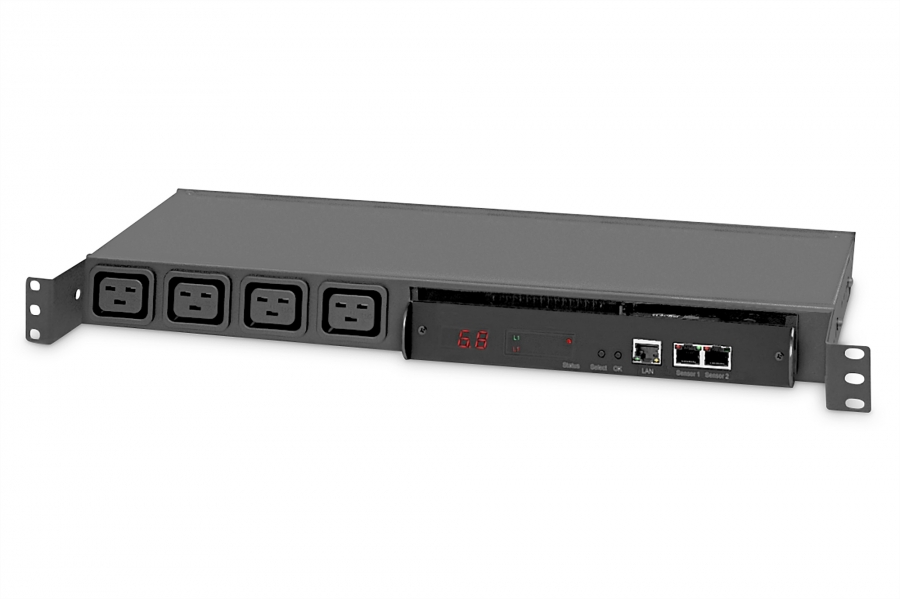

Hot swap drawer enables the exchange of processor / power adapter while maintaining uninterrupted supply to the connected consumers
2 energy meters for each power input, one continuous meter, one resettable
Remote access method: Web interface, HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet
Differential current measurement type A per phase
LED display for total power per phase and phase status
Adjustable brackets enable different installation depths

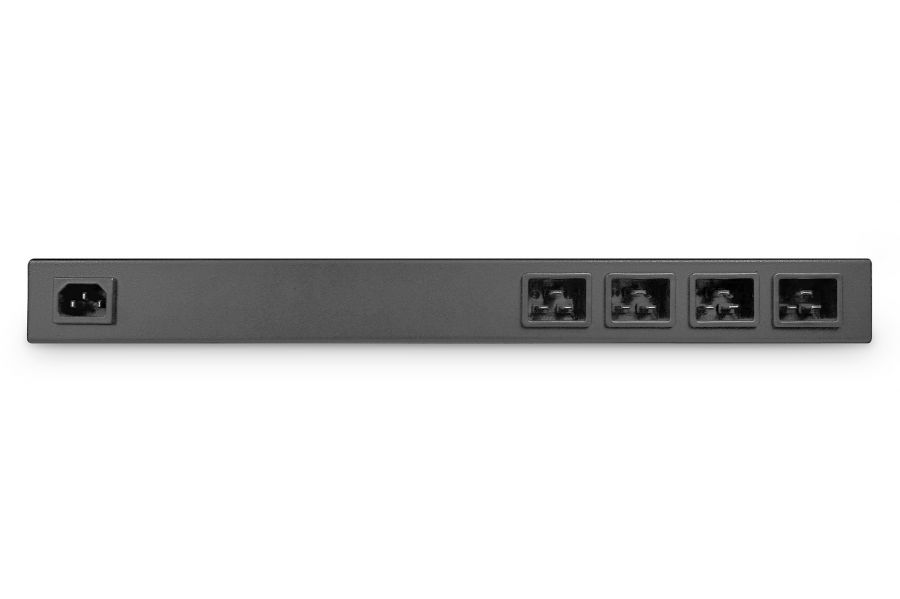

Power supply: 4 x IEC C20, max. 16 A
Load output: 4 x IEC C19, max. 16 A
1 x IEC C14 power supply for separate supply of electronics
1 x RJ45 Ethernet connection (10/100 Mbit/s)
2 x Sensor interfaces (RJ45) for optional sensors (temperature, humidity and air pressure measurement)
Power supply cable: x m
Operating temperature: 0 °C to 50 °C
Storage temperature: -20 to 70 °C
Relative humidity: 0 - 95% (non condensing environment)
Dimensions (L×W×D) (without brackets): 434 × 44 × 214 mm
Dimensions of drawer (L×W×D): 217 × 33 × 109 mm
Weight: 2.9 kg
Color: Black

Package content:
1 x Inline Metered PDU, 1 rack unit, 1-phase, 16A, 4 x C20, 4 x C19
1 x Network connection cable (IEC C13, max. 10A)
Quick start guide
