Diverse GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input

DIVERSE

2111-1

New

Rack monitoring system, 12 digital inputs, Redundant power supply, 4 sensor connectors

Monitoring system with 4 relay outputs and 12 passive signal inputs – Supports remote maintenance

Supports remote access via web, SNMP or Telnet
Switching of 4 floating relay outputs depending on sensor threshold values or inputs
Monitoring of 12 passive signal inputs (12 VDC)
2 inputs for redundant power supply (12 VDC)
4 connections for optional sensors (temperature, humidity and air pressure)
Supports HTTP, HTTPS, Email (SSL,STARTTLS), DHCP, Syslog
IPv6 ready, SNMPv1, v2c, v3 (Get/Traps), Radius and Modbus TCP-protocol support
Easy-to-read LED display to show IP address, sensor values and error messages
Notification via email, Syslog and SNMP traps depending on the configured threshold values for sensor measurement as well as for signal inputs

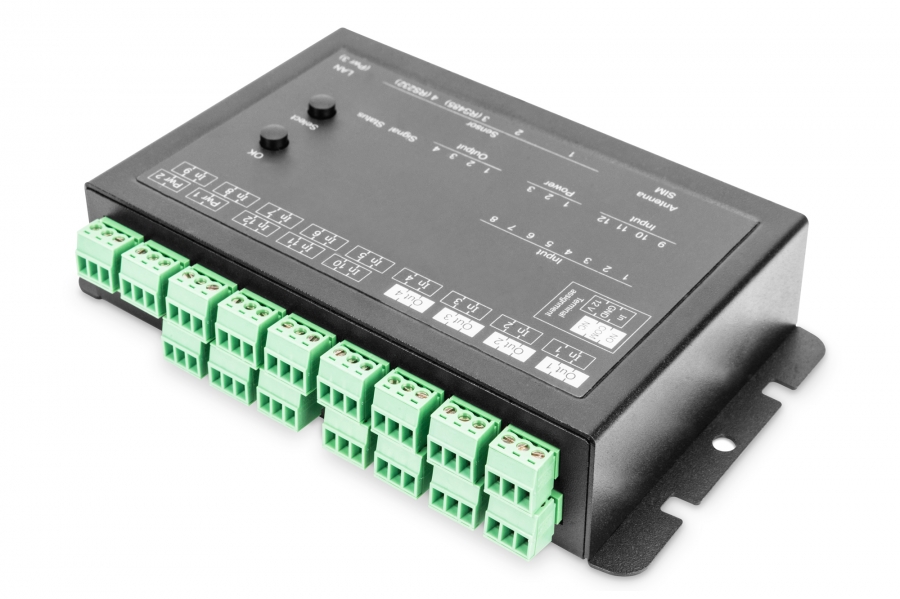

Sturdy sheet steel housing with versatile mounting options

The Basic Monitoring System from GUDE offers various options for remote access via the TCP/IP network. The device has 4 individually switchable relay outputs and 12 passive signal outputs for querying NO/NC devices. Each signal input has a triple terminal with ground connection and 12 V connection, eliminating the need for extra cabling work. Two connections for power adapter plugs offer the option of ensuring redundant power supply. The system is equipped with an easy-to-read LED display that provides information such as sensor values, power supply and the status of inputs and outputs. Energy-related information such as power, voltage, total energy consumption, total output and power factor are measured. Thanks to its 4 sensor connections, the device can be expanded with optionally available sensors to form a monitoring system that can report the environmental temperature and humidity as well as air pressure, leaks and smoke. The stable metal housing features versatile options for mounting.

Color: black, RAL 9005
Metered Power Distribution Unit (PDU): false
Mounted: false
Monitoring of input current, output current, voltage, total energy consumption and total output
Easy mounting on profile rails thanks to optional mounting clip
Relay with high contact reliability even under small loads
Each signal input has a 12 V connection to supply NO/NC devices
4-channel watchdog to monitor the connected devices

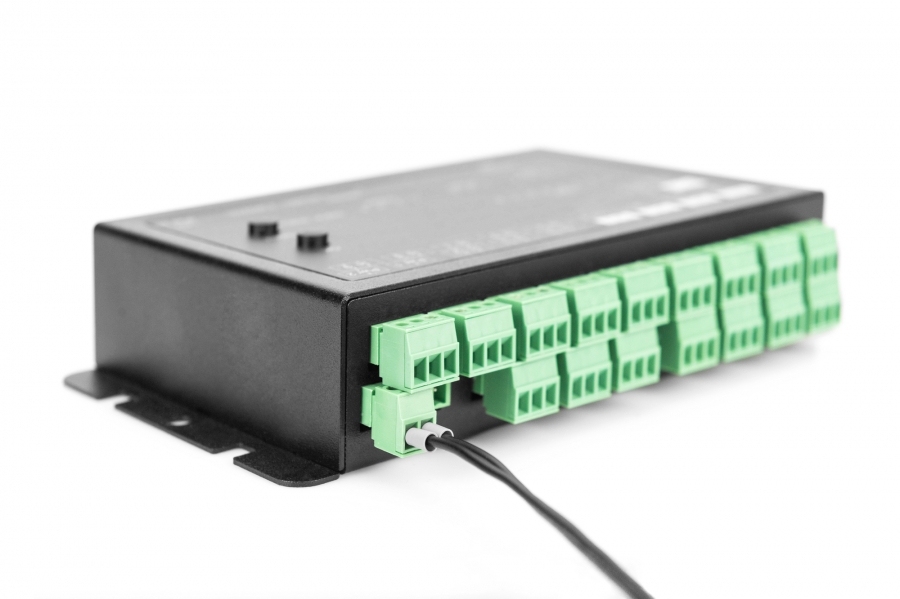

2 x Connections for external plug adapters (industrial terminal, 2-way)
4 x Switch outputs, floating, 36 V, 3 A max. (industrial terminal, 3-way)

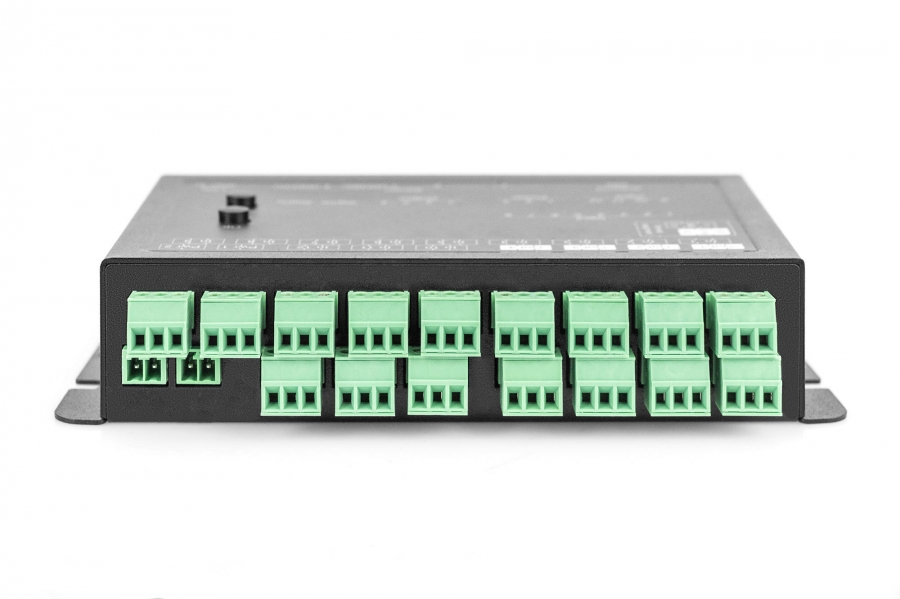

12 x Passive signal inputs (industrial terminal, 3-way)

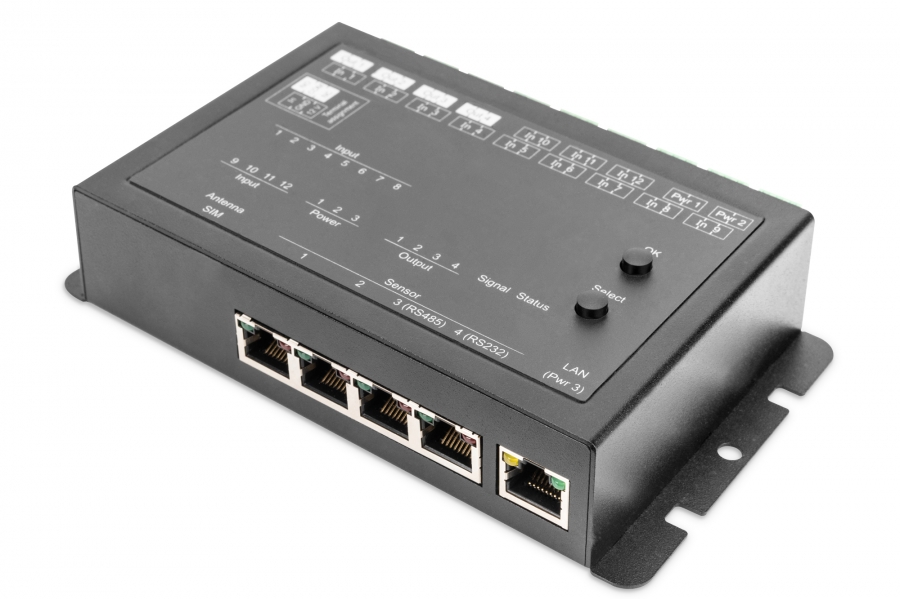

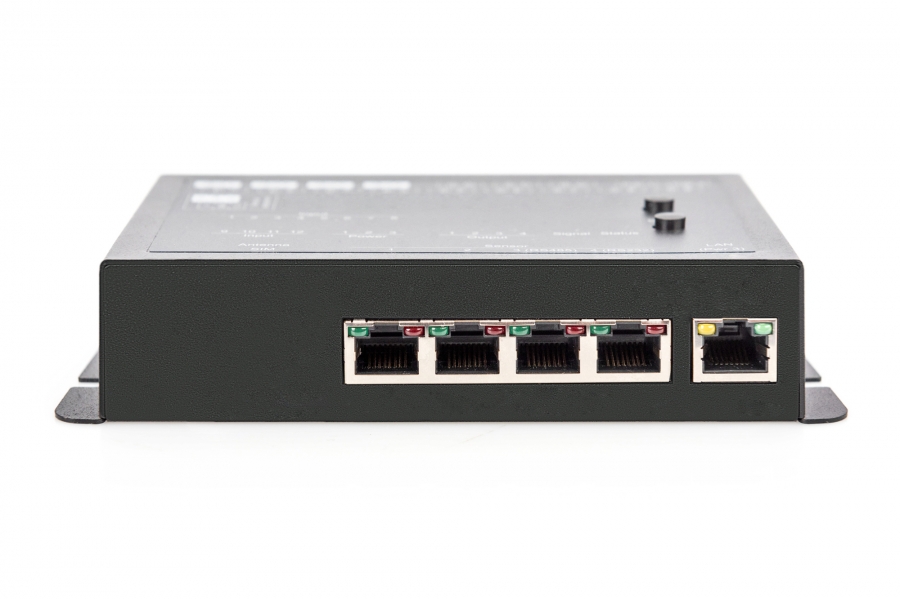

4 x Sensor connections (RJ45) for optional sensors (temperature, humidity and air pressure sensors)
1 x network connection 10/100 Mbit/s (RJ45)
Supports HTTP, HTTPS, Email (SSL,STARTTLS), DHCP, Syslog
IPv6 ready, SNMPv1, v2c, v3 (Get/Traps), Radius and Modbus TCP-protocol support
Power supply: Power adapter (12 V DC, 1 A) with industrial terminal (2-way)
Operating temperature: 0 °C to 50 °C
Storage temperature: -20 °C to +70 °C
Operating humidity: 0% - 95% (non-condensing)
Housing: Powder-coated sheet steel
Dimensions: 139 x 91 x 34 mm (LxWxH)
Weight: 440 g
Color: Black

Package content:
1 x Basic monitoring system, 4 x Relay output, 12 x Signal input
1 x Plug adapter
1 x Quick start guide



Platums(cm)31
Grums(cm)24
Augstums(cm)4
Svars(kg)0.57
Tilpums(cm3)2976
Izcelsmes valstsDE
