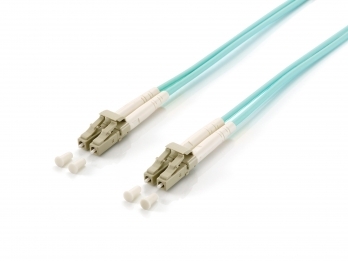

Equip LWL Patchkabel LC->LC 20.00m Multimode Duplex OM3 turq Polybeutel

EQUIP

255418

New

The equip®Fiber Optic Patch Cord is made of superior materials to ensure an insertion loss, return loss, and endface geometry connection. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.- Supports 10 Gigabit Ethernet transmission rate - Multi-mode, duplex - Connector: ceramic-ferrule - Cladding: low smoke and zero halogen - Cable spec: I-VH 2 x 1G - Cable jacket color: turquoise - Each cable includes a measure protocol - OM3 = 50/125mμ

Cable length20 m
Fibre optic typeOM3
Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourTurquoise
Jacket materialLow smoke zero halogen (LSZH)
Full duplexY
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Data transfer rate10 Gbit/s
Insertion loss0.5 dB
Sustainability certificatesREACH, RoHS
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-40 - 80 °C
Harmonized System (HS) code85447000

9/125 62.5/125 50/124 MTP
