Equip LWL Patchkabel MTP->MTP 5.00m Multimode OM4 TypB Polybeutel

EQUIP

25555507

New

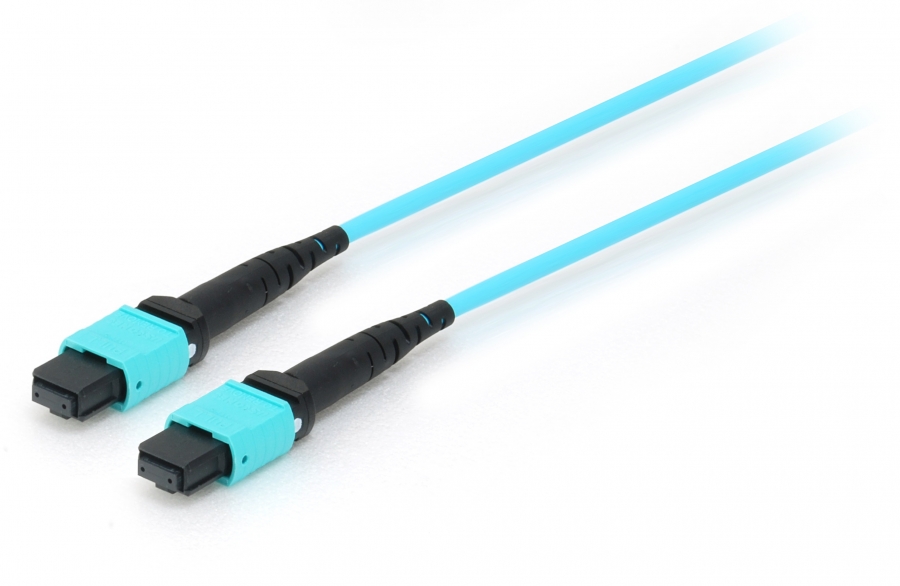

The equip® MTP/MTP Trunk Fiber Patch Cord OM4 is a pre-terminated optical fiber cabling system, specifically designed to satisfy the increasing demand for high bandwidth and high density in data center network and enterprise building application.

Cable length5 m
Fibre optic typeOM4
Connector 1MTP
Connector 2MTP
Connector 1 genderFemale
Connector 2 genderFemale
Product colourCyan
Jacket materialLow smoke fire retardant zero halogen (LSFRZH)
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Insertion loss0.5 dB
Sustainability certificatesREACH, RoHS
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-40 - 80 °C
Weight38 g
Package width275 mm
Package height175 mm
Harmonized System (HS) code85447000

9/125 62.5/125 50/124 MTP
