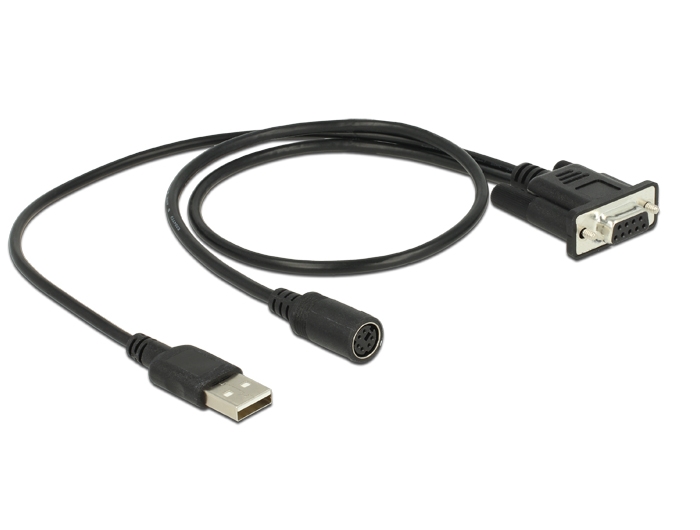

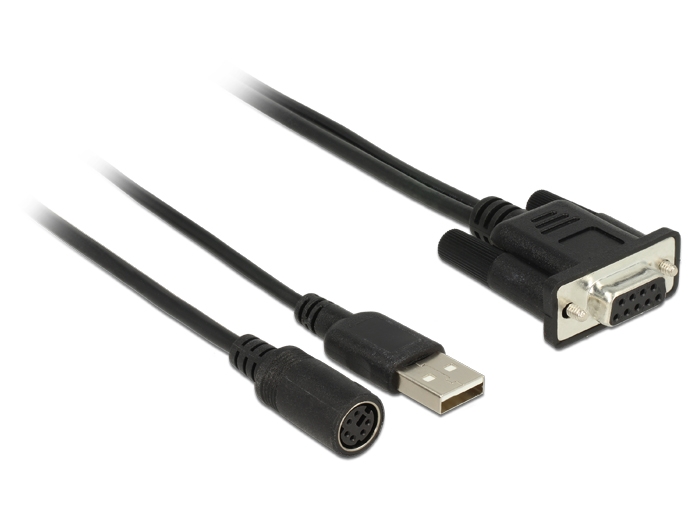

Navilock Connection Cable MD6 Serial > D-SUB 9 Serial for GNSS Receiver with power supply via USB

NAVILOCK

62907

New

This cable by Navilock is intended for all GNSS receivers with the Navilock MD6 connector. The RS232 SUB-D9 connection transmits the serial data. The USB connector on the cable provides power to the receiver.
System requirements:
• A Navilock serial MD6 GNSS receiver
• A free SUB-D9 male port
Specification:
• Connector:
  1 x MD6 female
  1 x D-SUB 9 female with screws
  1 x USB Type-A male
• Power supply via USB
• Length incl. connector:
  MD6 cable: ca. 59 cm
  USB cable: ca. 39 cm
Package content:
• Connection cable for GNSS receiver
Data sheet:
http://www.navilock.de/produkt/62907/pdf.html?sprache=en
