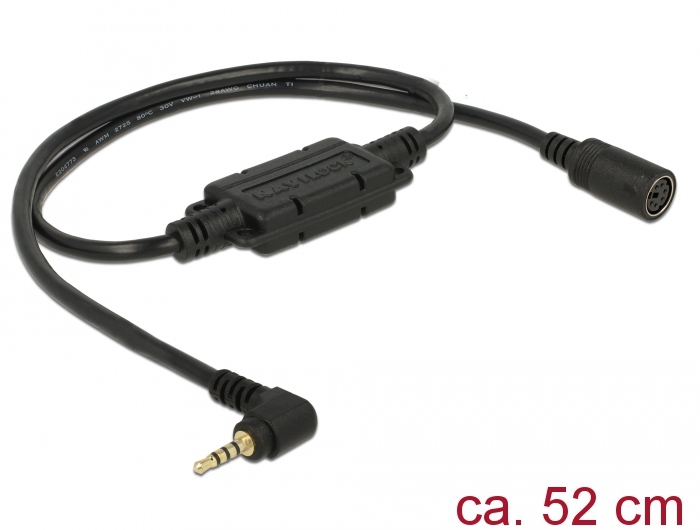

Navilock Connection Cable MD6 female serial > 2.5 mm 4 pin stereo jack male 90° LVTTL (3.3 V) 52 cm

NAVILOCK

62924

New

The connection cable by Navilock converts the serial signals universally for all MD6 receivers to LVTTL 3.3 V signals. Compatible with LVTTL/CMOS is this interface suitable for GPIO, UART, Controller and CPU.
System requirements:
• A Navilock serial MD6 GNSS receiver
Specification:

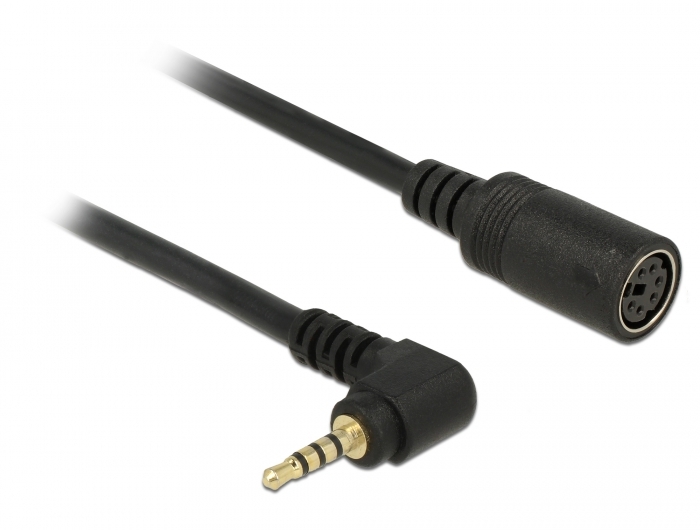

• Connectors:
  1 x MD6 female >
  1 x 2.5 mm 4 pin stereo jack male 90°
• Chipset: ASIX ZT3221LEEY
• Data transfer: bidirectional
• Voltage: 3.3 V
• Cable colour: black

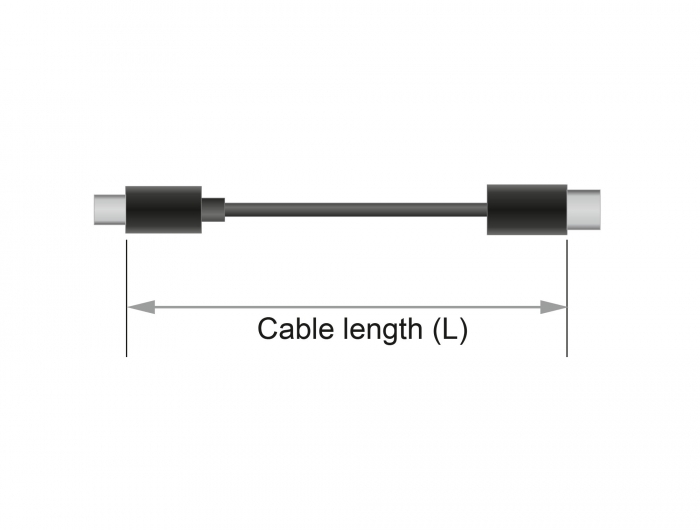

• Length incl. connectors (L): ca. 52 cm
Package content:
• Connection cable for GNSS receiver
• Navilock support CD
Data sheet:
http://www.navilock.de/produkt/62924/pdf.html?sprache=en
