Navilock Connection Cable M8 female serial waterproof > 5 x open wire TTL (5 V) 1.2 m

NAVILOCK

62892

New

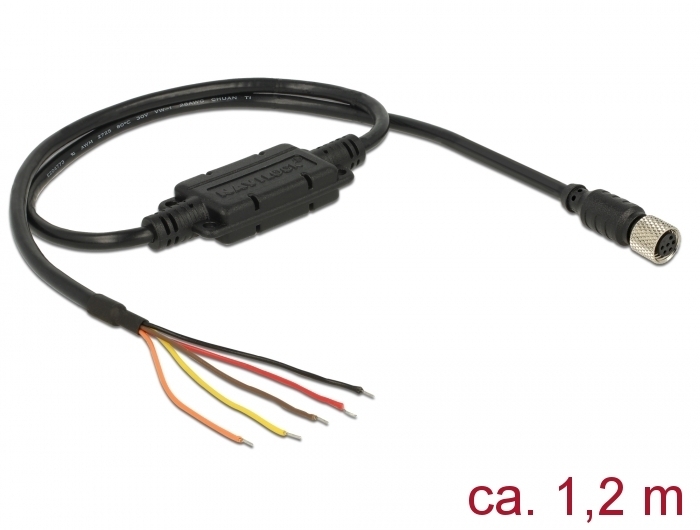

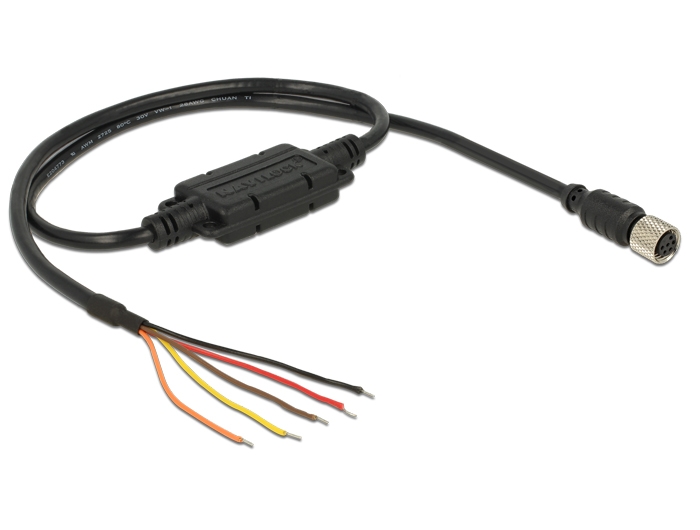

The waterproof connection cable by Navilock converts the serial signals for all M8 receivers to TTL 5 V signals. Compatible with TTL/CMOS is this interface suitable for GPIO, UART, Controller and CPU.

System requirements:
• A Navilock serial M8 GNSS receiver
Specification:
• Connectors:
  1 x M8 female >
  1 x 5 pin open wire
• Chipset: ASIX ZT3221LEEY
• Cable gauge: 28 AWG
• Voltage: 5 V
• Waterproof
• Cable colour: black
• Cable length incl. connectors: ca. 1.2 m
Package content:
• Connection cable for M8 GNSS receiver
• Navilock support CD
