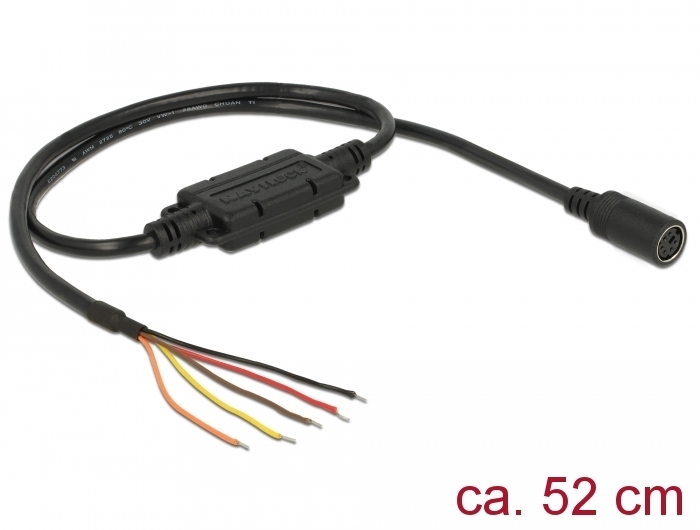

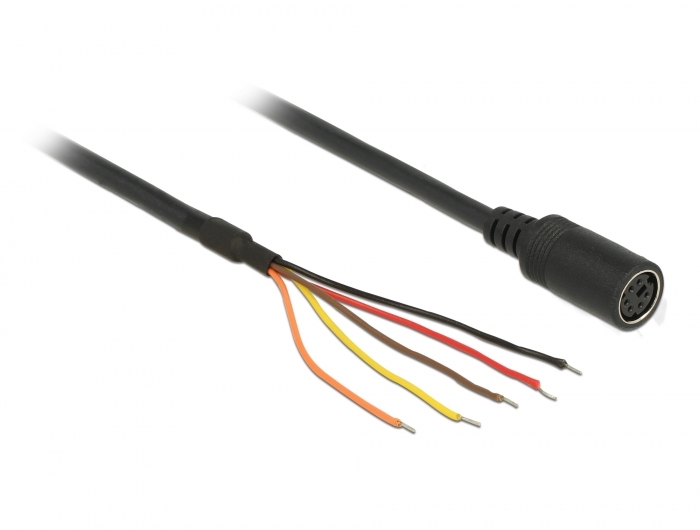

Navilock Connection Cable MD6 female serial > 5 x open wires TTL (5 V) 52 cm

NAVILOCK

62884

New

The connection cable by Navilock converts the serial signals for all MD6 receivers to TTL 5 V signals. Compatible with TTL/CMOS is this interface suitable for GPIO, UART, Controller and CPU.
System requirements:
• A Navilock serial MD6 GNSS receiver
Specification:
• Connectors:
  1 x MD6 jack >
  1 x 5 pin open wire
• Chipset: ASIX ZT3221LEEY
• Cable gauge: 28 AWG
• Voltage: 5 V
• Cable colour: black
• Cable length incl. connectors: ca. 52 cm
Package content:
• Connection cable for GNSS receiver
• Navilock support CD
Data sheet:
http://www.navilock.de/produkt/62884/pdf.html?sprache=en
