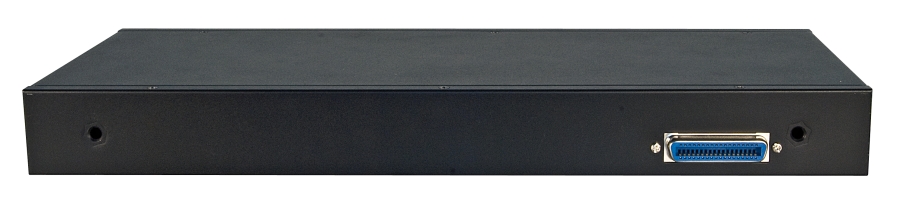

Lindy 32 Port VGA, USB & PS/2 Cat-32 Combo KVM Switch for LCD Console

Lindy

LIN39635

New



Specifications:

  • AV Interface: VGA
  • Console Interfaces: USB
  • Interface Standard: VGA, USB 2.0
  • Maximum Resolution: VGA: 1920x1200@30Hz
  • HDCP Support: -
  • Supported Audio:
  • Separate Audio Ports:
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 32
  • Cascadable: Yes
  • Switching Method: OSD, Hotkey (configurable)
  • 19" Rack Mountable: Yes (1U - Mounted in the backside of a LCD Terminal Unit)



Connectors:

  • Console Interfaces: Centronics CN36 (Female) only for Lindy LCD Terminal
  • PC/Server Interfaces: 32 x RJ45 (Female)
  • Other Interfaces: 1 x DaisyChain Port (1 x VGA Female)
  • Power: 5.5/2.1mm DC socket



Physical properties:

  • Dimensions (approx.) WxDxH: 430x180x44mm (16.93x7.09x1.73in)
  • Housing Material: Metal
  • Net Weight: 1.85kg (4.08lb)
  • Operating Temperature: 0°C - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 0~90% RH (non-condensing)
  • Power Requirements: 9VDC 2A
  • Colour: Black



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 530x210x55mm (20.87x8.27x4.17in)
  • Gross Weight: 2.1kg (4.63lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package content:

  • KVM Switch
  • 2 x brackets with screws
  • Quick Start Guide



Purchasing information:

  • No.: 39635
  • EAN: 4002888396356
