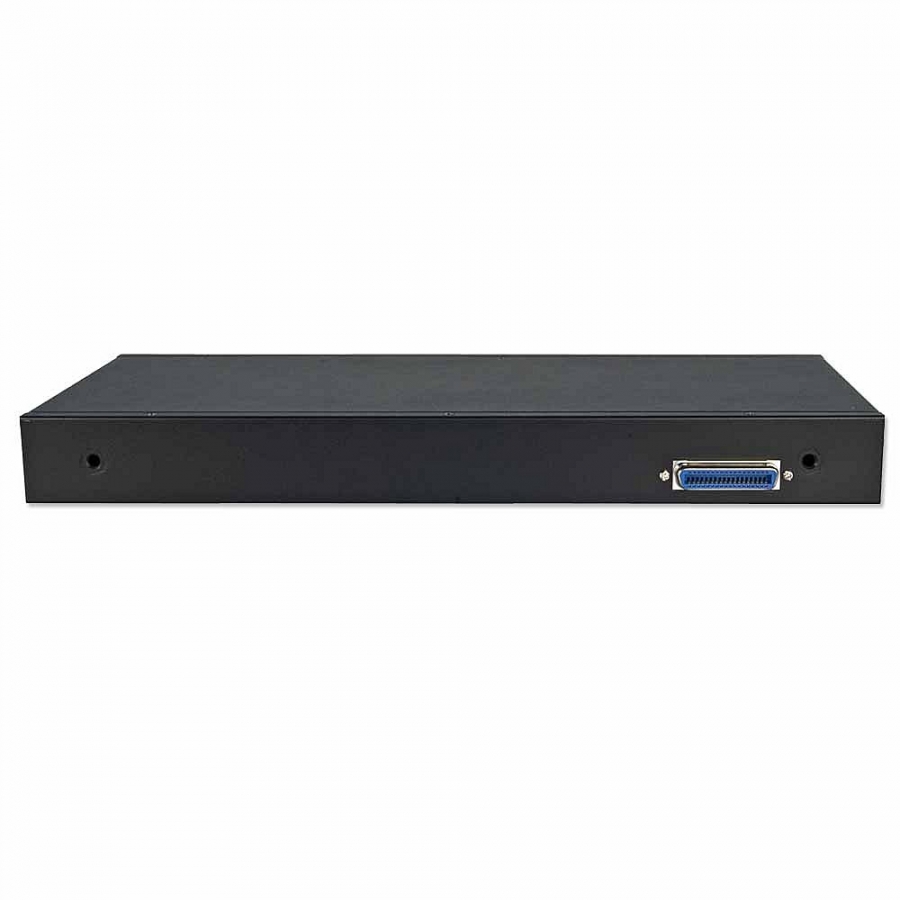

Lindy 16 Port VGA & USB Modular KVM Switch for LCD Console, U16

Lindy

LIN39531

New

 Specifications:

  • AV Interface: VGA
  • Console Interfaces: USB
  • Interface Standard: VGA, USB 2.0
  • Maximum Resolution: VGA: 1920x1440
  • HDCP Support: -
  • Supported Audio:
  • Separate Audio Ports:
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 16
  • Cascadable: Yes
  • Switching Method: OSD, Hotkey (configurable)
  • 19" Rack Mountable: Yes (1U - Rack Mount behind a Lindy LCD Terminal)



Connectors:

  • Console Interfaces: Centronics CN36 (Female) only for Lindy LCD Terminal
  • PC/Server Interfaces: 16 x VGA (Female)
  • Other Interfaces: DaisyChain VGA (Female)
  • Power: 5.5/2.5mm DC socket



Physical properties:

  • Dimensions (approx.) WxDxH: 430x190x44mm (16.93x7.48x1.73in)
  • Housing Material: Metal
  • Net Weight: 1.96kg (4.32lb)
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 65°C (-4°F - 149°F)
  • Humidity: 0~80% RH (non-condensing)
  • Power Requirements: 12VDC 1A
  • Colour: Black



Miscellaneous:

  • Packaging Type: Carton box
  • Packaging Dimensions: 540x210x55mm (21.54x8.27x2.17in)
  • Gross Weight: 2.5kg (5.51lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package content:

  • KVM Switch
  • 2 x brackets with screws
  • LINDY Utilities and Manuals CD
  • Quick Start Guide



Purchasing information:

  • No.: 39531
  • EAN: 4002888395311
