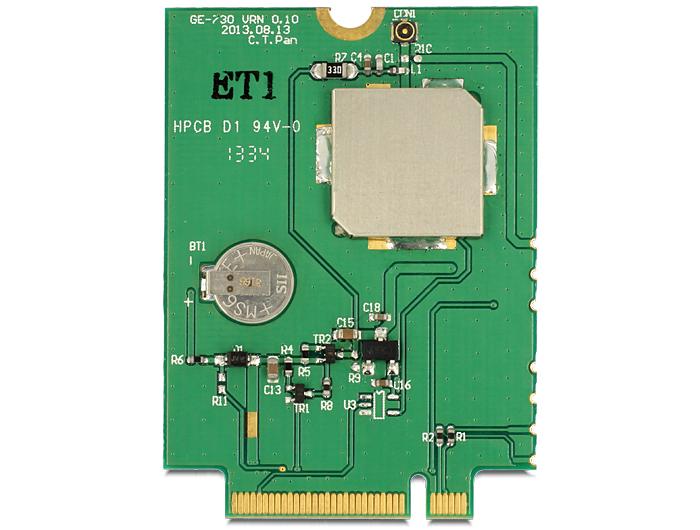

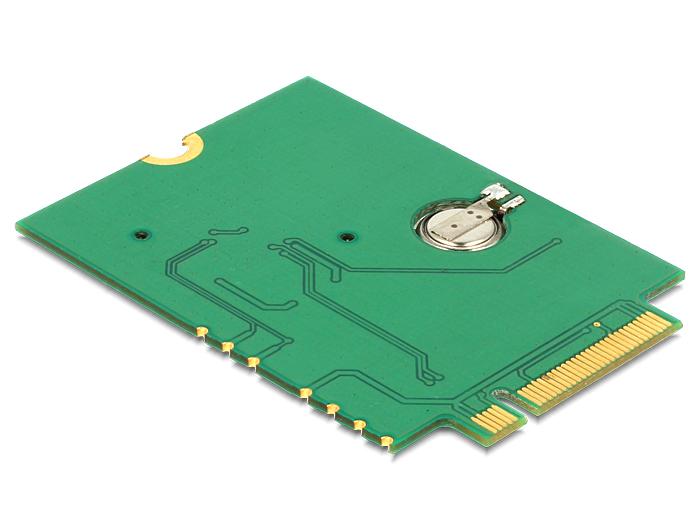

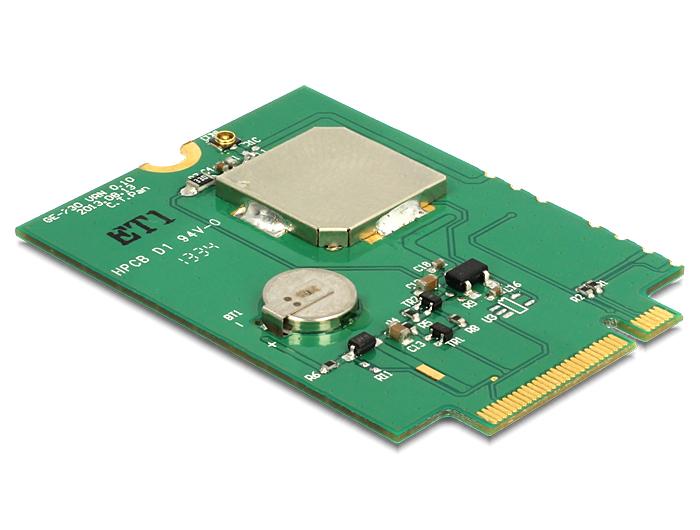

Navilock NL-730 u-blox 7 USB M.2 NGFF GPS and GLONASS Engine Module

NAVILOCK

60431

New

This engine module is a GNSS receiver with connector for an external GPS / GLONASS antenna.

More details

Description:
This engine module is a GNSS receiver with connector for an external GPS / GLONASS antenna.

Specification:
• Chipset: u-blox 7

Spezification
• Channel: 56
• Sensitivity: -161 dBm
• Frequency: GPS/QZSS: L1 C/A 1575,42 MHz
GLONASS: L1OF 1598,0625 ~ 1605,375 MHz
• SBAS: WAAS, EGNOS, MSAS
• Horizontal position accuracy: GPS: 2.50 m
SBAS (GPS): 2.00 m
GLONASS: 4.00 m
• Velocity: < 0.10 m/s

Time
• Hot start: 1 s (GPS/GLONASS)
• Warm start: 28 s (GPS) 25 s (GLONASS)
• Cold start: 30 s (GPS) 32 s (GLONASS)
• Interface: M.2 NGFF USB
• Key B
• A-GPS support
• RF Antenna connector: MHF IV (IPEX) compatible zu HSC MXHP32 (Murata)
• Withou patch antenna
• With connector for external active antenna with max. 30 mA
• Current: 41 mA
• Operating temperature: -40°C ~ 85°C without battery
-20°C ~ 60°C with battery
• Update rate: 1 Hz ~ 10 Hz
• Dimensions: 30 x 42 x 2.3 mm without battery
30 x 42 x 2.7 mm with battery

System requirements:
• PC, notebook, tablet with M.2 NGFF slot
• Linux kernel 2.6, Mac, Windows XP/Vista/7/8,
Windows mobile 2003/5/6

Package content:
• GNSS module
