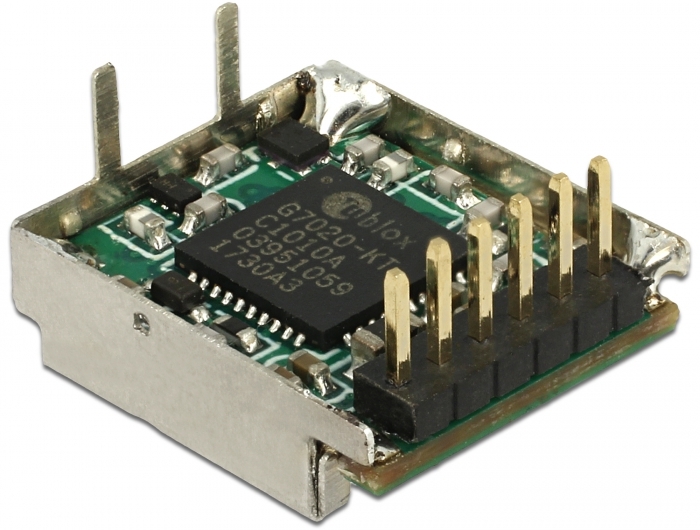

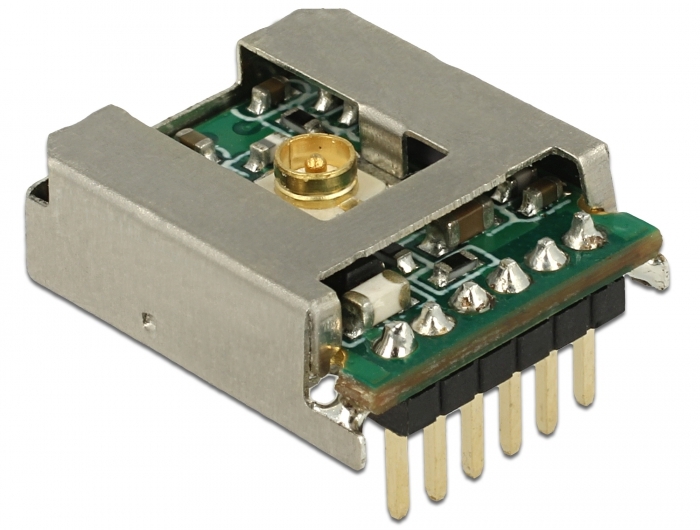

Navilock NL-731ETTL u-blox UBX-G7020-KT GPS PPS engine module

NAVILOCK

60447

New

The NL-731ETTL by Navilock is an extremely small powerful GNSS GPS module with u-blox 7 chipset. It is characterized by fast response, high sensitivity and low power consumption.
System requirements:
• Device with a free TTL 3.3 V connector
• GNSS antenna with MHF plug
Specification:
• Connectors:
  1 x WTB serial TTL

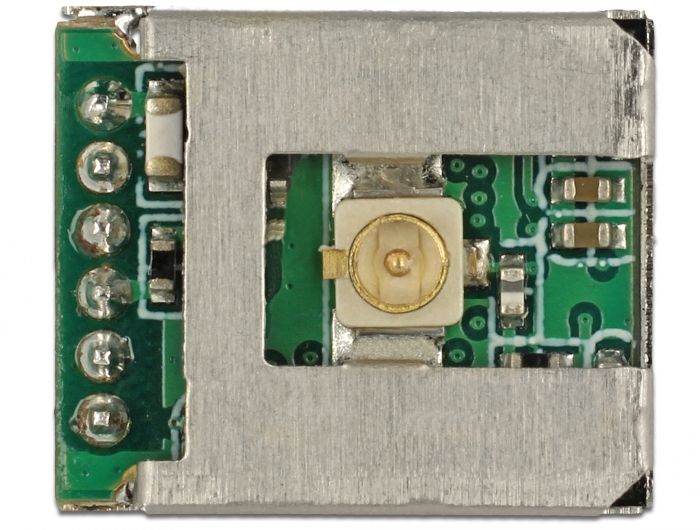

  1 x MHF (I-PEX) jack, U.FL (Hirose) compatible

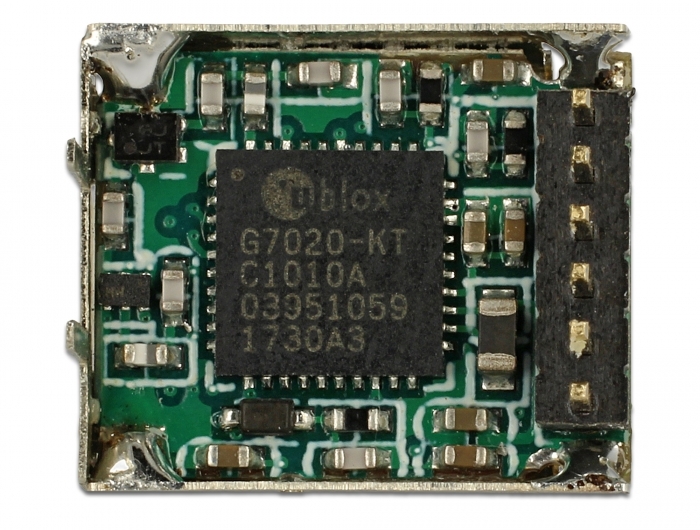

• u-blox UBX-G7020-KT module
• Frequency:
  GPS: L1 C/A, 1575.4200 MHz
  QZSS L1, 1575.4200 MHz
  GLONASS: L10F, 1598.0625 - 1605.375MHz
• Accepts the signals of up to 56 satellites at the same time
• Supports AssistNow online/offline,
  SBAS (WAAS, EGNOS, MSAS)
• Supports NMEA 0183 protocols: GGA, GLL, GSA, GSV, RMC, VTG, TXT
• Auto Baud Rate up to 115200 bps
• Update rate: up to 10 Hz
• Sensibility: -162 dBm tracking / -148 dBm acquisition (GPS)
• Operating temperature: -40 °C ~ 85 °C
• Power supply: 3.3 -  3.6 V
• Current consumption: max. 40 mA
• Cold start in ca. 29 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
  2.5 m CEP (Circular Error Probable)
  2.0 m CEP with SBAS (Circular Error Probable)
• Dimension (LxWxH): ca. 12 x 10 x 3.5 mm
Package content:
• Engine module
• Navilock support CD
Data sheet:
http://www.navilock.de/produkt/60447/pdf.html?sprache=en
