Navilock EM-506 GNSS GPS SiRF Star IV TTL PPS Engine Board

NAVILOCK

60432

New

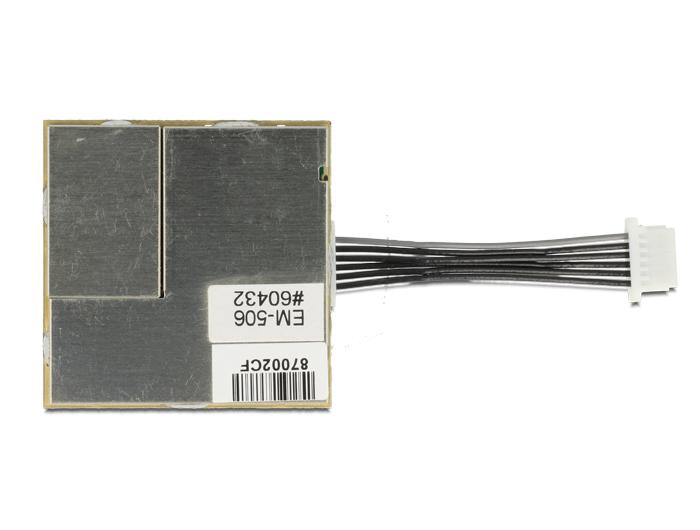

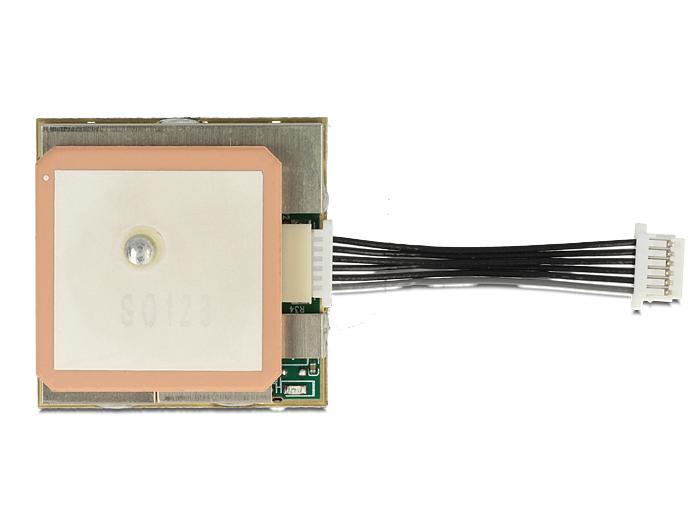

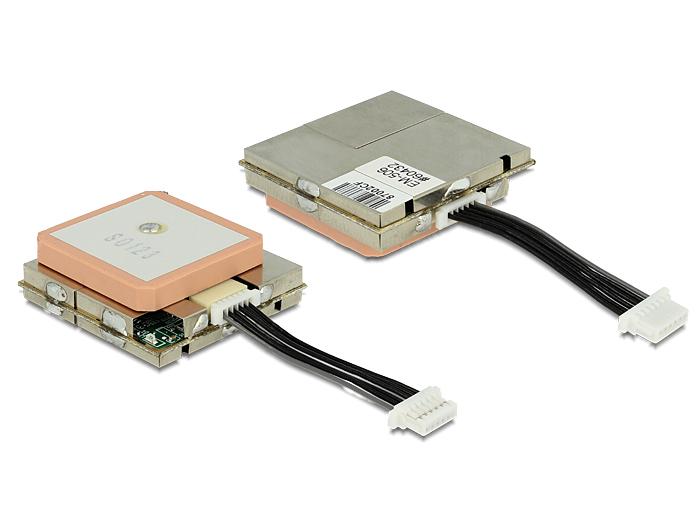

This is a complete ready to use GPS receiver.The EM-506 is a OEM Engine Board with SiRF Star IV chipset, integrated patchantenna and PPS pulse per second/LED pin.

More details

Description:
This is a complete ready to use GPS receiver.

The EM-506 is a OEM Engine Board with SiRF Star IV chipset, integrated patchantenna and PPS pulse per second/LED pin.



Specification:
• SiRF Star IV high performance GPS Chipset
• Frequency: L1, 1575.42 MHz
• Very high sensitivity (Tracking Sensitivity: -163 dBm)
• Puls per Second/LED PIN (PPS) at 3D SATFIX (1 second
high voltage, 1 second low voltage)
• Extremely fast TTFF (Time To First Fix) at low signal level
• Support UART interface
• Baud rate: 4800 bps (1200, 2400, 4800, 9600, 19200, 38400)
• Built-in LNA(with in CHIP)
• Compact size (30.00 x 30.00 x 10.70 mm) suitable for space-sensitive application
• Operation temperature: -40°C ~ 85°C
• Voltage: 4.5 ~ 6.5 V DC
• Support NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL, ZDA)
• Support OSP protocol
• Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
• PCB jack: Digi-Key Part No: 455-1806-1-ND
• Cable plug: Digi-Key Part No: 455-1381-ND

System requirements:


Package content:
• GNSS engine board
