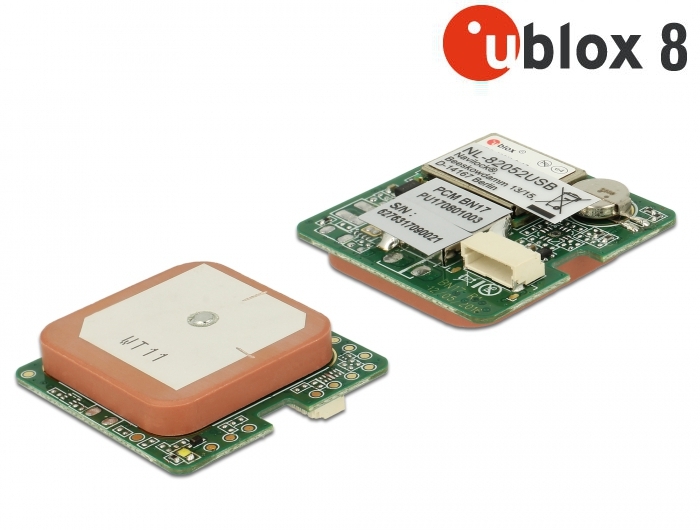

Navilock NL-82052USB Multi GNSS UDR u-blox NEO-M8U PPS engine module

NAVILOCK

62763

New

GNSS modules are fully assembled receiver with patch antenna, backup battery etc ..
This version uses USB 2.0.
Several integrated sensors allow position determination without GNSS signals.
System requirements:
• Device with a free USB connector
Specification:
• Connector: WTB USB 2.0
• u-blox NEO-M8U module
• Frequency:
  GPS: L1, 1575.4200 MHz
  GLONASS: L1, 1602.5625 ~ 1615.5000 MHz
  BEIDOU COMPASS: B1, 1561.0980 MHz
  GALILEO E1, 1575.4200 MHz
  QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
  SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Supports UDR from NMEA 4.1
• Auto Baud Rate up to 115200 bps
• Update rate: up to 20 Hz
• Sensibility max.: –160 dBm
• LED-indicator for GPS status
• Operating temperature:
  -40 °C ~ 85 °C without battery
  -20 °C ~ 60 °C with battery
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
  2.5 m CEP (Circular Error Probable)
  2.0 m CEP with SBAS (Circular Error Probable)
• Dimension (LxWxH): ca. 30 x 30 x 7.90 mm

Package content:
• Engine module
• Navilock support CD
Data sheet:
http://www.navilock.de/produkt/62763/pdf.html?sprache=en
