Delock PCI Express Soundcard 7.1 - 24 Bit / 192 kHz with TOSLINK In / Out

DELOCK

89640

New

This PCI Express sound card by Delock extends the system with various sound inputs and outputs and has 8 sound channels. This allows devices such as speakers, headphones etc. to be connected. When used in conjunction with a headset, the sound card is ideal for applications such as Skype or gaming. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot and one rear slot
Specification:

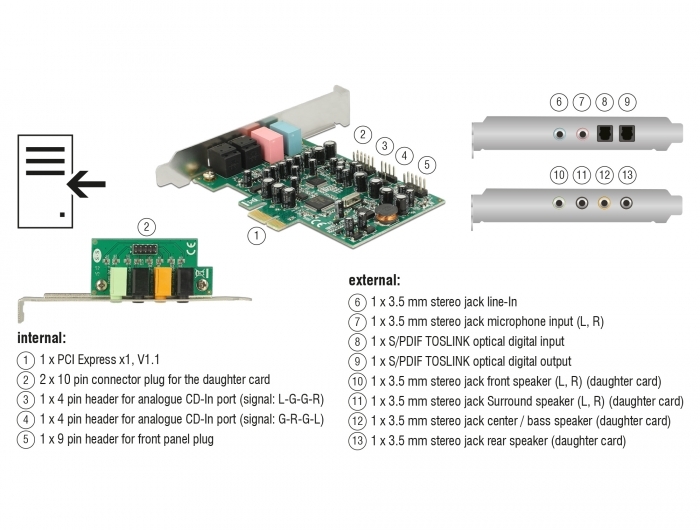

• Connectors:
  external:
    1 x 3.5 mm stereo jack line-In
    1 x 3.5 mm stereo jack microphone input (L, R)
    1 x S/PDIF TOSLINK optical digital input
    1 x S/PDIF TOSLINK optical digital output
    1 x 3.5 mm stereo jack front speaker (L, R) (daughter card)
    1 x 3.5 mm stereo jack Surround speaker (L, R) (daughter card)
    1 x 3.5 mm stereo jack center / bass speaker (daughter card)
    1 x 3.5 mm stereo jack rear speaker (daughter card)
  internal:
     2 x 10 pin connector plug for the daughter card
     1 x 4 pin header for analogue CD-In port (signal: L-G-G-R)
     1 x 4 pin header for analogue CD-In port (signal: G-R-G-L)
     1 x 9 pin header for front panel plug
     1 x PCI Express x1, V1.1
• Chipset:
  CMedia CM8828 multi-channel audio processor
  CMedia CM9882A 8-Channel HDA Codec
• Up to 24 Bit / 192 kHz sampling rate for recording and playback
• Signal noise ratio (SNR): ca. 92 dB
• Supports ASIO and WASAPI
• Supports 7.1 channel sound

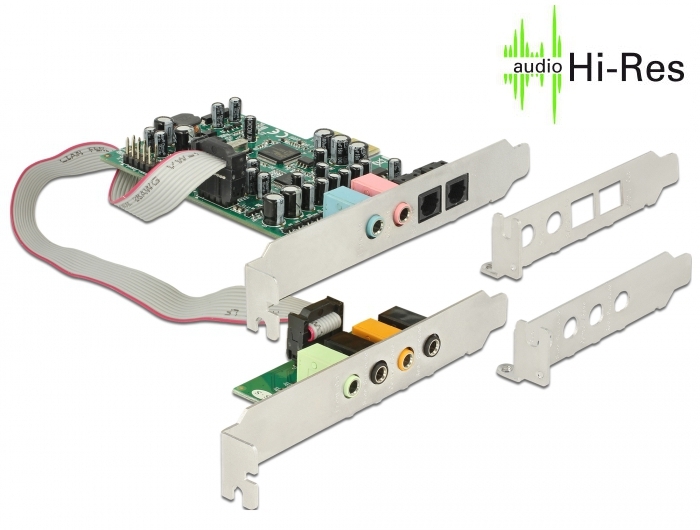

Package content:
• PCI Express card

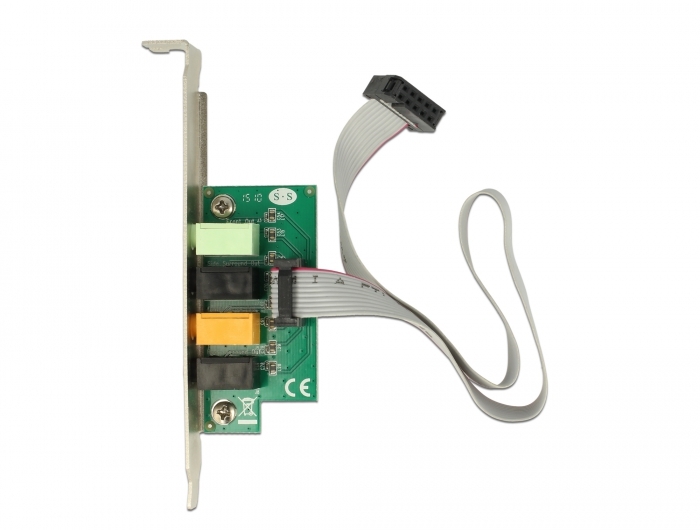

• Daughter card
• 2 x low profile bracket
• 1 x flat ribbon cable
• CD ROM with driver and software
• User manual
Data sheet:
http://www.delock.de/produkt/89640/pdf.html?sprache=en
