Delock PoweredUSB PCI Express Card > 3 x 12 V

Reference 89656

Condition: New

More info

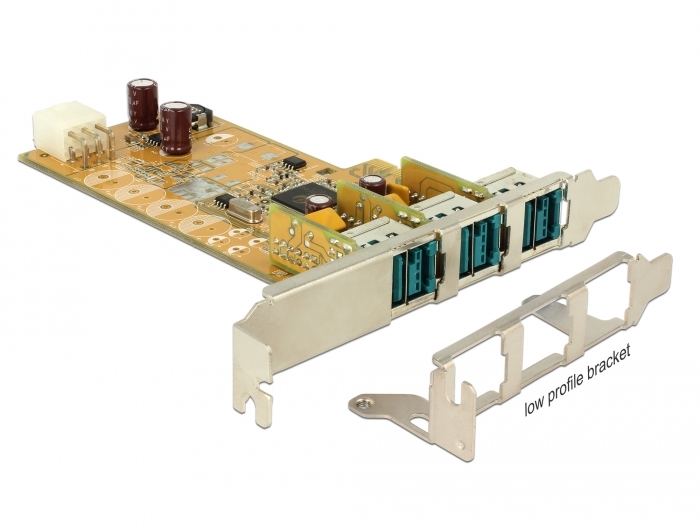

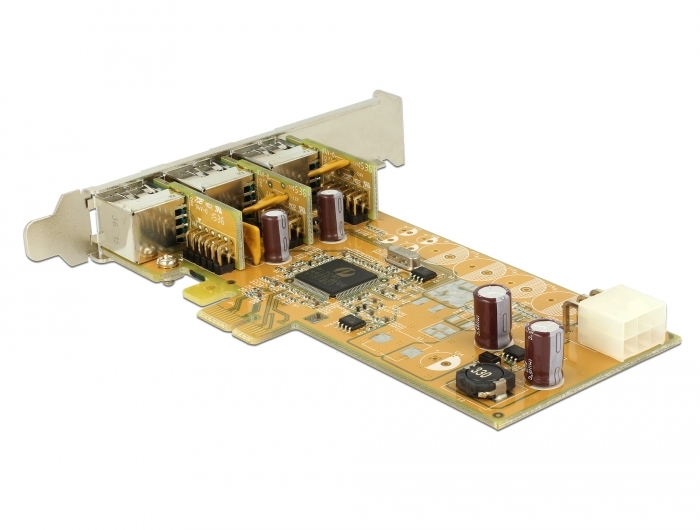

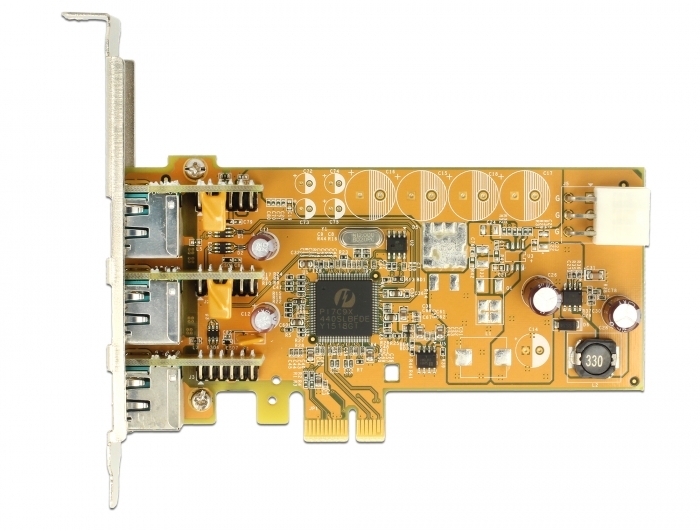

The PCI Express card by Delock expands a PC by three external powered USB 2.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Furthermore, with the help of appropriate cables, devices which require a power supply of 12 V, e.g. barcode scanner or POS systems, can be connected and need no additional power supply.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.x / Kernel 4.9.4
• PC with one free PCI Express slot

Specification:
• Connectors:
external:

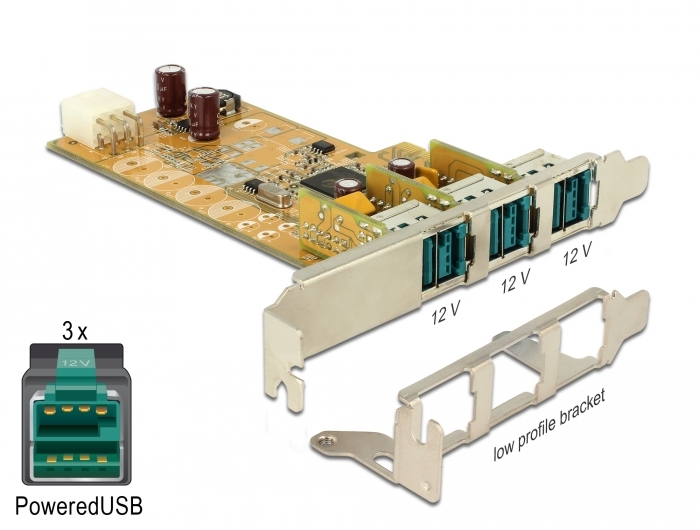

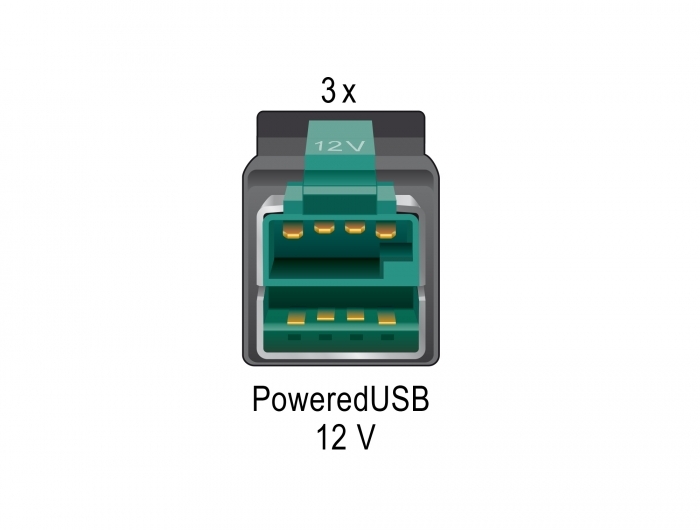

    3 x PoweredUSB 2.0 Type-A female 12 V
internal:
    1 x PCI Express x1, V1.1
    1 x 6 pin power connector
• Chipset: Pericom PI7C9X
• Output current max. 3 A per PoweredUSB port and 0.5 A per USB 2.0 port
• Data transfer rate up to:
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Over-current protection for each port
• Compliant with OHCI and EHCI
• ESD protection up to 15 kV

Package content:
• PCI Express card PoweredUSB
• Low profile bracket

Data sheet:
http://www.delock.de/produkt/89656/pdf.html?sprache=en
