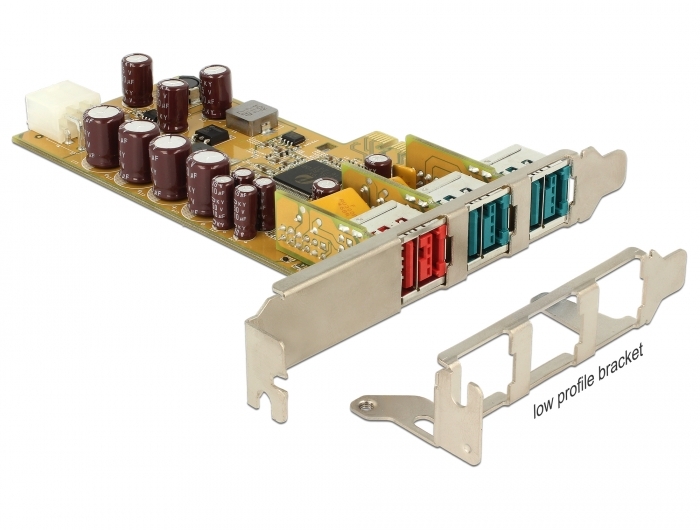

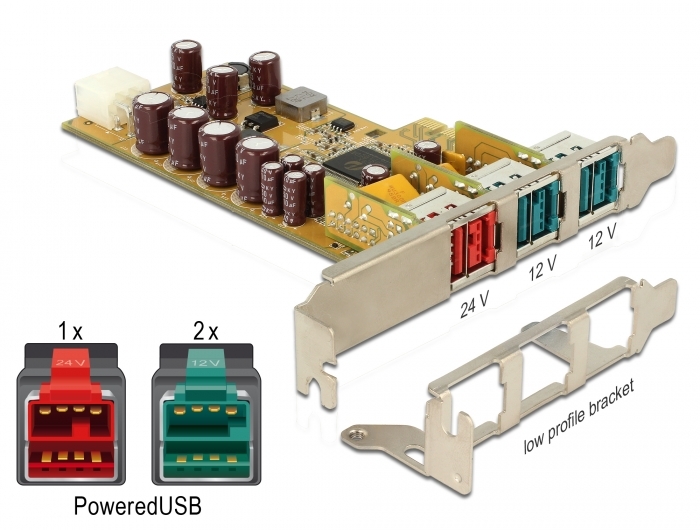

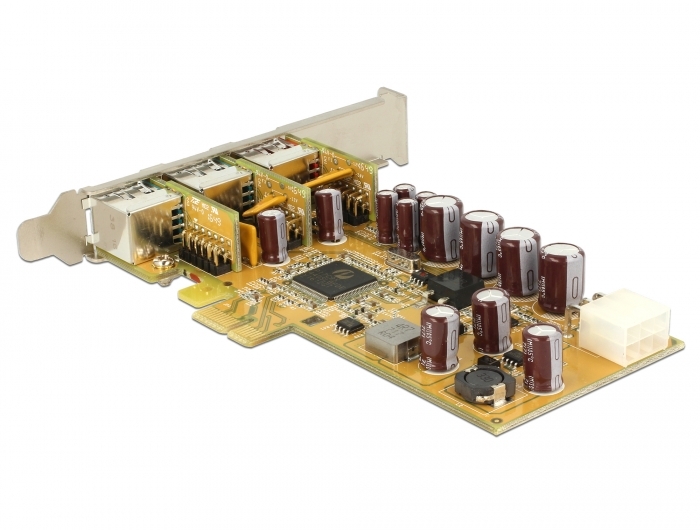

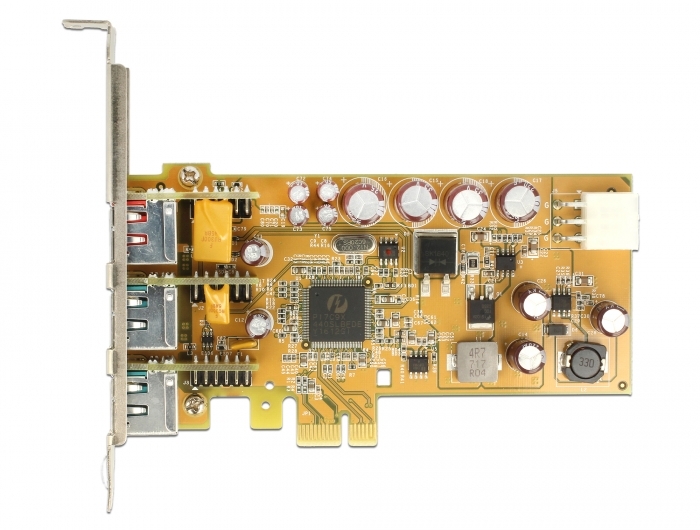

Delock PoweredUSB PCI Express Card > 1 x 24 V + 2 x 12 V

DELOCK

89655

New

The PCI Express card by Delock expands a PC by three external PoweredUSB 2.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Furthermore, with the help of appropriate cables, devices which require a power supply of 12 V or 24 V, e.g. barcode scanner or POS systems, can be connected and need no additional power supply.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.x / Kernel 4.9.4
• PC with one free PCI Express slot
Specification:
• Connectors:
  external:

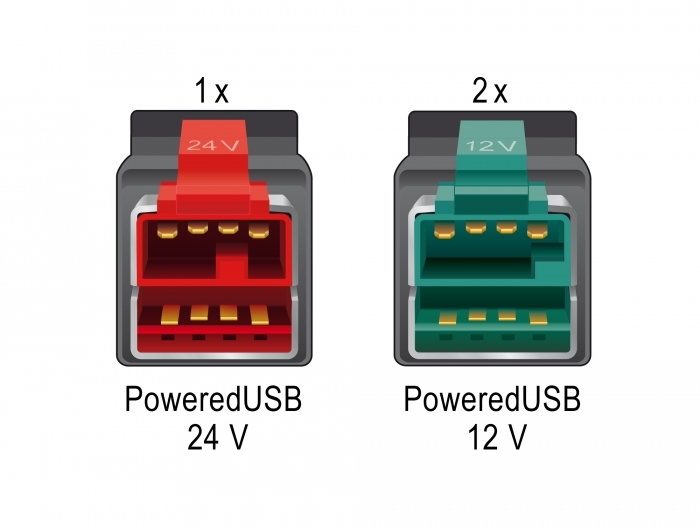

    1 x PoweredUSB 2.0 Type-A female 24 V
    2 x PoweredUSB 2.0 Type-A female 12 V
  internal:
    1 x PCI Express x1, V1.1
    1 x 6 pin power connector
• Chipset: Pericom PI7C9X
• Output current max. 3 A per PoweredUSB port and 0.5 A per USB 2.0 port
• Data transfer rate up to:
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Over-current protection for each port
• Compliant with OHCI and EHCI
• ESD protection up to 15 kV
Package content:
• PCI Express card PoweredUSB
• Low profile bracket
Data sheet:
http://www.delock.de/produkt/89655/pdf.html?sprache=en
