Delock MiniPCIe IO PCIe full size 1 x parallel

DELOCK

95227

New

Description This miniPCIe adapter by Delock expands your system by one parallel interface, which you may lead out. You can connect different parallel devices like printer, scanner, modem etc. to this adapter. Specification• Chipset: Oxford OXPCIe952 • Form factor: miniPCIe full size • Interface: PCI Express Revision 1.1a • Connector: PCB: 1 x 18 pin parallel pin header   Â

More details

Description

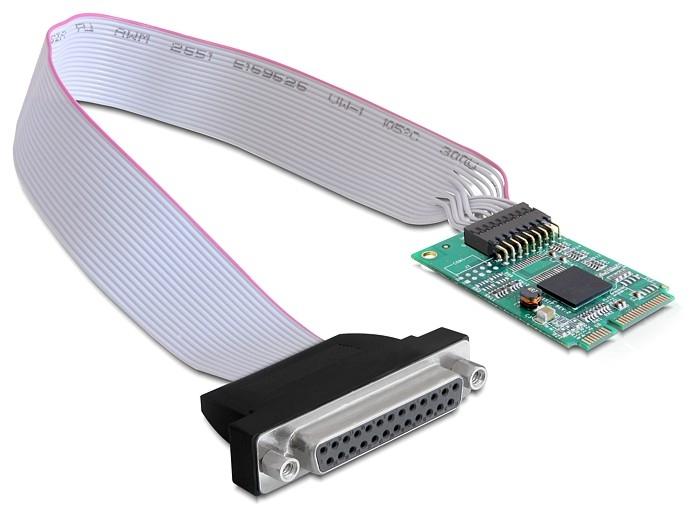

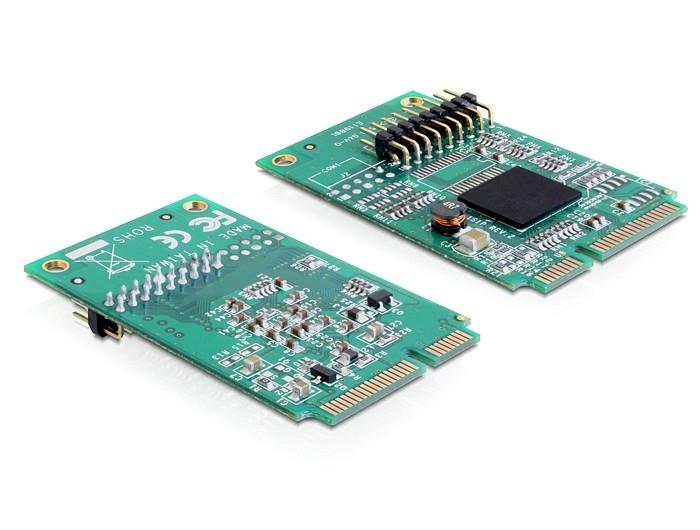

This miniPCIe adapter by Delock expands your system by one parallel interface, which you may lead out. You can connect different parallel devices like printer, scanner, modem etc. to this adapter.
Specification
• Chipset: Oxford OXPCIe952
• Form factor: miniPCIe full size
• Interface: PCI Express Revision 1.1a
• Connector: PCB: 1 x 18 pin parallel pin header
                       cable: 1 x parallel DB25 female with screw nuts
• Data transfer rate up to 460 Kb/s
• Mode: Parallel: ECP - IEEE1284
• Cable length with connector: ca. 28 cm
• Operating temperature: 0 °C ~ 85 °C
• Storage temperature: -20 °C ~ 85 °C
System requirement
• Windows XP/Vista/7/7-64
• Mainboard with a free miniPCIe slot with a PCIe interface
Package content
• MiniPCIe module
• 1 parallel connecting cable
• Driver CD
• User manual
Package
• Blister

PCI Express
