Delock PCI Express Card > 2 x 1 Gigabit LAN PoE+ RJ45

DELOCK

89560

New

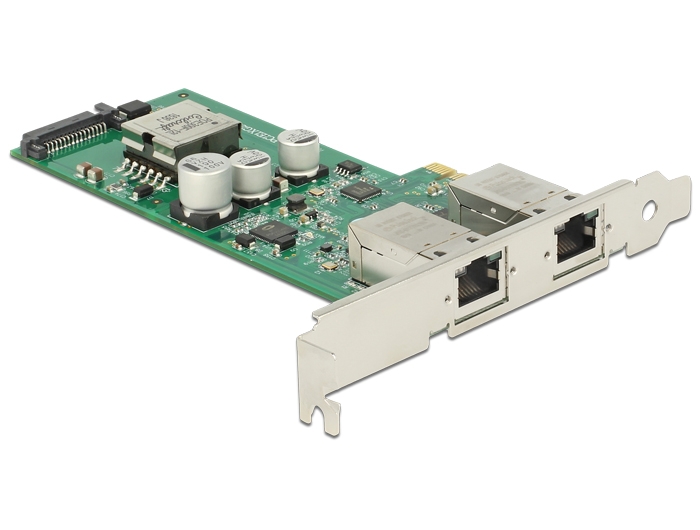

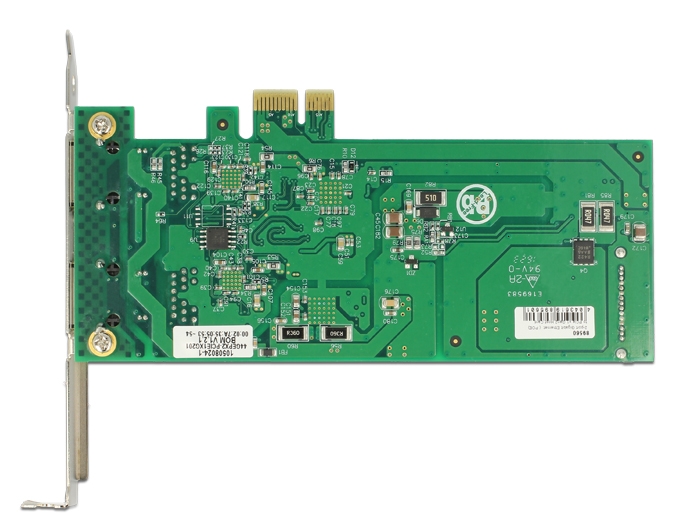

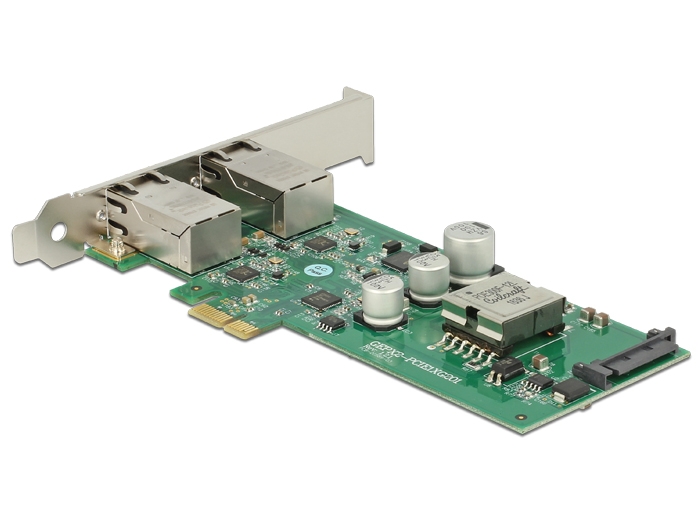

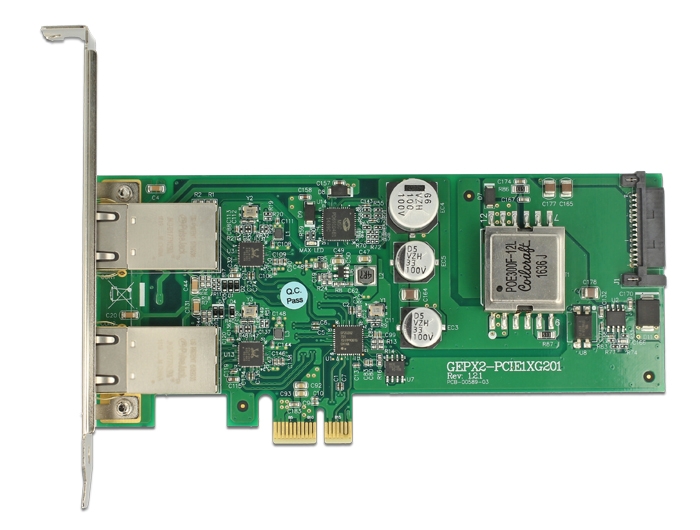

This PCI Express card by IOI offers two network ports with a data transfer rate up to 1 Gbps. The RJ45 ports support Power over Ethernet according to IEEE 802.3af / 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 2.6.31
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Specification:
• IOI item number: GEPX2-PCIE1XG201L
• Connector:
  external: 2 x Gigabit LAN RJ45 female with screw nuts
  internal: 1 x SATA 15 pin power connector
                  1 x PCI Express x1, V2.0
• Chipset: Renesas
• Data transfer rate:
  Ethernet up to 10 Mb/s
  Fast Ethernet up to 100 Mb/s
  Gigabit Ethernet up to 1 Gbps
  PCI Express x1 up to 5 Gbps
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
• Supports 9k Jumbo frames
• Supports IEEE 802.3af & IEEE 802.3at Power Sourcing Equipment (PSE)
• Power delivery: max. 30 W total
• PoE power input from PCIe or SATA 15 pin power connector
Package content:
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/89560/pdf.html?sprache=en
