Delock PCI Express x16 Card to 4 x internal SFF-8654 4i NVMe - Bifurcation

Reference 90111

Condition: New

More info

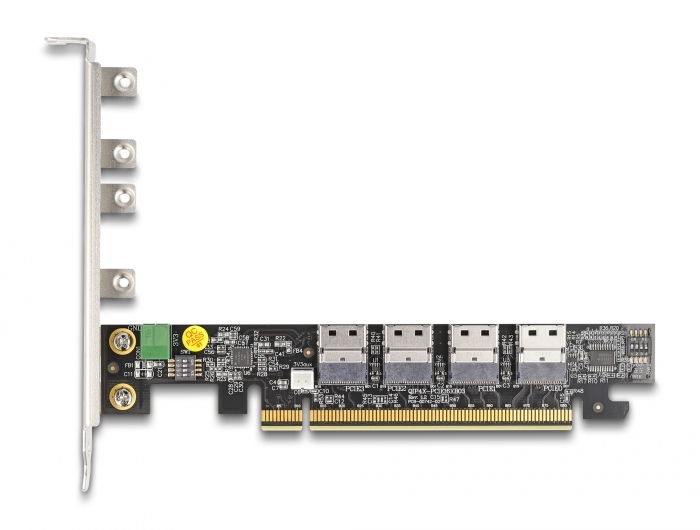

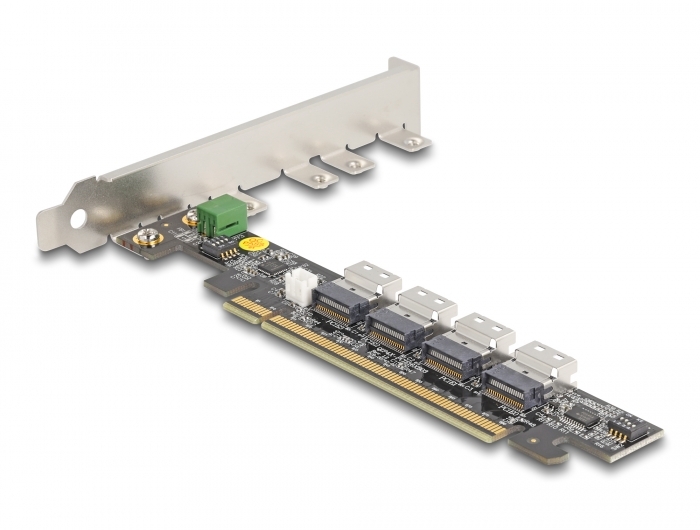

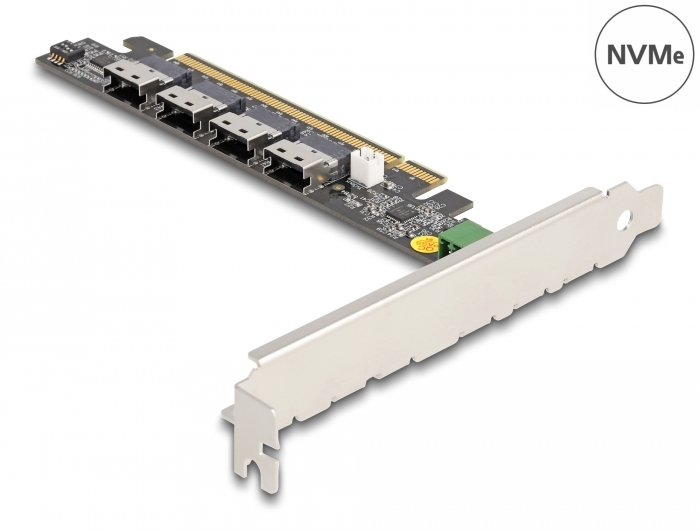

This PCI Express card by Delock expands the PC by four SFF-8654 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. The card transmits PCI Express signals using the NVMe protocol.

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first SFF-8654 port of the card can be used.

System requirements:
• Linux Kernel 3.16 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Specification:
• IOI item number: QIP4X-PCIE16XB03
• Connectors:
internal:
4 x 38 pin SFF-8654 4i female
1 x PCI Express x16, V5.0
2 x 2 pin 3.3 V power output
• Supports NVM Express (NVMe)
• Bootable

Package content:
• PCI Express card

Data sheet:
http://www.delock.de/produkt/90111/pdf.html?sprache=en
