CONCEPTRONIC PCI Express Card 2-Port M.2 SSD Adapter

Conceptronic

EMRICK04B

New

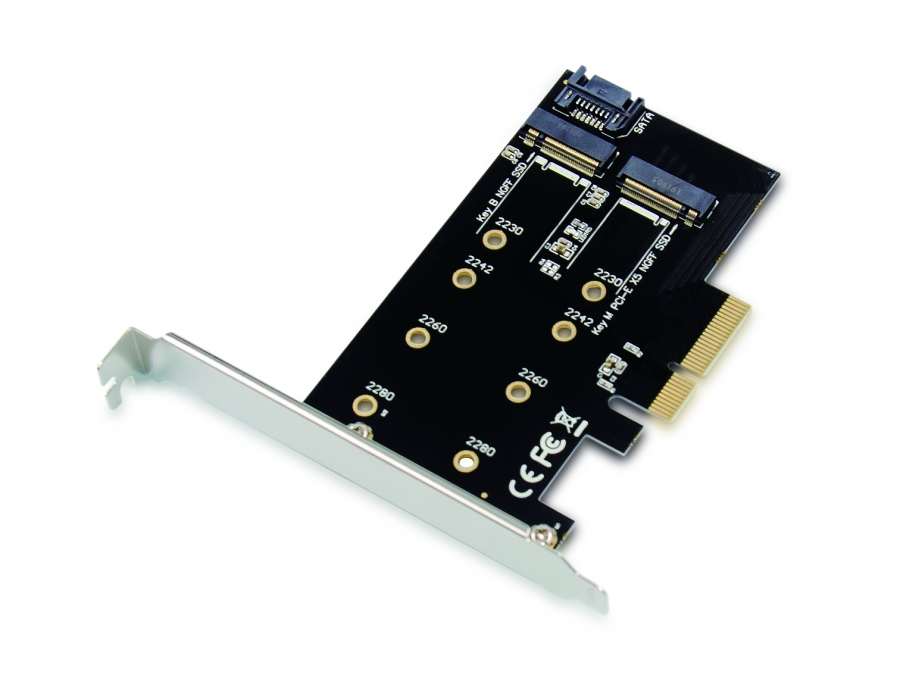

This 2-in-1 M.2 SSD PCIe Adapter is a multi-functional NVMe conversion card, which can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with a SATA cable. It also features ultra-fast PCI Express 3.0 X4 lanes, transmitting bandwidth up to 32GT/S, as well as Serial ATA v3.0 to transmit at speeds up to 6Gbps. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.

Host interfacePCIe
Output interfaceM.2
Expansion card standardPCIe 3.0
SATA revision3.0
Internal SATA ports quantity1
Number of M.2 (M) slots1
Number of M.2 (B) slots1
InternalY
Cooling typePassive
Country of originChina
ChipsetJMB585
Data transfer rate (max)6 Gbit/s
Plug and PlayY
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supportedY
Width70 mm
Depth114 mm
Height18 mm
Weight42 g

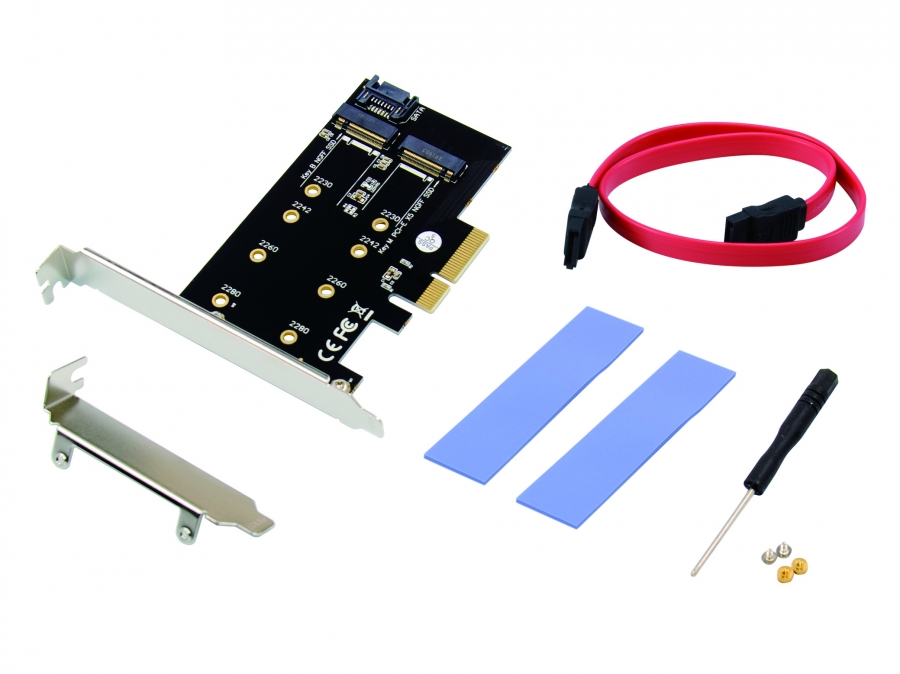

Cables includedSATA
Mounting brackets includedY
Screws includedY
Quick installation guideY
Package width132 mm
Package depth156 mm
Package height26 mm
Package weight100 g
Harmonized System (HS) code84733020
Products per master (outer) case30 pc(s)
Master (outer) case width280 mm
Master (outer) case length180 mm
Master (outer) case height415 mm
Master (outer) case gross weight3.6 kg
