Delock MiniPCIe IO PCIe full size 2 x SATA 6 Gbs

DELOCK

95233

New

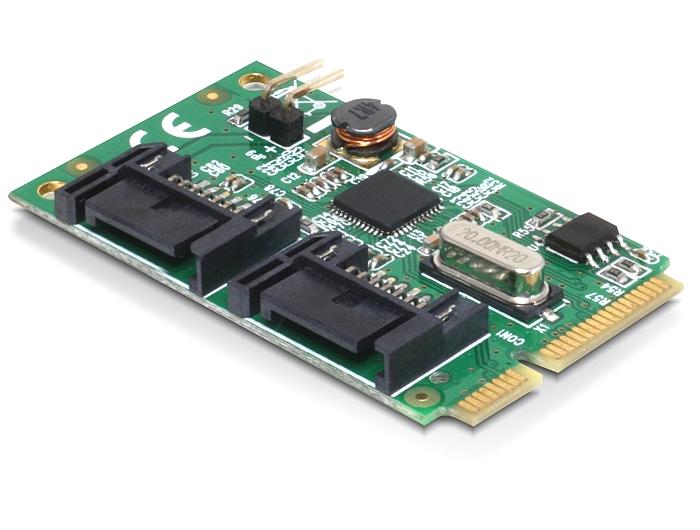

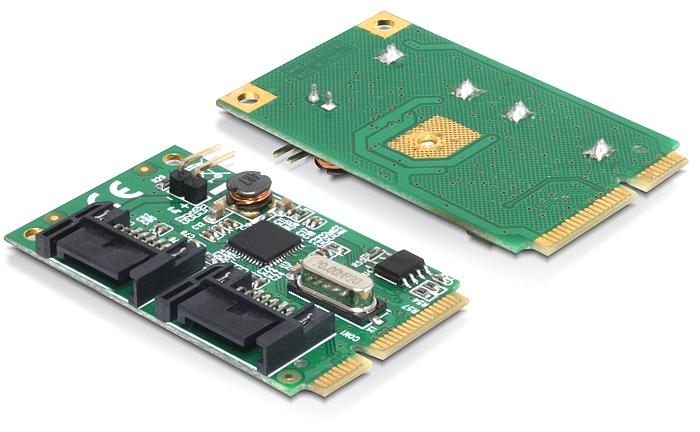

This miniPCIe module by Delock expands your system by two internal SATA 6 Gb/s interface. Thus, you can connect devices like e.g. SATA HDD, drives or similar.

More details

Description:
This miniPCIe module by Delock expands your system by two internal SATA 6 Gb/s interface. Thus, you can connect devices like e.g. SATA HDD, drives or similar.

Specification:
• Chipset: Asmedia ASM1061
• Interface: PCI Express revision 2.0
• Connector:
2 x SATA 6 Gb/s 7 pin female
1 x pin header for PWR LED for indication of hard drive accessing
• Data transfer rate:
SATA up to 6 Gb/s
PCI Express up to 5 Gb/s
• Supports hard drive with Native Command Queue (NCQ) feature
• Supports Serial ATA AHCI
• Supports SATA Port Multiplier

System requirements:
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.7
• Mainboard with a free miniPCIe slot with a PCIe interface

Package content:
• MiniPCIe module
• Driver CD
• User manual
