Delock Delock MiniPCIe IO PCIe full size 1 x Serial RS-232, 1 x Parallel

DELOCK

95138

New

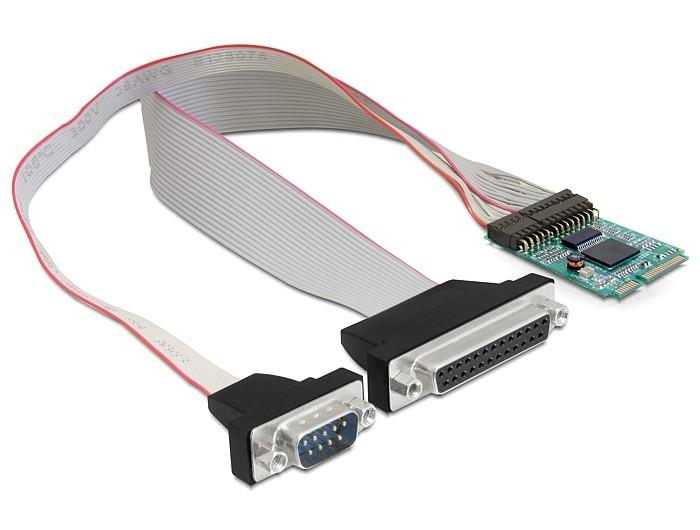

This miniPCIe adapter by Delock expands your system by one serial and one parallel interface, which you may lead out. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

More details

Description:
This miniPCIe adapter by Delock expands your system by one serial and one parallel interface, which you may lead out. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

Specification:
• Chipset: Oxford OXPCIe952
• Form factor: miniPCIe full size
• Interface: PCI Express revision 1.1a
• Connector:

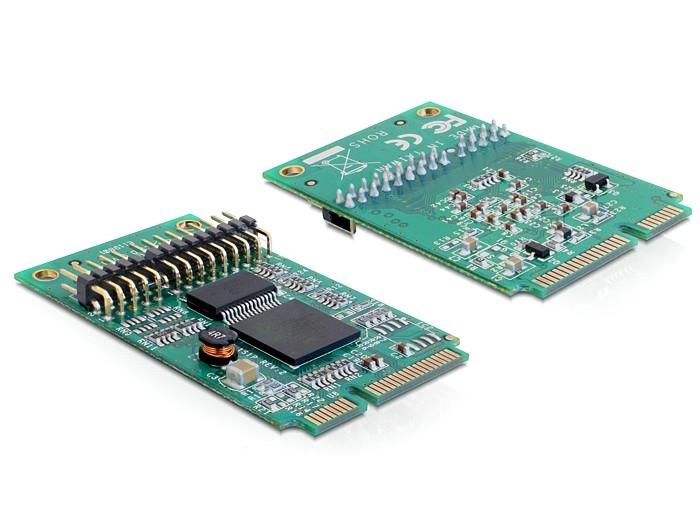

PCB:
1 x 9 pin COM port pin header
1 x 18 pin parallel port pin header

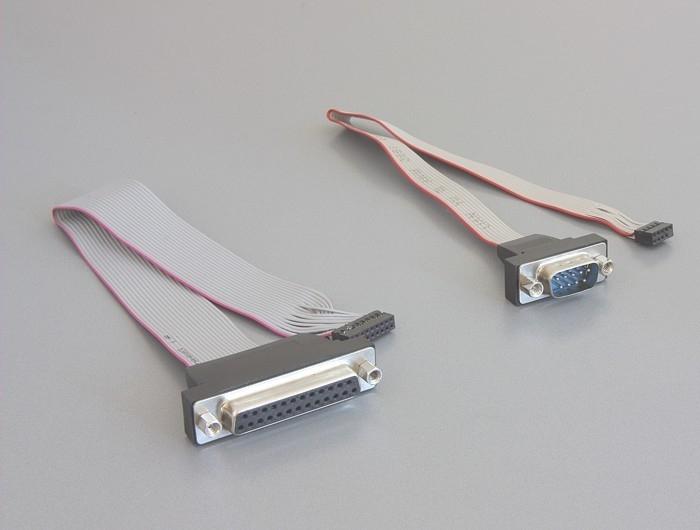

cable:
1 x serial RS-232 DB9 male with screw nuts
1 x Parallel DB25 female with screw nuts
• Data transfer rate up to 460 Kb/s
• Compatible with 16950 UART
• FIFO: 128 byte
• Mode:
serial: RS-232
parallel: SPP/EPP/ECP - IEEE1284
• Cable length with connector:
serial ca. 30 cm
Parallel ca. 28 cm
• Operating temperature: 0 °C ~ 85 °C

System requirements:
• Windows Vista/7/7-64
• Mainboard with a free miniPCIe slot with a PCIe interface

Package content:
• MiniPCIe module
• 1 serial connecting cable
• 1 parallel connecting cable
• Driver CD
• User manual
