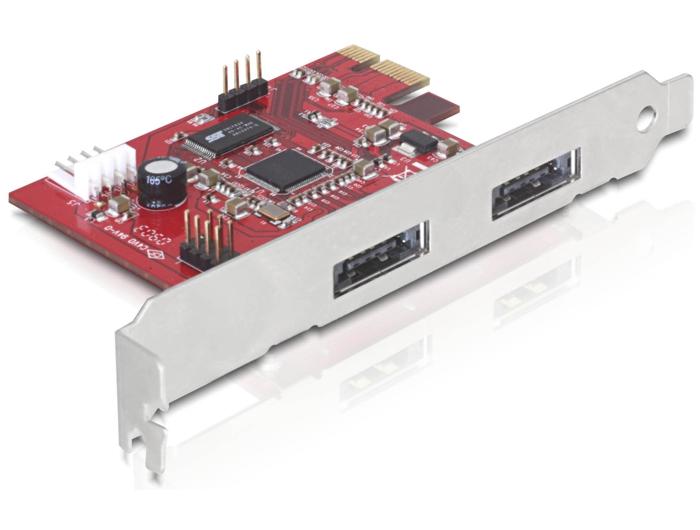

Delock PCI Express Card 2x Power Over eSATA 5V12V

DELOCK

89233

New

This PCI Express Card expands your PC by two Power Over eSATA ports. This interface enables you to connect not only Power Over eSATA devices but also standard eSATA and standard USB devices, like external enclosure, card reader etc. The combination of eSATA and USB in one port enables the power supply via USB, so that you do not require any power supply when using a 2.5″ Power Over eSATA ...

More details

Description:

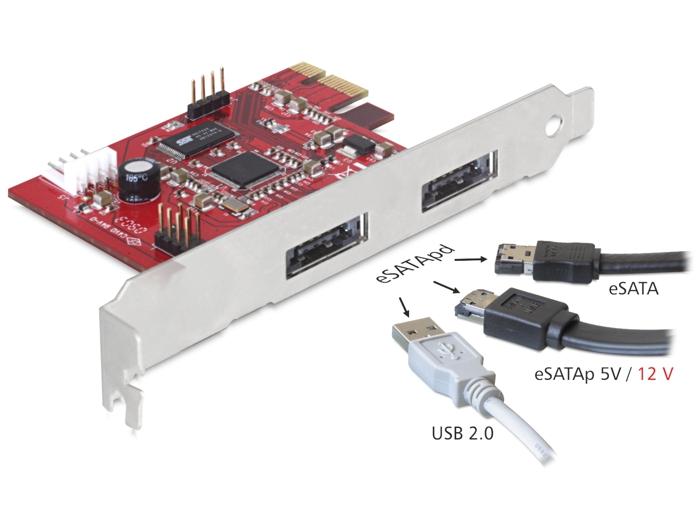

This PCI Express Card expands your PC by two Power Over eSATA ports. This interface enables you to connect not only Power Over eSATA devices but also standard eSATA and standard USB devices, like external enclosure, card reader etc. The combination of eSATA and USB in one port enables the power supply via USB, so that you do not require any power supply when using a 2.5″ Power Over eSATA enclosure. The internal 12 V connector of the PCI Express card provides you an external connection for products that require a voltage of 5 volts or 12 volts, such as a 3.5″ hard drive. Therefor you can use optional connecting cables by Delock.

Specification:
• 2 x external Power Over eSATA
• For Power Over eSATA devices, eSATA devices or USB devices
• Data transfer rate:
USB 2.0 up to 480 Mb/s
eSATA up to 3 Gb/s
• PCI Express x1 standard
• Supports PCI Express 1.1 specification
• Power supply: 5 V, 12 V
• Raid 0, 1, 5
• Supports SATA Port-multiplier (multiple SATA devices at one port)

System requirements:
• Windows Vista/Vista-64/7, Linux Kernel 2.6, Mac 10.6
• PC with one free PCI Express slot
• Mainboard mit einem freien USB Pinheader
• 12V Stromanschlusskabel 3.5“

Package content:
• PCI Express card

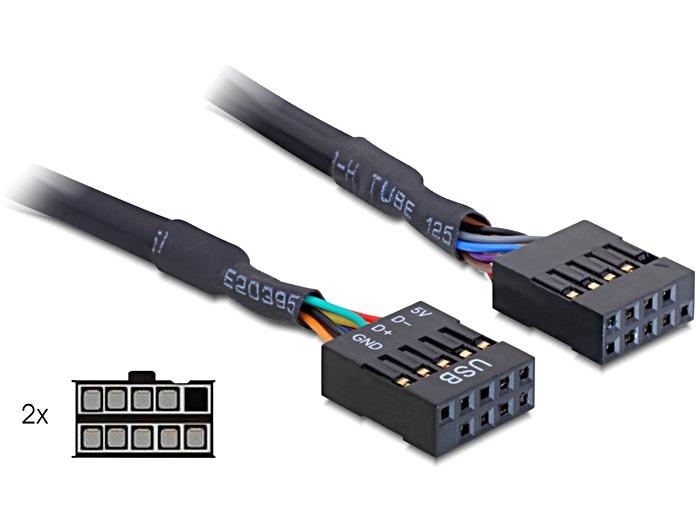

• USB cable
• Driver CD
• User manual
