Delock PCI Express Card 4 x Serial, 1 x Parallel

DELOCK

89177

New

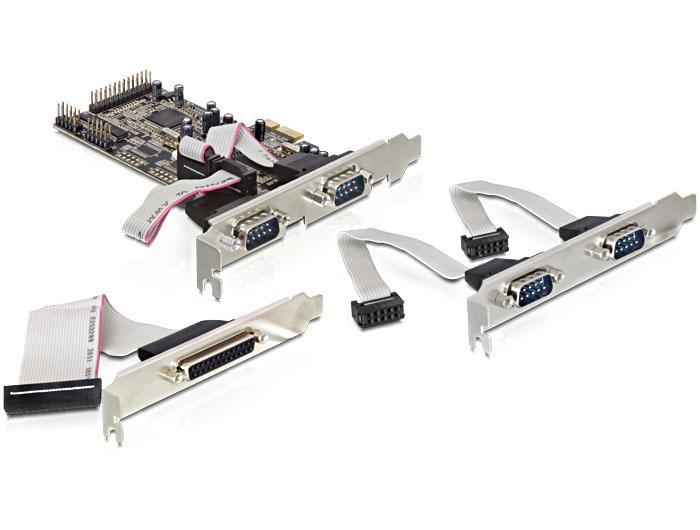

The Delock PCI Express card expands your PC by four external serial ports and one external parallel port. You can connect devices like scanner, printer, mouse etc. to the card.

More details

Description:
The Delock PCI Express card expands your PC by four external serial ports and one external parallel port. You can connect devices like scanner, printer, mouse etc. to the card.

Specification:
• Connector:
external:

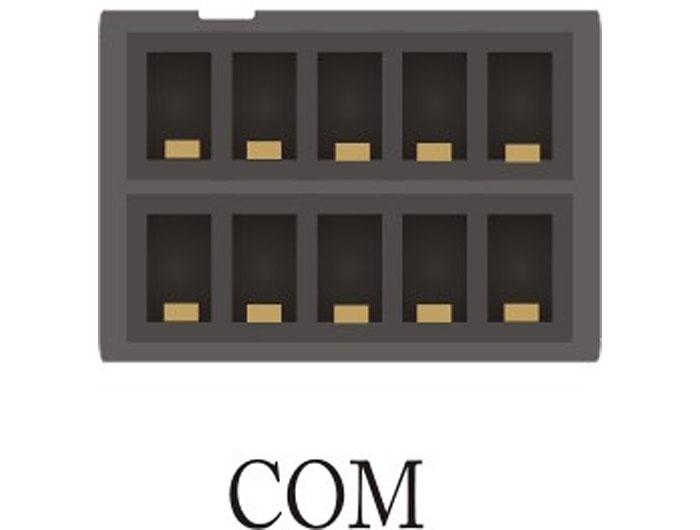

2 x serial RS-232 DB9 male

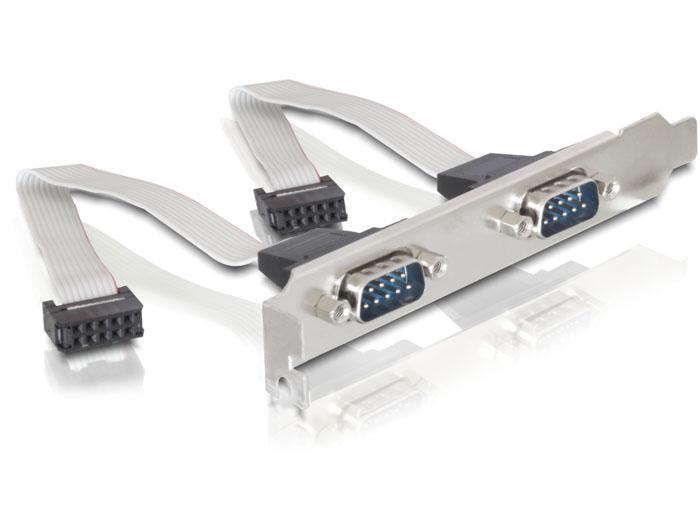

2 x serial RS-232 DB9 male (separate rear bracket)

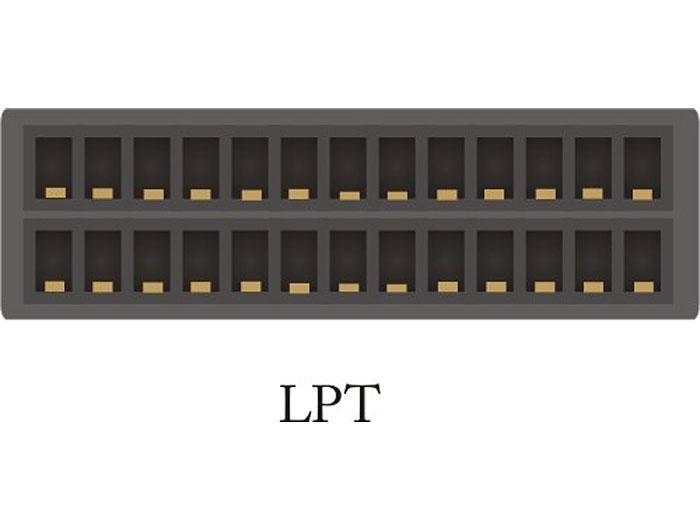

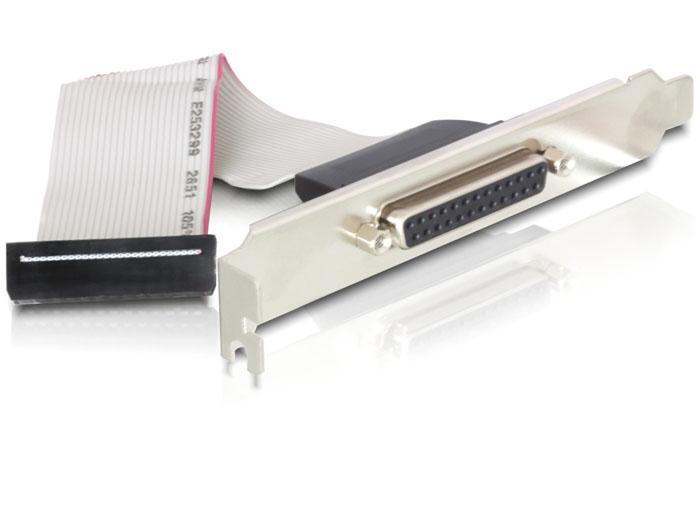

1 x Parallel DB25 female (separate rear bracket)
internal:
1 x PCI Express x1, V1.0a
• Chipset: Moschip MCS9922
• Data transfer rate:
serial up to 115.2 Kb/s
parallel up to 1.5 Mb/s
• FIFO: 16 byte
• SPP, EPP, ECP compatible to IEEE 1284
• Compatible with 16C550 UART serial port

System requirements:
• Windows Server-2003/Vista/7/8/8.1, Linux Kernel 2.6
• PC with one free PCI Express slot and two rear slot

Package content:
• PCI Express card
• 2 x rear bracket

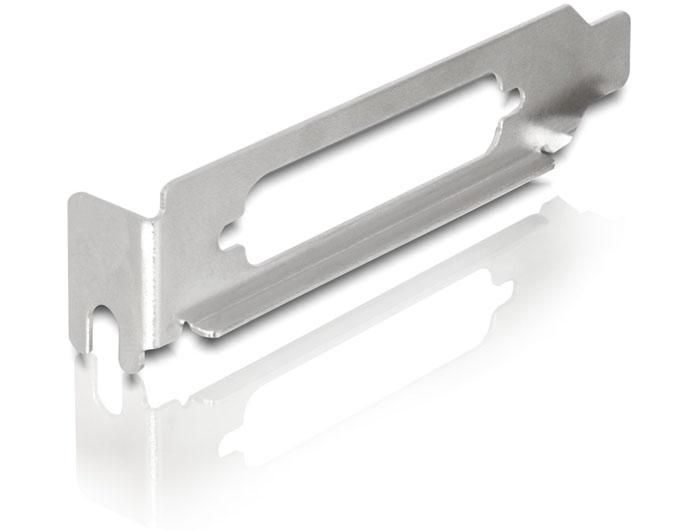

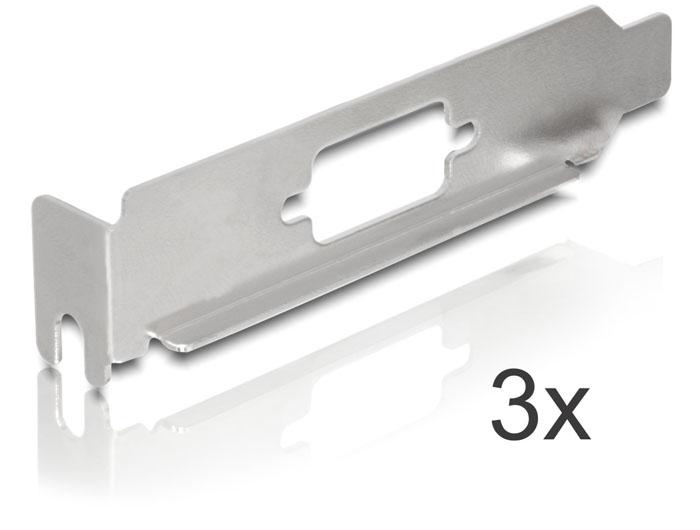

• 5 x low profile bracket
• Driver CD
• User manual
