Delock PCI Express Card 4 x Serial with voltage supply

DELOCK

89306

New

The Delock PCI Express card expands your PC by four external serial ports. The serial ports support a voltage of 5 V and 12 V, which can be set through the jumper. Thus you do not require an additional power supply for the connected devices.

More details

Description:
The Delock PCI Express card expands your PC by four external serial ports. The serial ports support a voltage of 5 V and 12 V, which can be set through the jumper. Thus you do not require an additional power supply for the connected devices.

Specification:
• Connector:
internal:
1 x PCI Express x1, V1.1
1 x power connector 4 pin Molex male
external:
1 x DB44 female

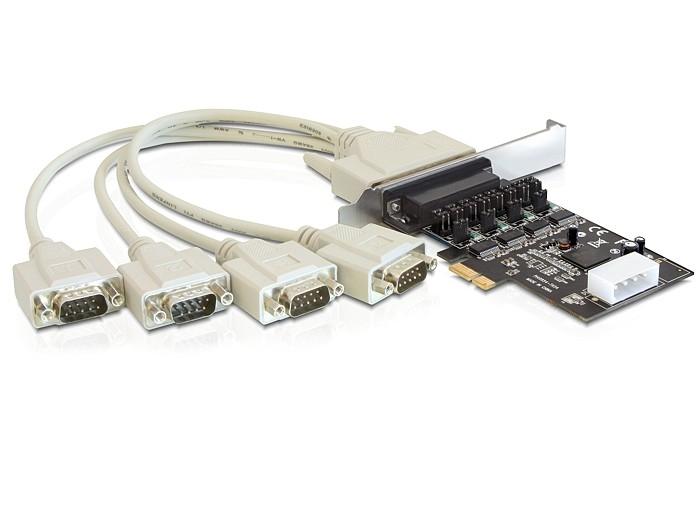

connecting cable: DB44 male > 4 x serial RS-232 DB9 male
• Chipset: Oxford OXPCIe954
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C950 UART
• FIFO: 128 byte
• ±15KV ESD protection on all signal pins
• 5 V or 12 V voltage can be set individually for each port
through the jumper (Pin 1/4/8/9)
• I/O address and IRQ assigned by BIOS

System requirements:
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8.1
• PC with one free PCI Express slot
• Power supply with a free Molex power connector

Package content:
• PCI Express card
• 1 serial connecting cable

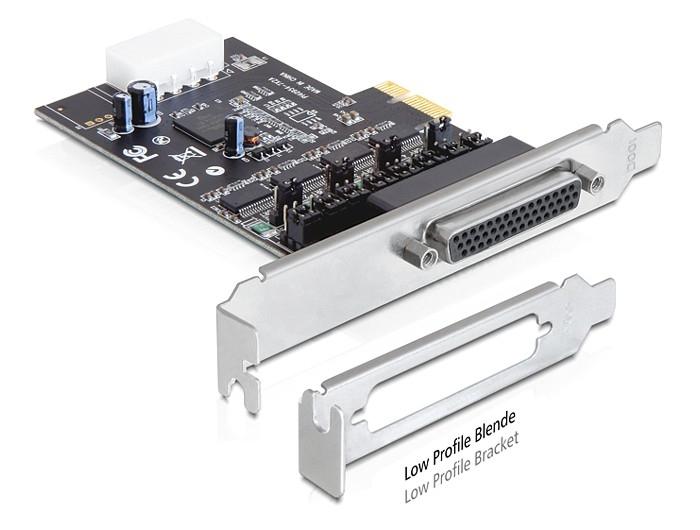

• Low profile bracket
• Driver CD
• User manual

PCI Express
