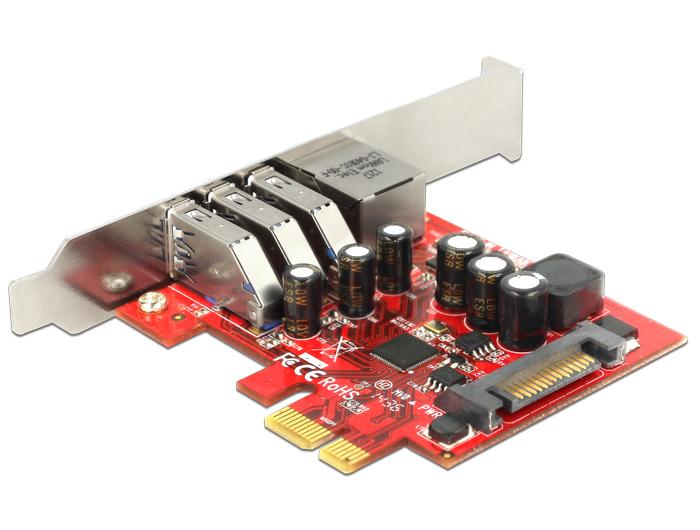

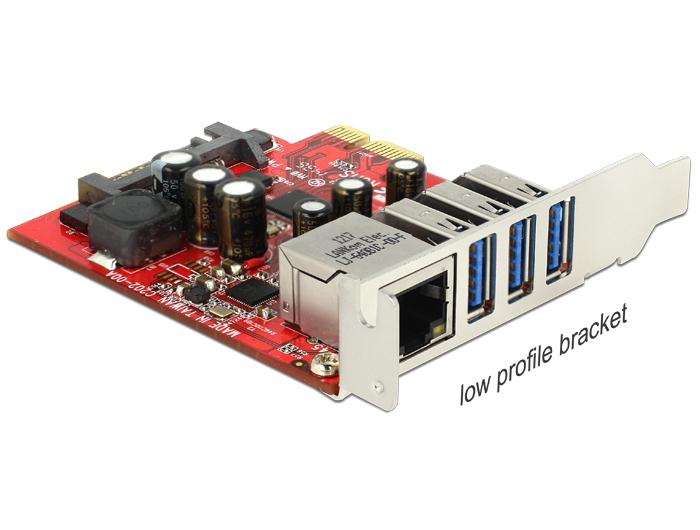

Delock PCI Express Card 3 x external USB 3.0 + 1 x external Gigabit LAN – Low Profile Form Factor

DELOCK

89382

New

The Delock PCI Express card expands your PC by three USB 3.0 ports as well as one Gigabit LAN port. You can connect USB devices like e.g. docking station, card reader, external enclosure etc. to the card. The card offers an additional network port with a data transfer rate up to 1000 Mb/s.

More details

Description:
The Delock PCI Express card expands your PC by three USB 3.0 ports as well as one Gigabit LAN port. You can connect USB devices like e.g. docking station, card reader, external enclosure etc. to the card. The card offers an additional network port with a data transfer rate up to 1000 Mb/s.

Specification:
• Connector:
external:
3 x USB 3.0 type A female
1 x Gigabit LAN RJ45 female
internal:
1 x SATA 15 pin power connector
1 x PCI Express x1, V2.0
• Chipset: NEC
• Data transfer rate:
USB 3.0 up to 5 Gb/s
Gigabit Ethernet up to 1000 Mb/s (Half/Full Duplex)
PCI Express x1 up to 2.5 Gb/s
• Supports xHCI specifications V1.0
• Compatible with IEEE 802.3, IEEE 802.3u
• Supports IEEE 802.3x full duplex flow control
• Microsoft® NDIS5, NDIS6 Checksum Offload (IP, TCP, UDP)
• Supports Jumbo Frame

System requirements:
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 2.6.31
• PC with one free PCI Express slot
• Power supply with a free SATA power connector

Package content:
• PCI Express card

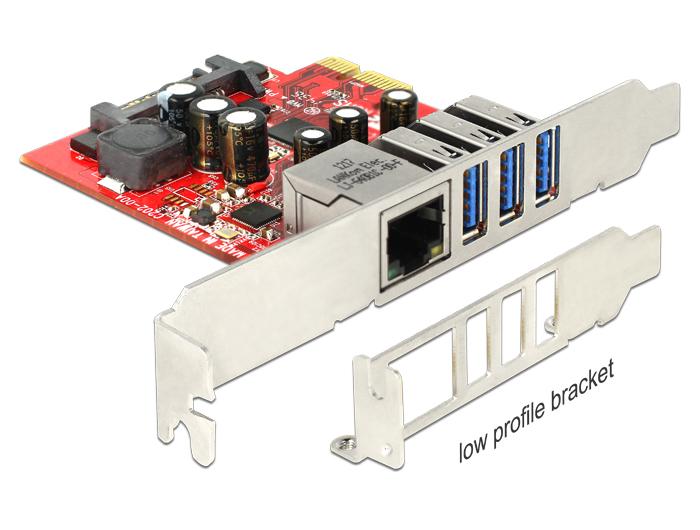

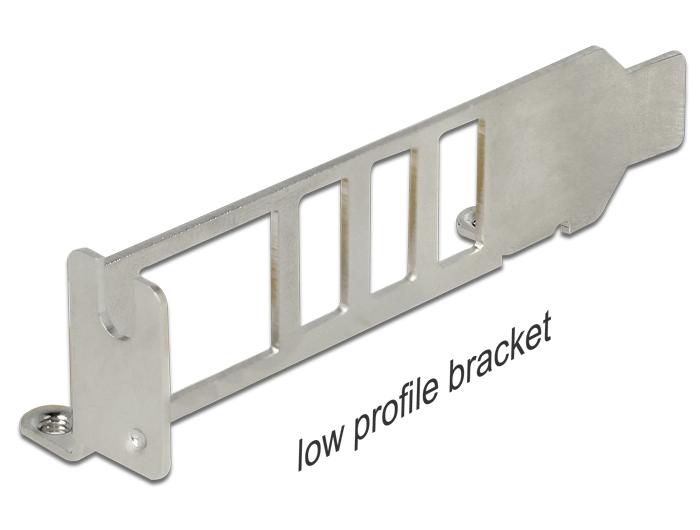

• Low profile bracket
• Driver CD
• User manual
