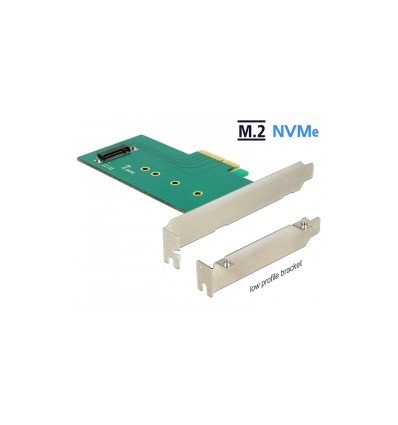

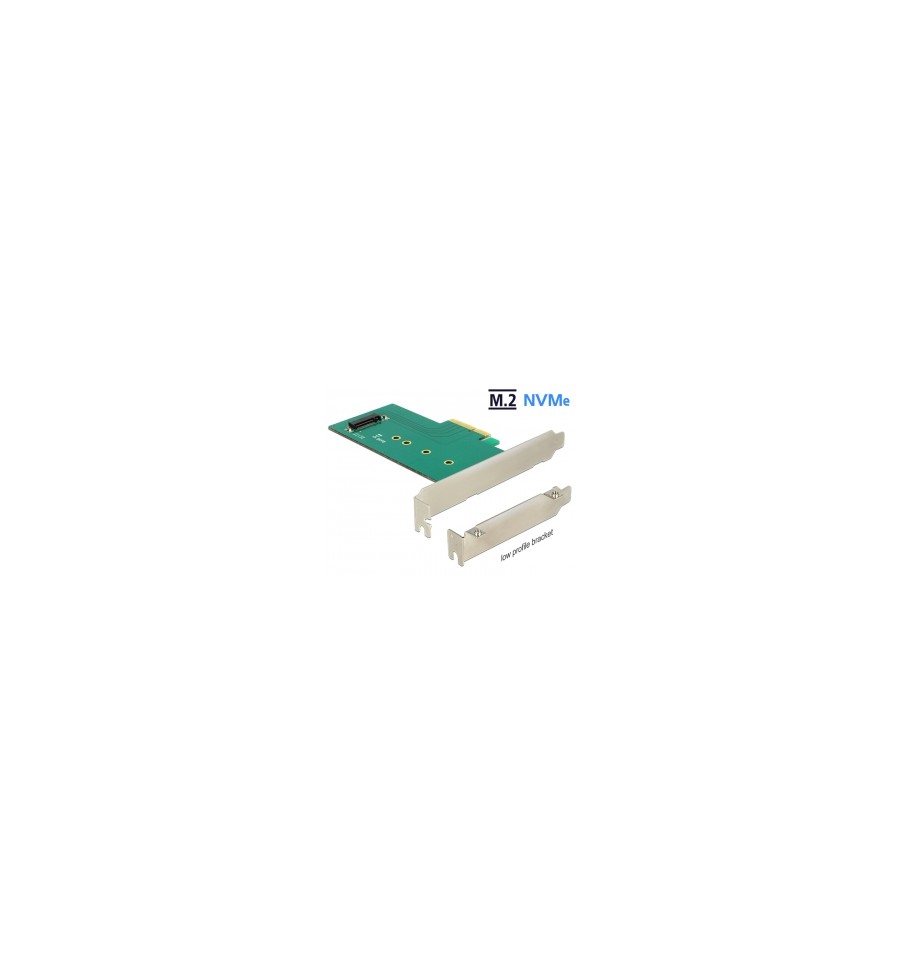

Delock PCI Express x4 Card to 1 x internal NVMe M.2 Key M 110 mm - Low Profile Form Factor

DELOCK

89472

New

Description
The Delock PCI Express card expands a PC by one M.2 slot. A M.2 SSD in format 22110, 2280, 2260, 2242 and 2230 can be connected.

More details

Description
The Delock PCI Express card expands a PC by one M.2 slot. A M.2 SSD in format 22110, 2280, 2260, 2242 and 2230 can be connected.

Specification
• Connector:
  internal:
    1 x 67 pin M.2 key M slot
    1 x PCI Express x4, V3.0
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M
  based on PCIe
• Maximum height of the components on the module: 1.5 mm application of double-sided
  assembled modules supported
• Data transfer rate up to 39 Gbps
• Supports NVM Express (NVMe)

System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.19
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content
• PCI Express card
• Low profile bracket
• 1 x fixing screw
• User manual

Package
• Box
