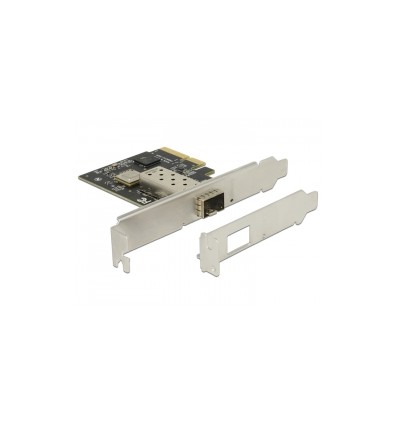

Delock PCI Express Card - 1 x 10 Gigabit LAN SFP+

DELOCK

89475

New

Description
The Delock PCI Express network card provides a connection for an SFP+ module with a transfer rate of 10 Gbps. The SFP slot accepts an optional 10 Gigabit SFP+ module to connect a PC via a fiber optic cable to the network.

More details

Description
The Delock PCI Express network card provides a connection for an SFP+ module with a transfer rate of 10 Gbps. The SFP slot accepts an optional 10 Gigabit SFP+ module to connect a PC via a fiber optic cable to the network.

Specification
• Connector:
  external: 1 x SFP Slot for a 10 Gigabit SFP+ module (not included)
  internal: 1 x PCI Express x4, V2.0
• Chipset: Tehuti TN4010
• Data transfer rate:
  10 Gigabit up to 10 Gbps
  PCI Express x4 up to 20 Gbps
• Supports IEEE 802.3az (EEE)
• Supports 16k Jumbo frames
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3ad Link Aggregation

System requirements
• Windows Server-2008 R2/Server-2012/Server-2012 R2/
  7/7-64/8.1-64/10/10-64, Linux Kernel 2.6.24
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• SFP+ module with 10 Gbps

Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual

Package
• White Box

PCI Express
