PCI Express Card 1 x 10 Gigabit LAN RJ45

DELOCK

89521

New

The Delock PCI Express card offers a network port with a data transfer rate up to 10 Gbps with conventional Cat.6 or Cat.6A copper cables.

More details

Description:
The Delock PCI Express card offers a network port with a data transfer rate up to 10 Gbps with conventional Cat.6 or Cat.6A copper cables.

Specification:
• Connector:
external: 1 x 10 Gigabit LAN RJ45 female
internal: 1 x PCI Express x4, V3.0
• Chipset: Intel X550
• Data transfer rate:
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps (only Linux)
10 Gigabit Ethernet up to 10 Gbps
PCI Express x4 up to 40 Gbps
• Supports 9k Jumbo frames
• Supports IEEE 802.1Q Virtual LAN* (VLAN)
(* currently not with Windows 10)
• Supports IEEE 802.3bq Virtual Port Aggregation

System requirements:
• Windows Server-2008 R2/Server-2012/Server-2012 R2/
7-64/8.1-64/10-64, Linux Kernel 2.6/3.x/4.x
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content:
• PCI Express card

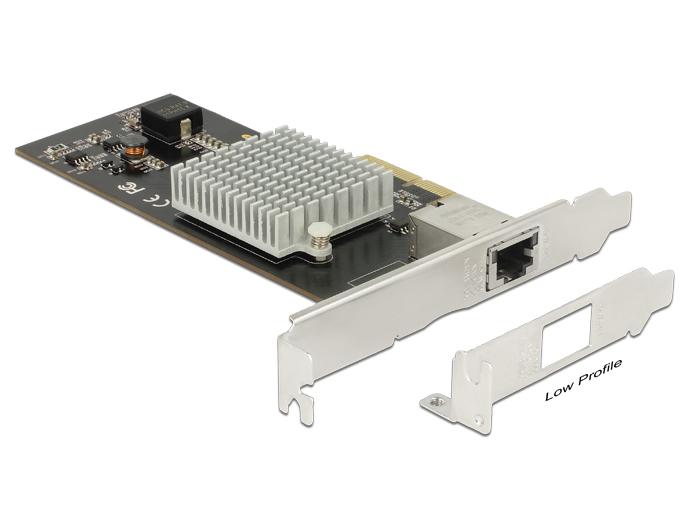

• Low profile bracket
• Driver CD
• User manual

PCI Express
