Delock MiniPCIe I/O PCIe half size 1 x Gigabit LAN

DELOCK

95239

New

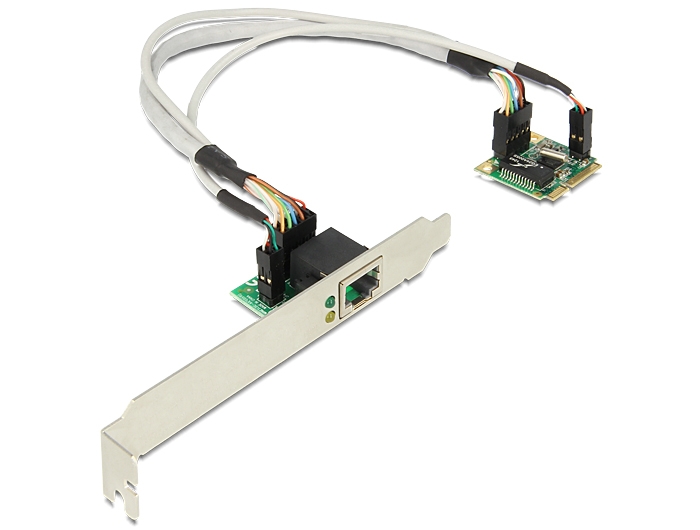

This miniPCIe adapter by Delock expands your system by one Gigabit LAN interface, which you can lead out via the slot bracket.
System requirements:
• Windows Vista/7/7-64/8/8-64/8.1/8.1-64/10/10-64, Mac OS 10.7, Linux Kernel 3.2
• Mainboard with a free miniPCIe slot with a PCIe interface
• PC with one free slot
Specification:
• Connector: 1 x Gigabit LAN
• Chipset: Realtek RTL8111E
• Form factor: miniPCIe half size
• Interface: PCI Express revision 1.1
• Data transfer rate up to 10/100/1000 Mbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support existing CAT-5 UTP cabling with automatic crossover detection
• Cable length: ca. 30 cm (incl. connector)
Package content:
• MiniPCIe module
• 2 connecting cable
• Gigabit LAN slot bracket
• Low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/95239/pdf.html?sprache=en
