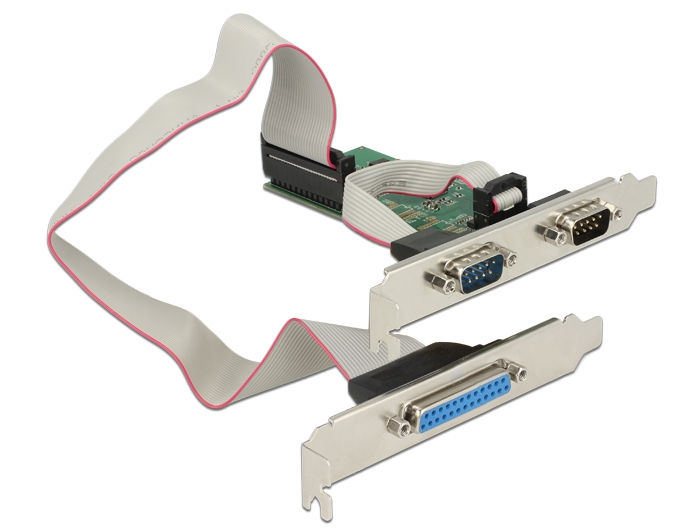

Delock PCI Express Card > 2 x Serial RS-232 + 1 x Parallel

DELOCK

89556

New

The PCI Express card by Delock expands a PC by two external serial ports as well as one external parallel port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Specification:
• Connector:
  external:
    2 x serial RS-232 DB9 male
    1 x Parallel DB25 female (separate rear bracket)
  internal:
    1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
Serial specification:
• Data transfer rate up to 230.4 Kb/s
• FIFO: 256 byte
• Compatible with 16C950 UART
Parallel specification:
• Data transfer rate up to 1.5 Mb/s
• FIFO: 16 byte
• Supports SPP, Byte and ECP mode
Package content:
• PCI Express card
• Slot bracket
• 3 x low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/89556/pdf.html?sprache=en
