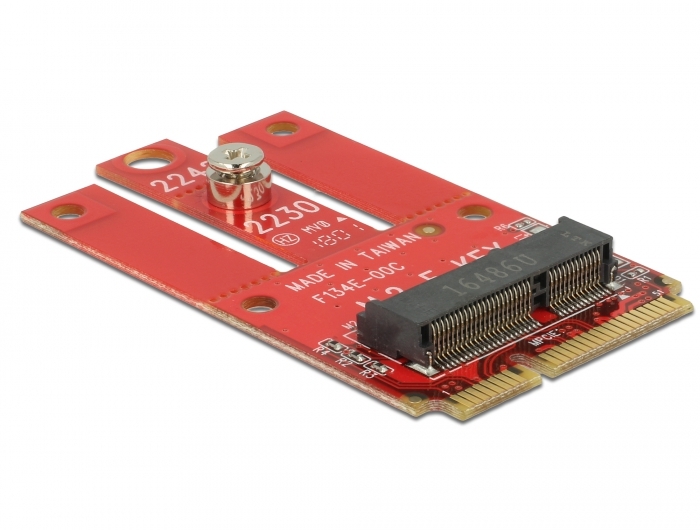

Delock Adapter Mini PCIe > M.2 Key E slot

DELOCK

63909

New

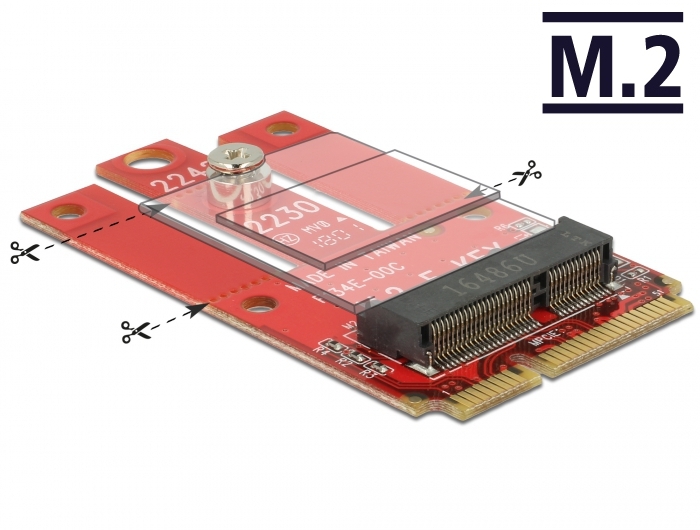

This Adapter by Delock enables the connection of an M.2 module in 2242, 2230, 3042 or 3030 format. The adapter can be installed into the system through a Mini PCIe interface. Through the predetermined breaking point, the length can be shortened from full size to half size.
System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.2 / Kernel 4.x.x
• Motherboard with a free Mini PCIe slot with a USB / PCIe interface
Specification:

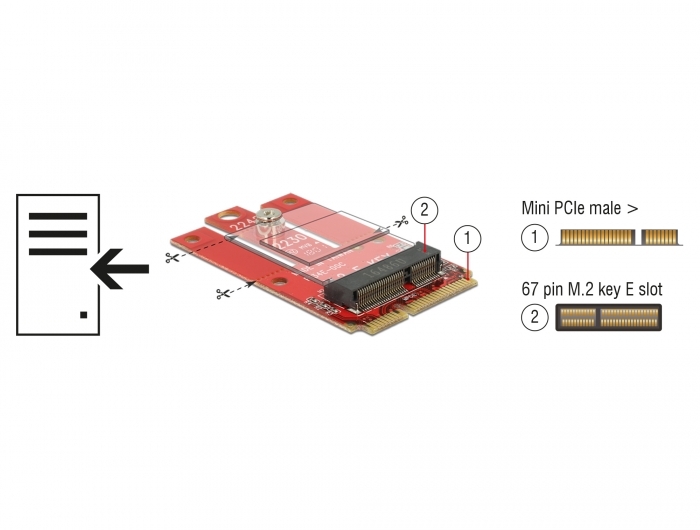

• Connectors:
  1 x Mini PCIe male >
  1 x 67 pin M.2 key E slot
• Interface: USB 2.0 / PCIe
• Form factor: Mini PCIe full size / half size
• Supports M.2 modules in format 2242, 2230, 3042 and 3030
  with key E or key A+E based on USB / PCIe
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• Dimensions (LxW): ca. 54 x 30 mm
Package content:
• Adapter

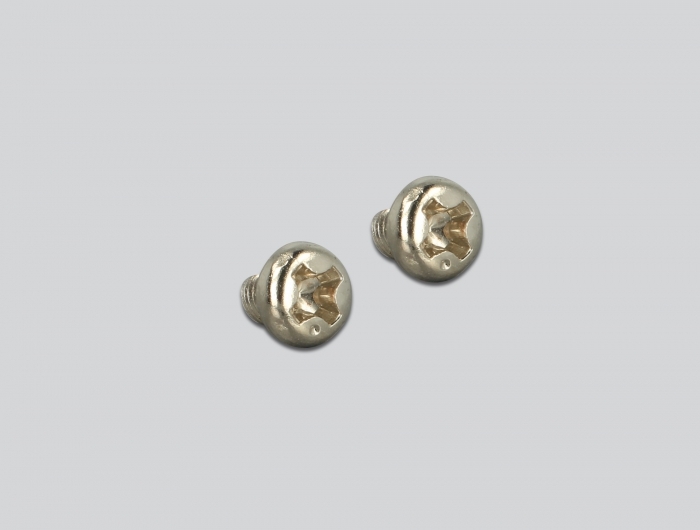

• Screws
• User manual
Data sheet:
http://www.delock.de/produkt/63909/pdf.html?sprache=en
