Delock PCI Express x16 Card to 2 x internal NVMe M.2 Key M

DELOCK

89961

New

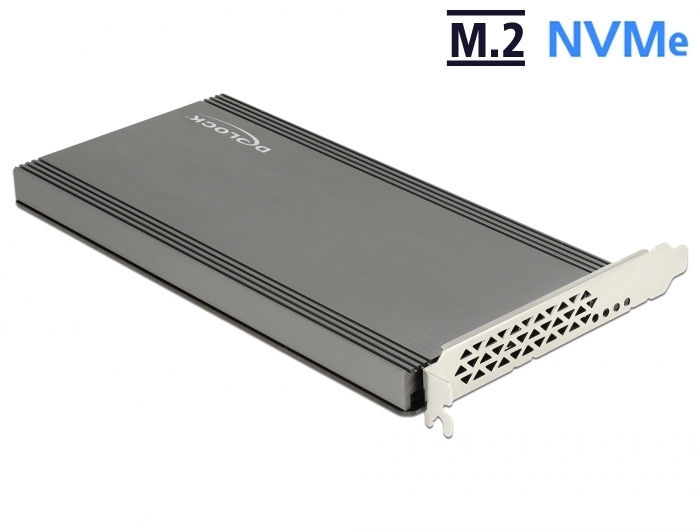

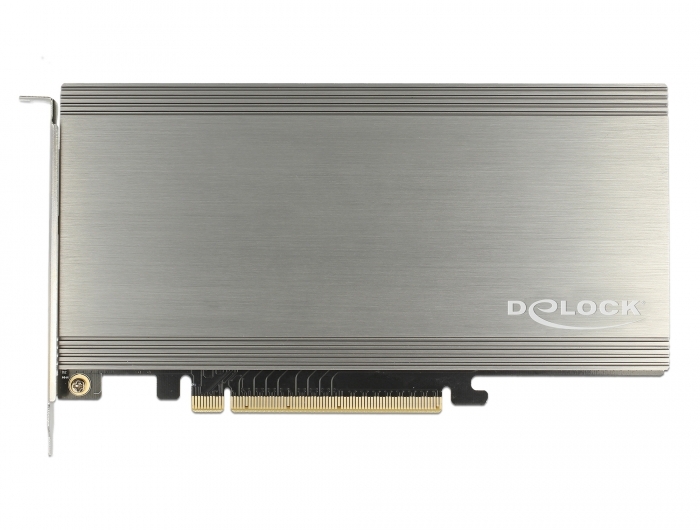

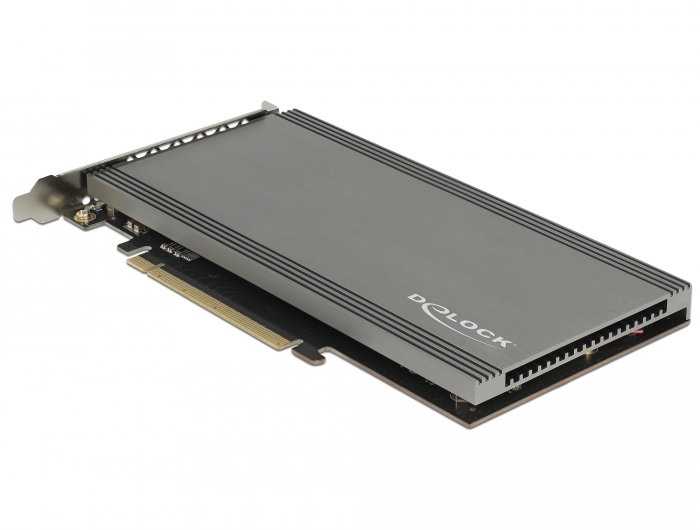

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink and the fan onboard, sufficient cooling of the M.2 modules is guaranteed.
System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
Specification:
• Connectors:
  internal:
  2 x 67 pin M.2 key M slot
  1 x PCI Express x16, V3.0
• Chipset: Asmedia ASM2824
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
  or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
  application of double-sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable (one slot)

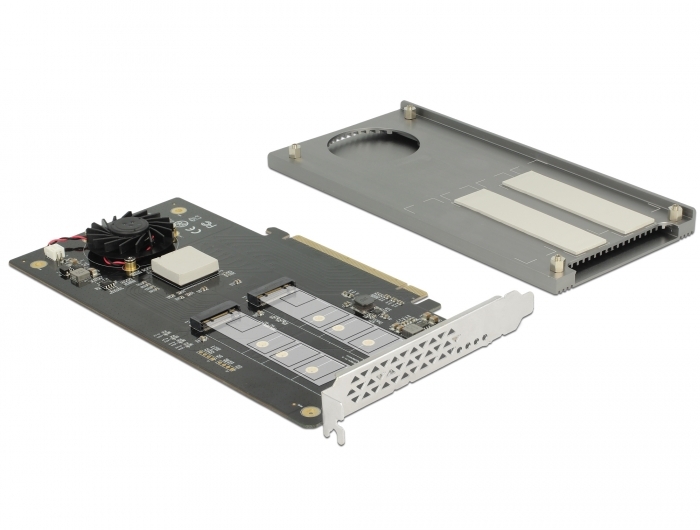

• 1 x 40 mm fan for active cooling of the M.2 modules
• 1 x heat sink
• 2 x LED indicator
• Dimensions heat sink (LxWxH): ca. 202 x 95 x 8 mm
Package content:
• PCI Express card with fan
• Heat sink

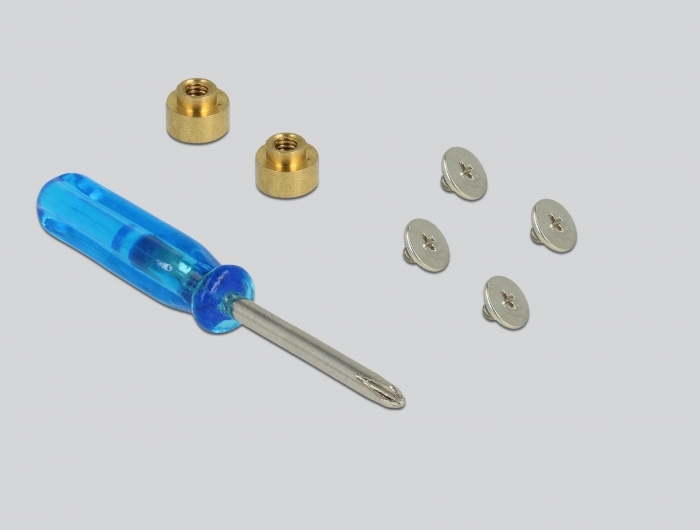

• M.2 Mounting material
• Screwdriver
• 3 x self-adhesive thermal pad
• User manual
Data sheet:
http://www.delock.de/produkt/89961/pdf.html?sprache=en
