Delock PCI Express x16 Card to 1 x NVMe M.2 Key M for Server

DELOCK

90300

New

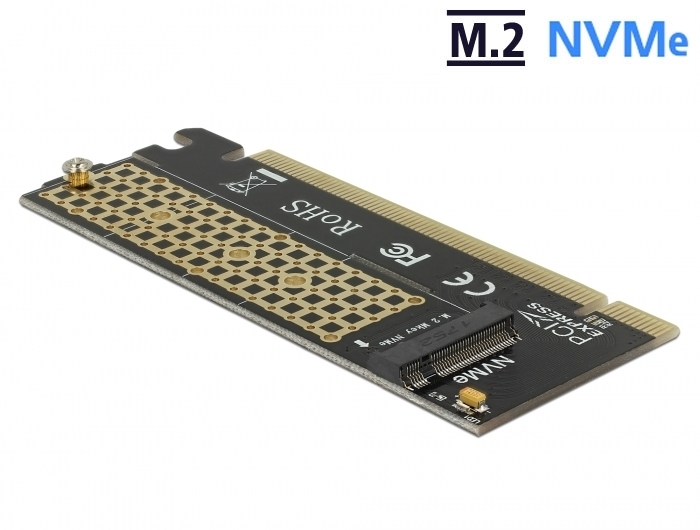

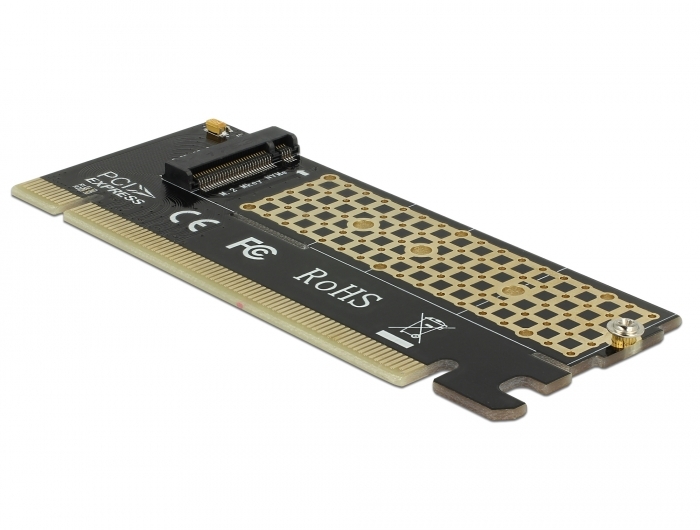

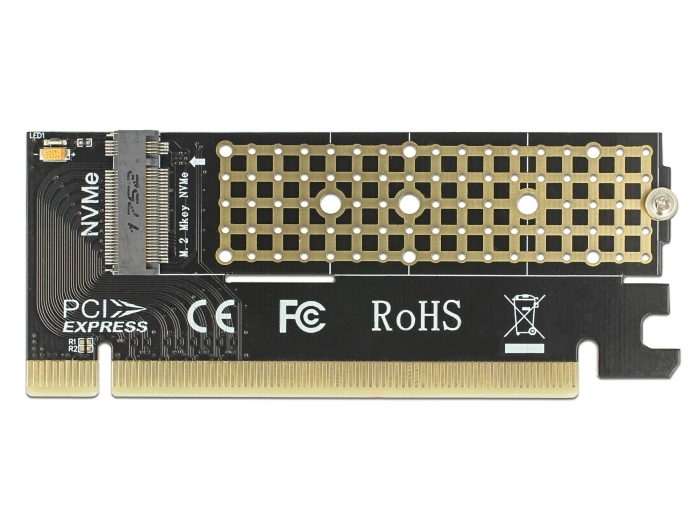

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. If the card will be installed in the PC, the slot bracket does not have to be removed. Due to the small height, the card can also fit into for servers with one unit height (1U).
System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
Specification:
• Connectors:
  1 x 67 pin M.2 key M slot
  1 x PCI Express x16, V3.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230
  with key M or key B+M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• 1 x LED indicator
• Holes in the PCB for cooling the SSD
• Holder for lock on PCI Express x16 slots
• Dimensions (LxWxH) without PCIe connector and lock holder: ca. 98 x 32 x 5 mm
Package content:
• PCI Express card

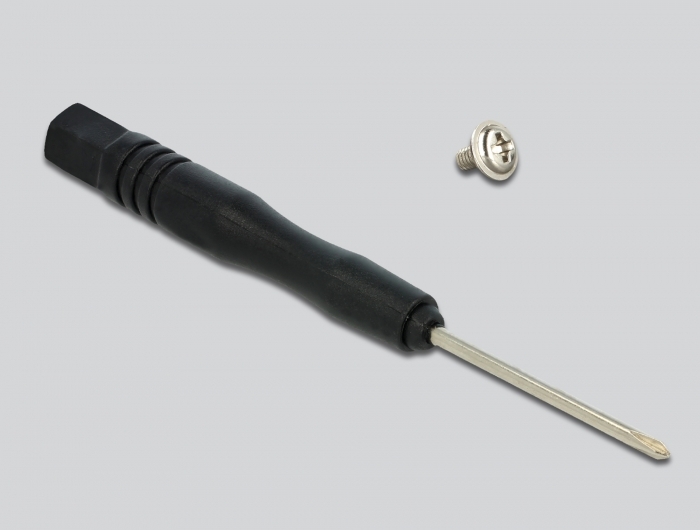

• 1 x fixing screw for M.2 module
• Screwdriver
• User manual
Data sheet:
http://www.delock.de/produkt/90300/pdf.html?sprache=en
