Delock 2 port SATA PCI Express Card with RAID

DELOCK

90393

New

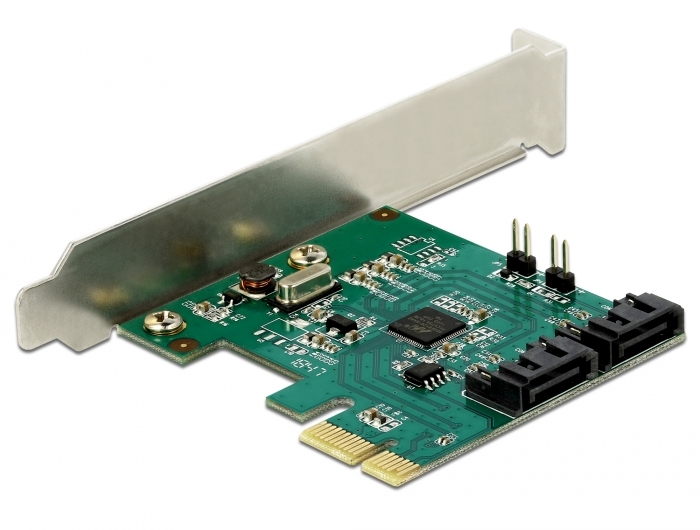

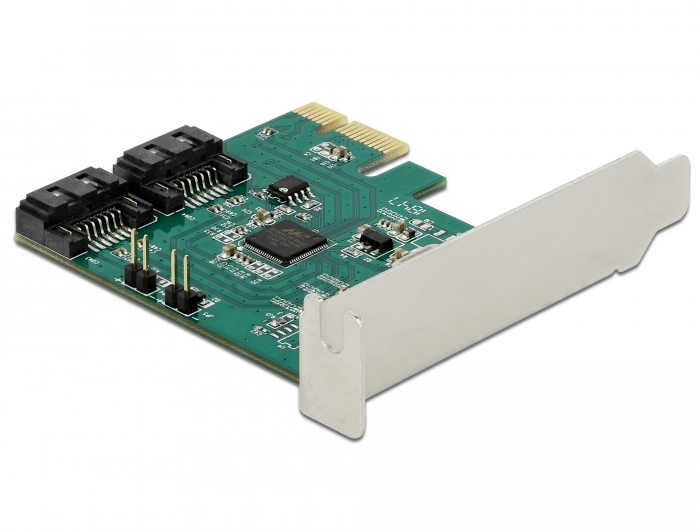

This PCI Express card by Delock expands the PC by two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.

RAID
When using more than one SATA port, there is the possibility to use different RAID modes.
System requirements:
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Specification:

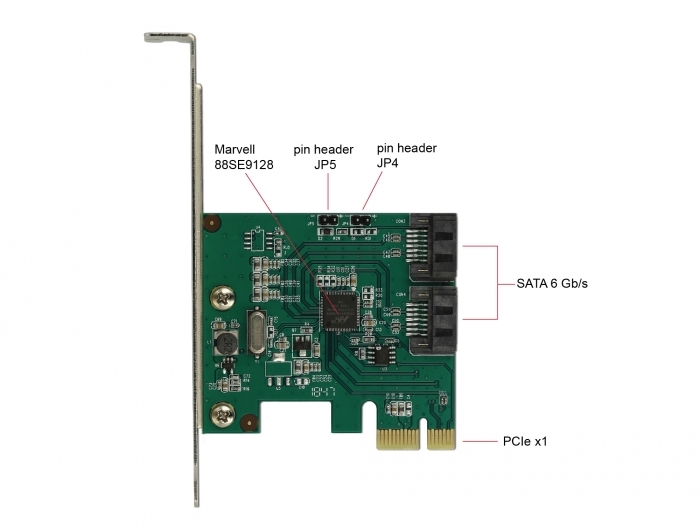

• Connectors:
  2 x SATA 6 Gb/s 7 pin plug
  1 x PCI Express x1, V2.0
  2 x 2 pin pin header for LED
• Chipset: Marvell 88SE9128
• Supports RAID 0, 1, SPAN
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
Package content:
• PCI Express card

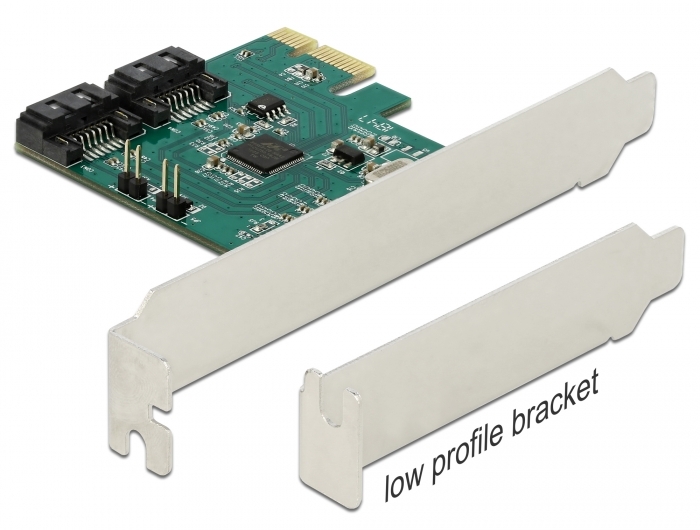

• Low profile bracket

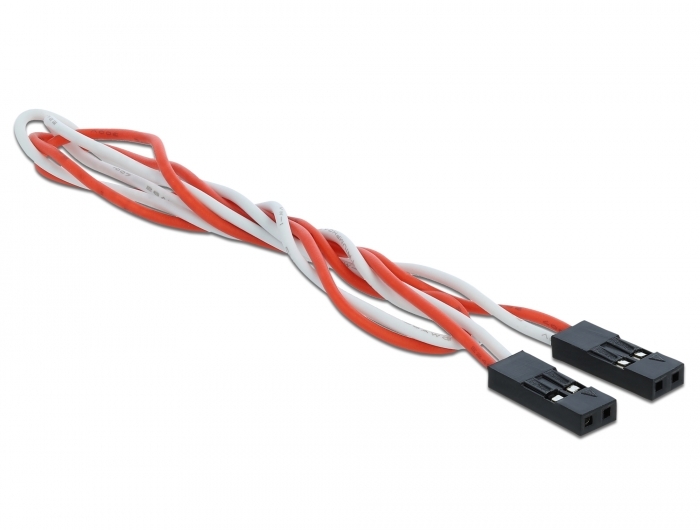

• LED cable
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/90393/pdf.html?sprache=en

PCI Express
