Delock PCI Express x4 Card to 2 x external SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female

Reference 90397

Condition: New

More info

This PCI Express card by Delock expands the PC by two external USB 3.1 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on both ports when used simultaneously.

System requirements:
• Linux Kernel 4.6.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connectors:
  external:
  2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
  internal:
  1 x SATA 15 pin power connector
  1 x PCI Express x4, V3.0

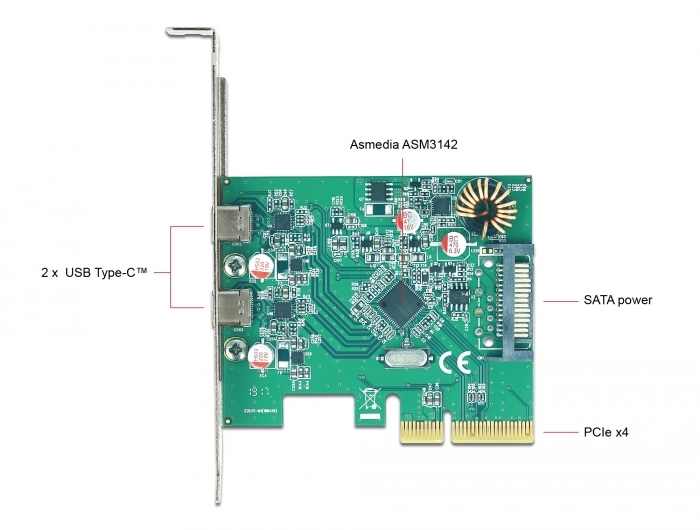

• Chipset: Asmedia ASM3142
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via SATA power connector
• Electrical power per port: max. 15 watt (5 V / 3 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs

Package content:
• PCI Express card SuperSpeed USB 10 Gbps

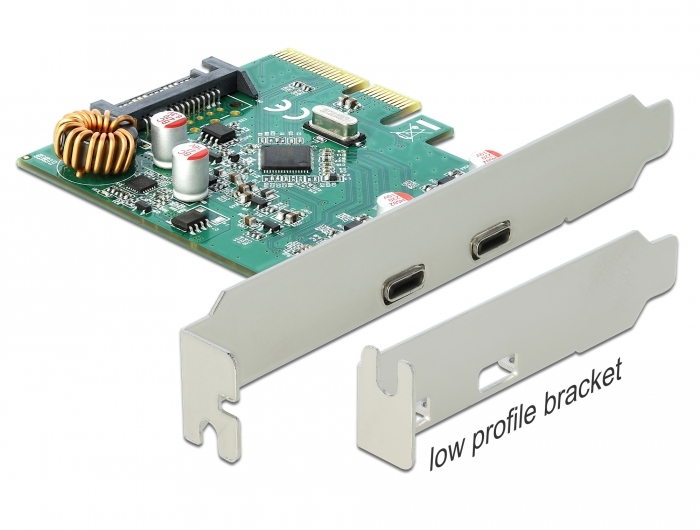

• Low profile bracket
• Driver CD
• User manual
