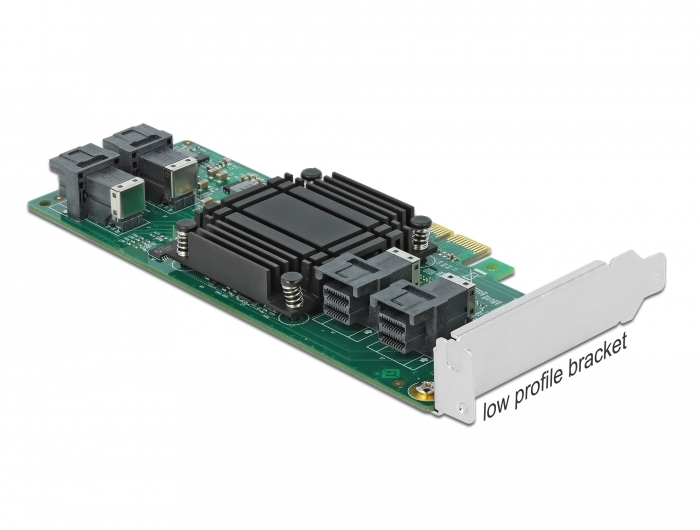

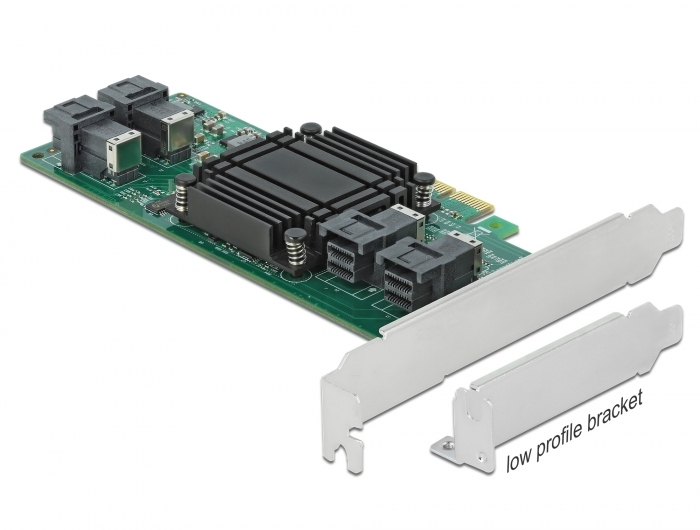

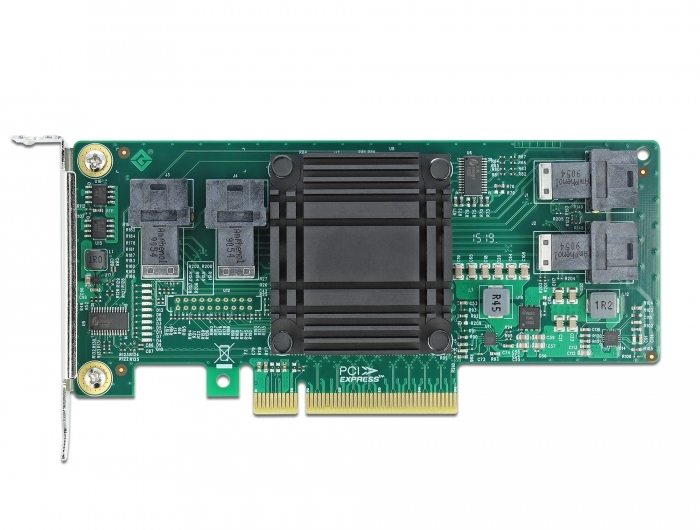

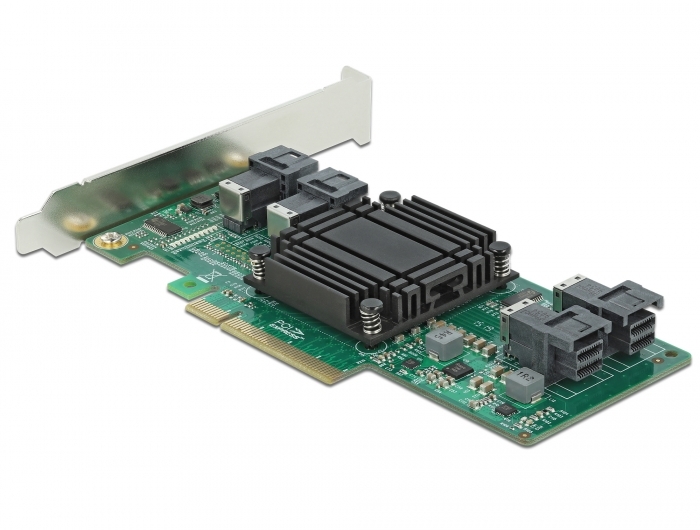

Delock PCI Express x8 Card to 4 x internal SFF-8643 NVMe - Low Profile Form Factor

DELOCK

90439

New

This PCI Express card by Delock expands the PC by four SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.
System requirements:
• Linux Kernel 4.6.4 or above
• Windows Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot
Specification:
• Connectors:
  4 x SFF-8643 female
  1 x PCI Express x8, V3.0
• Chipset: Broadcom PLX8724
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• 10 x LED indicator
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
Package content:
• PCI Express card
• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/90439/pdf.html?sprache=en
