Delock PCI Express x8 Card to 2 x internal SFF-8643 NVMe - Low Profile Form Factor

Reference 90438

Condition: New

More info

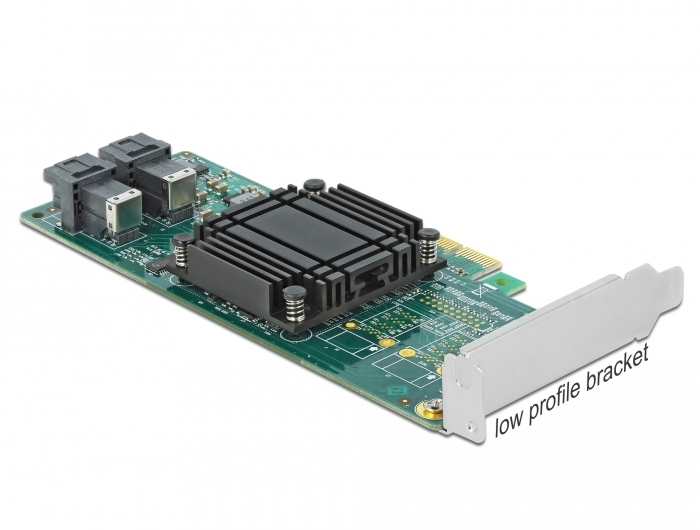

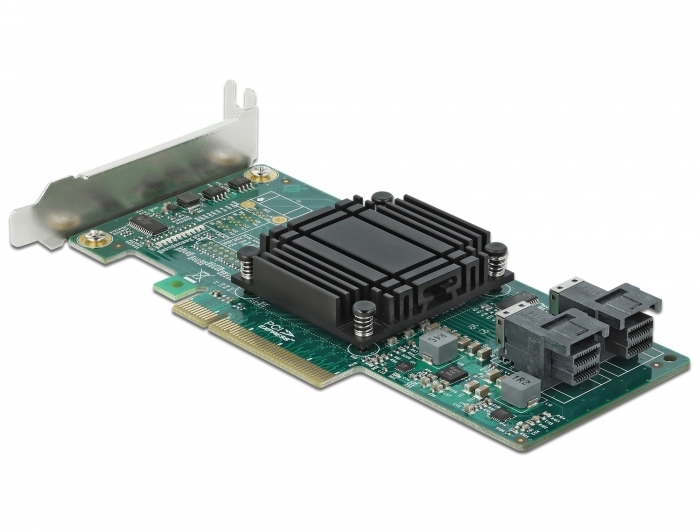

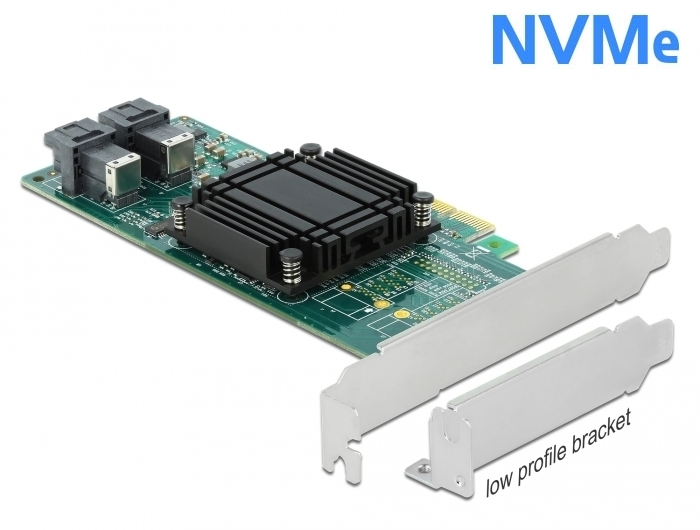

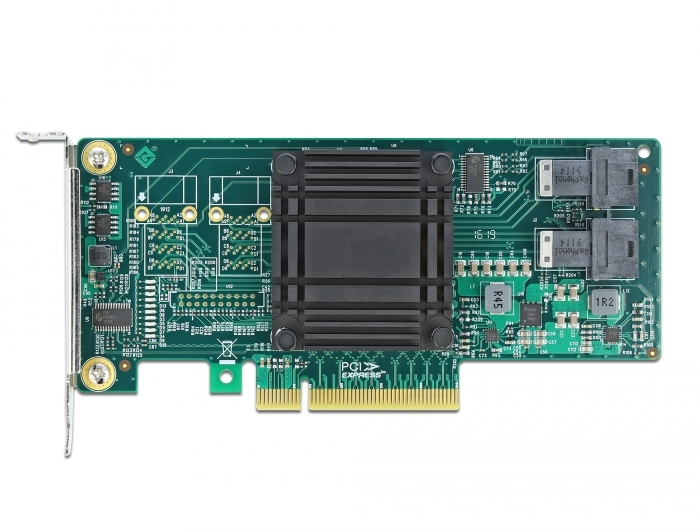

This PCI Express card by Delock expands the PC by two SFF-8643 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable.

System requirements:
• Linux Kernel 4.6.4 or above
• Windows Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot

Specification:
• Connectors:
2 x SFF-8643 female
1 x PCI Express x8, V3.0
• Chipset: Broadcom PLX8724
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• 10 x LED indicator
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C

Package content:
• PCI Express card
• Low profile bracket
• User manual

Data sheet:
http://www.delock.de/produkt/90438/pdf.html?sprache=en
