Delock PCI Express x16 Card to 4 x internal SFF-8654 4i NVMe - Bifurcation

DELOCK

89030

New

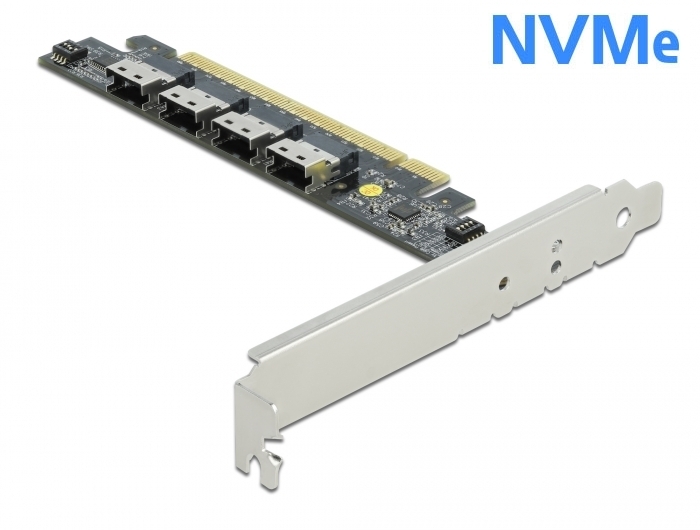

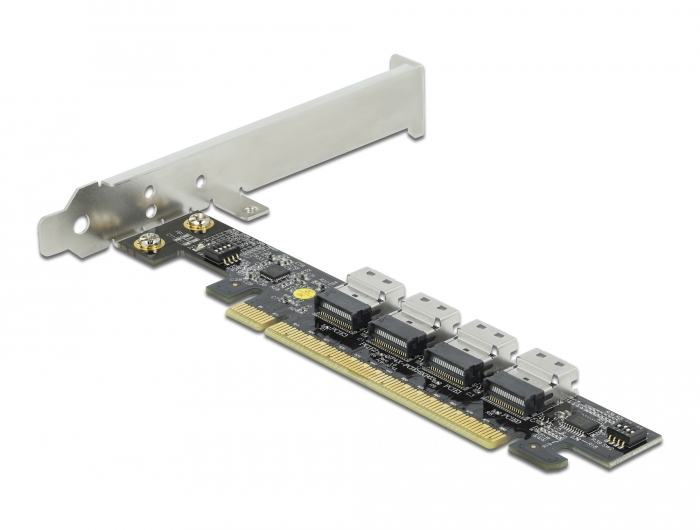

This PCI Express card by Delock expands the PC by four SFF-8654 interfaces. SSDs with e.g. U.2 interface can be connected to these ports by using an optional cable. The card transmits PCI Express signals using the NVMe protocol.

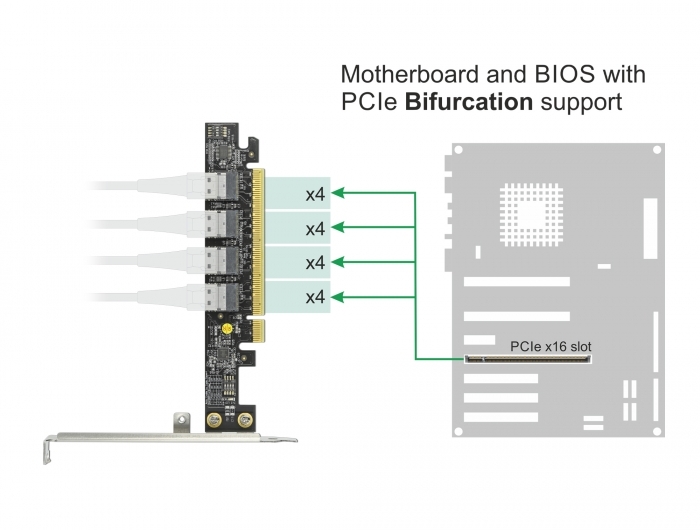

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.
System requirements:
• Linux Kernel 3.16 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Specification:
• IOI item number: QIP4X-PCIE16XB03

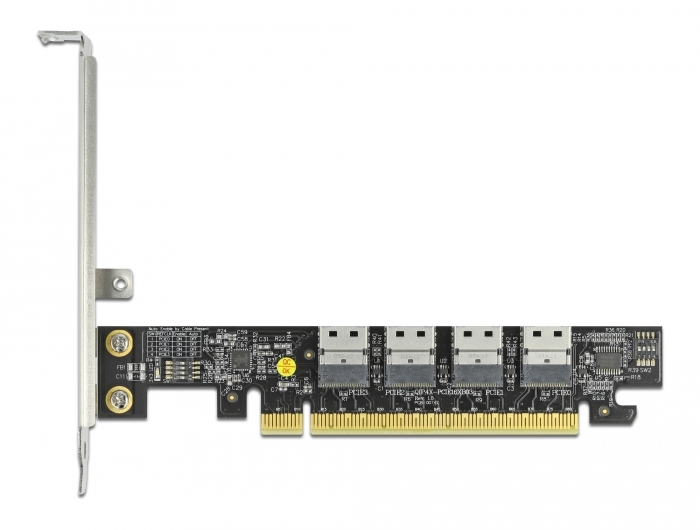

• Connectors:
  internal:
  4 x 38 pin SFF-8654 4i female
  1 x PCI Express x16, V4.0
• Supports NVM Express (NVMe)
• 1 x LED indicator
• Bootable
Package content:
• PCI Express card
Data sheet:
http://www.tragant.de/produkt/89030/pdf.html?sprache=en
